Tout Terrain

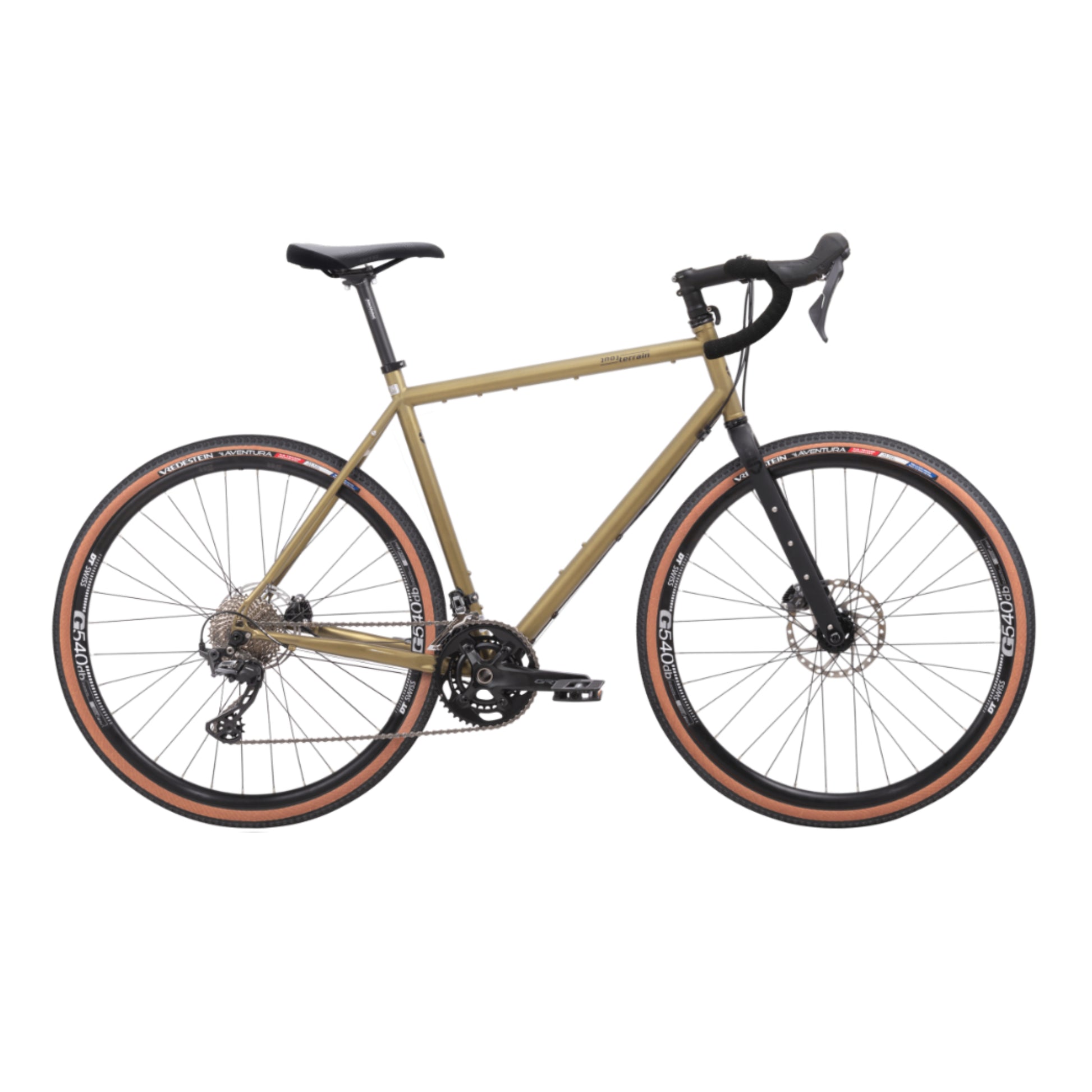

Vasco GT 28 Select 2.4
Vasco GT 28 Select 2.4
Regular price
$3,903.90 USD
Regular price
Sale price
$3,903.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FAST 700C ALL-ROAD RIDE
Fast acceleration with extreme versatility, the Vasco GT 28 is a performance gravel bike that can do it all. More than that, though, it is a gravel bike that wants it all. Built around a pure, steel frame and an all-road setup, the smooth-running tires (700C x 40mm) provide extra speed in the field while the performance derailleur-shifting ensures easy gear changes even on rough roads. The numerous mounting options for bags and accessories enable bikepacking tours of all kinds, making the Vasco an absolute all-road all-rounder—perfect for performance gravel on any terrain.
SPECIFICATIONS
Specifications are subject to change without prior notice.
FRAME: Vasco steel frame | Tout Terrain Stratocrom tubing
FRAME SIZES: S, M, L, XL
FRAME COLOR: Oliva Metallic Matte
FORK: Cinq Touring Fork II | carbon fork
HUB SPACING: Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle
BRAKE MOUNT TYPE: Front: Flat Mount 160-180mm | Rear: Flat Mount 160-180mm
DRIVETRAIN: Shimano GRX 2x11
CRANKSET: Shimano GRX | FC-RX600-11 | 46/30T | 172.5mm
CASETTE: Shimano 105 | CS-HG700 | 11-34T | 11s
BOTTOM BRACKET: Shimano BB-RS500 | Hollowtech II | BSA 68mm
FRONT DERAILLEUR: Shimano GRX | FD-RX810-F | 2x11
REAR DERAILLEUR: Shimano GRX | RD-RX810 | 2x11
CHAIN / BELT: Shimano CN-HG601 | 11s
GEAR SHIFTER: Shimano GRX | ST-RX600
STEERING STOP: Tout Terrain Ergo-Stop II
HEADSET: Cane Creek 10
STEM: Tout Terrain | 100mm | +/- 6°
HANDLEBAR TYPE: Tout Terrain Allroad drop bar | 440mm | 8° flare
BRAKE: Shimano GRX | BR-RX400 | Gravel Disc Brake
DISC ROTORS: Shimano SLX | SM-RT64/66 | 180mm/160mm
GRIPS: Fizik Microtex Performance bar tape
WHEEL SIZE: 28" (700C)
FRONT HUB: Tout Terrain EX-F1 | Centerlock rotor interface
REAR HUB: Tout Terrain EX-R1 - 10/11/12S | Centerlock rotor interface
TIRES: Vredestein Aventura | 700Cx44mm / 44-622
RIMSDT Swiss G540
MUDGUARD: mounting points available
SEAT POST: Tout Terrain SP1-Zero | 27.2mm
SADDLE: WTB Volt Medium
PEDALS: Tout Terrain Urban Pedal
CAPACITY (FRAME / RACK): 120 kg
BOTTLE CAGE MOUNTS: 4 (frame) + 2 (fork)
WEIGHT: ab 10,9 kg
![](https://cdn.shopify.com/s/files/1/0831/8618/8582/files/GEO_Charge_V5_small-1.jpg?v=1715101868)
S | M | L | |||
A | SEAT TUBE LENGTH (mm) | 490 | 530 | 570 | 610 |
A1 | SEAT TUBE LENGTH (mm) | 431 | 471 | 512 | 552 |
B | TOP TUBE LENGTH (mm) | 535 | 555 | 575 | 595 |
C | HEAD TUBE LENTH (mm) | 125 | 150 | 175 | 200 |
D | CHAINSTAY LENGTH (mm) | 435 | 435 | 440 | 440 |
E | WHEELBASE (mm) | 1010 | 1030 | 1045 | 1060 |
F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
G | HEAD TUBE ANGLE (*) | 71 | 71 | 71.5 | 71.5 |
H | SEAT TUBE ANGLE (*) | 73 | 73 | 72.5 | 72 |
I | STACK (mm) | 562 | 585 | 611 | 635 |
J | REACH (mm) | 363 | 376 | 382 | 389 |
K | STAND OVER CLEARANCE (mm) | 766 | 797 | 829 | 859 |
