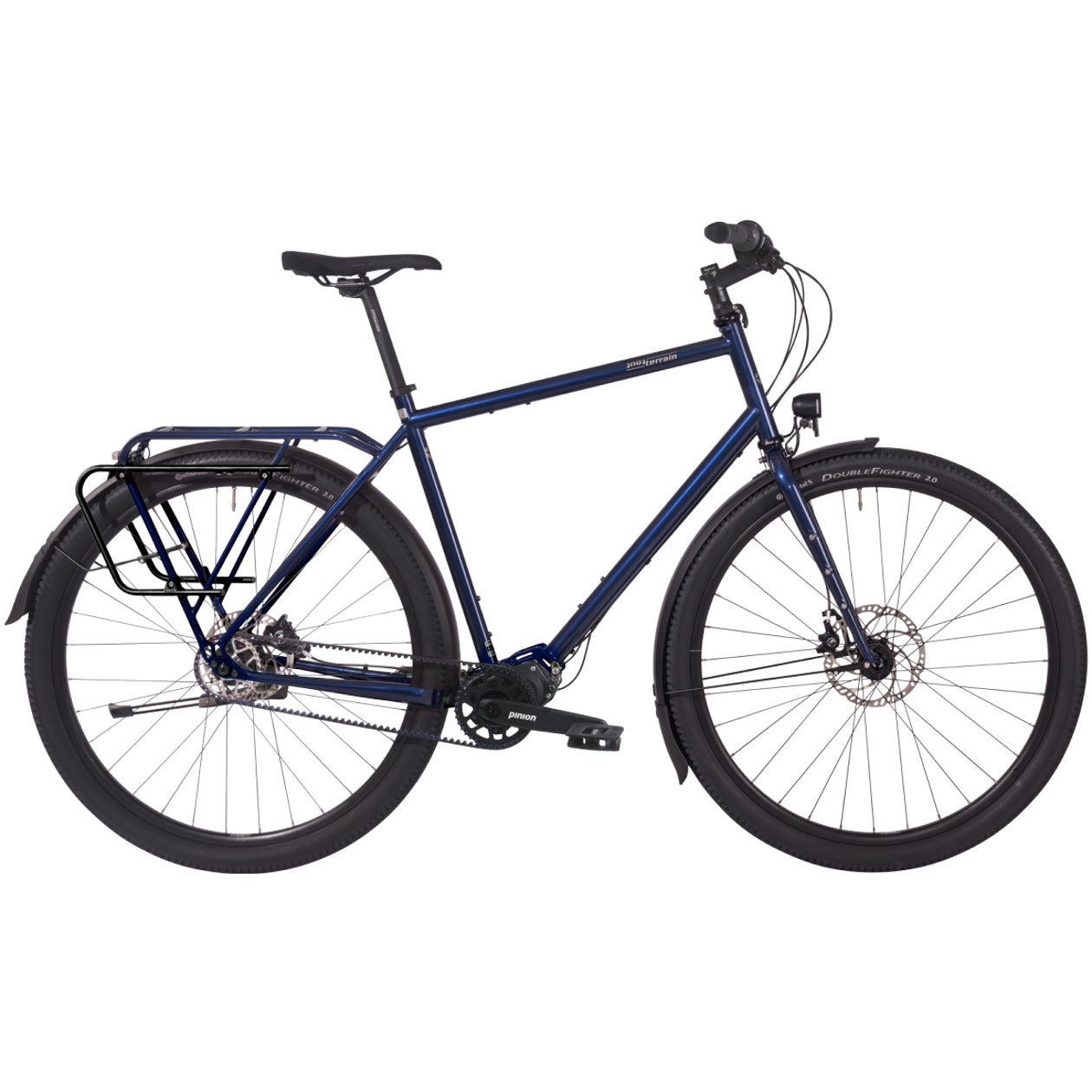

Tanami Xplore II 29 Select 6.1
Tanami Xplore II 29 Select 6.1
💳 From ~$92/mo with Shop Pay Installments — 0% APR options available.
Couldn't load pickup availability
Questions? Request a Build Consultation →
Find your size
Select your bike model to get started.
X.Over / Gravel
Expedition
Urban / Trekking
Your gender
This helps calculate the most accurate fit.
Your height
Enter your height without shoes.
Your inseam
We’ve estimated your inseam from your height. Adjust if you know your exact measurement.
Your recommended size
Recommendations are a guide. For a perfect fit, request a build consultation.
The Tanami Xplore II 29 Select 6.1 is a high-performance steel frame expedition and touring bike engineered for maximum comfort and reliability on long-distance journeys. Part of the Tout Terrain Expedition family, the Tanami is built for any challenge, from a fast-paced road trip to a leisurely gravel tour.
Key Features for World Travel:
Ultimate Reliability: Features the robust Pinion C1.12 gearbox paired with the low-maintenance Gates Carbon Drive belt drive. This sealed system offers a massive 600% gear range and superior reliability in all conditions.
Comfort & Stability: Built around a durable Tanami Xplore steel frame and equipped with large 29" (700C) wheels for smooth, comfortable rolling over every mile.
Ready to Load: Comes with the Tout Terrain Expedition Rack II and integrated trekking luggage rack, offering a high total capacity of 180kg (rider/bike/luggage) and a rack capacity of 40kg.
Integrated Components: Fully equipped for global travel with an integrated hub dynamo (Shutter PL-7), Busch + Müller IQ-XS & Line Small lighting, and full SKS Bluemels 60mm mudguards.
Stopping Power: Features powerful Magura MT4 hydraulic disc brakes with 180mm/160mm rotors for confident control even when fully loaded.
The Tanami Xplore II 29 Select 6.1 is the perfect choice for the dedicated world traveler seeking a reliable, low-maintenance touring companion.
SPECIFICATIONS
Specifications are subject to change at any time without notice.
| Brake: | Magura MT4 | Hydraulic disc brake |
|---|---|
| Cassette: | Gates Carbon Drive CDX | 32T |
| Chain / belt: | Gates Carbon Drive CDX Centertrack belt |
| Crankset: | Pinion forged | CDX:SL 39T sprocket | S/M: 170mm, L/XL: 175mm |
| Drivetrain: | Pinion C1.12 gearbox | Gates Carbon Belt Drive |
| Fork: | Tout Terrain Expedition Fork II |
| Front hub: | Shutter PL-7 hub dynamo | Centerlock rotor interface |
| Gear lever: | Pinion twist shifter |
| Grips: | Tout Terrain Ergo lock-on grips |
| Handlebar: | Tout Terrain Ergo Rise 30 | 700mm | 30mm rise | 16° backsweep |
| Headset: | Acros | EC34 / EC34 |
| Kickstand: | Atran Velo kickstand |
| Lights: | Busch + Müller IQ-XS & Line Small rear light |
| Model: | Tanami |
| Mudguard: | SKS Bluemels 60mm | Primus splash guard | black matte |
| Pedals: | Tout Terrain Urban Pedal |
| Power supply: | Cinq Plug Pure 7 |
| Rack: | Tout Terrain Expedition Rack II with EX Rails |
| Rear hub: | Tout Terrain EX-R4 - 1S | Centerlock rotor interface |
| Saddle: | WTB Volt Medium |
| Seat post: | Tout Terrain | 27,2mm |
| Steering stop: | Tout Terrain Ergo-Stop II |
| Stem: | Tout Terrain | 100mm | +/- 6° |
| Tires: | Schwalbe Marathon Almotion | 29"x2.0"/ 50-622 |
| Frame: | Tanami Xplore II steel frame | Tout Terrain Thermocrom tubing |
| Frame size: | L, M, XL |
| Frame Type: | Diamond |
| Maximum total weight: | 180 kg (frame) / 40 kg (rack) |
| Frame color: | Deep ocean blue metallic glossy |
| Brake mount type: | Front: Flat Mount 160-180mm | Rear: IS2000 |
| Rotor size (front/rear): | 180mm/160mm |
| Bottle cage mounts: | Downtube (bottom), Downtube (top), Fork Crown M6 (front light, mudguard), Fork legs (triple mount, lowrider), Seat tube, Toptube (bottom) |
| Terrain: | Allroad |
| Tire clearance: | 28"/29" x 2.0" (50mm) with mudguard |
| Wheel size: | 29" |
| Weight: | from 16,8 kg |
| Frame lock compatibility: | yes |
| Fork type: | Rigid (steel) |
| Hub spacing: | Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle |
| Kickstand mount: | KSA18 (18mm) |
| Handlebar type: | flat-bar |
| Rack type: | Frame-integrated |
| Belt tensioning system: | Tout Terrain TBA (pivotable gearbox bracket) |
| Gearing: | Front: 39T | Rear: 32T | 600% |
| Wheelset/Rims: | Ryde Andra 321 |
| M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 510 | 560 | 610 |
| A1 | SEAT TUBE LENGTH (mm) | 450 | 501 | 552 |
| B | TOP TUBE LENGTH (mm) | 575 | 595 | 615 |
| C | HEAD TUBE (mm) | 175 | 205 | 225 |
| D | CHAINSTAY LENGTH (mm) | 455 | 455 | 455 |
| E | WHEELBASE (mm) | 1077 | 1087 | 1095 |
| F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 |
| G | HEAD TUBE ANGLE(*) | 70.5 | 71 | 71.5 |
| H | SEAT TUBE ANGLE (*) | 73 | 72.5 | 72 |
| I | STACK (mm) | 614 | 644 | 665 |
| J | REACH (mm) | 387 | 392 | 399 |
| K | STANDOVER HEIGHT (mm) | 821 | 859 | 892 |
| L | AXLE TO CROWN (mm) | 407 | 407 | 407 |
| M | FORK OFFSET(mm) | 45 | 45 | 45 |
