Tout Terrain
Silkroad Xplore II 275 Select 6.1
Silkroad Xplore II 275 Select 6.1
💳 From ~$92/mo with Shop Pay Installments — 0% APR options available.
Couldn't load pickup availability
Questions? Request a Build Consultation →
Find your size
Select your bike model to get started.
X.Over / Gravel
Expedition
Urban / Trekking
Your gender
This helps calculate the most accurate fit.
Your height
Enter your height without shoes.
Your inseam
We’ve estimated your inseam from your height. Adjust if you know your exact measurement.
Your recommended size
Recommendations are a guide. For a perfect fit, request a build consultation.

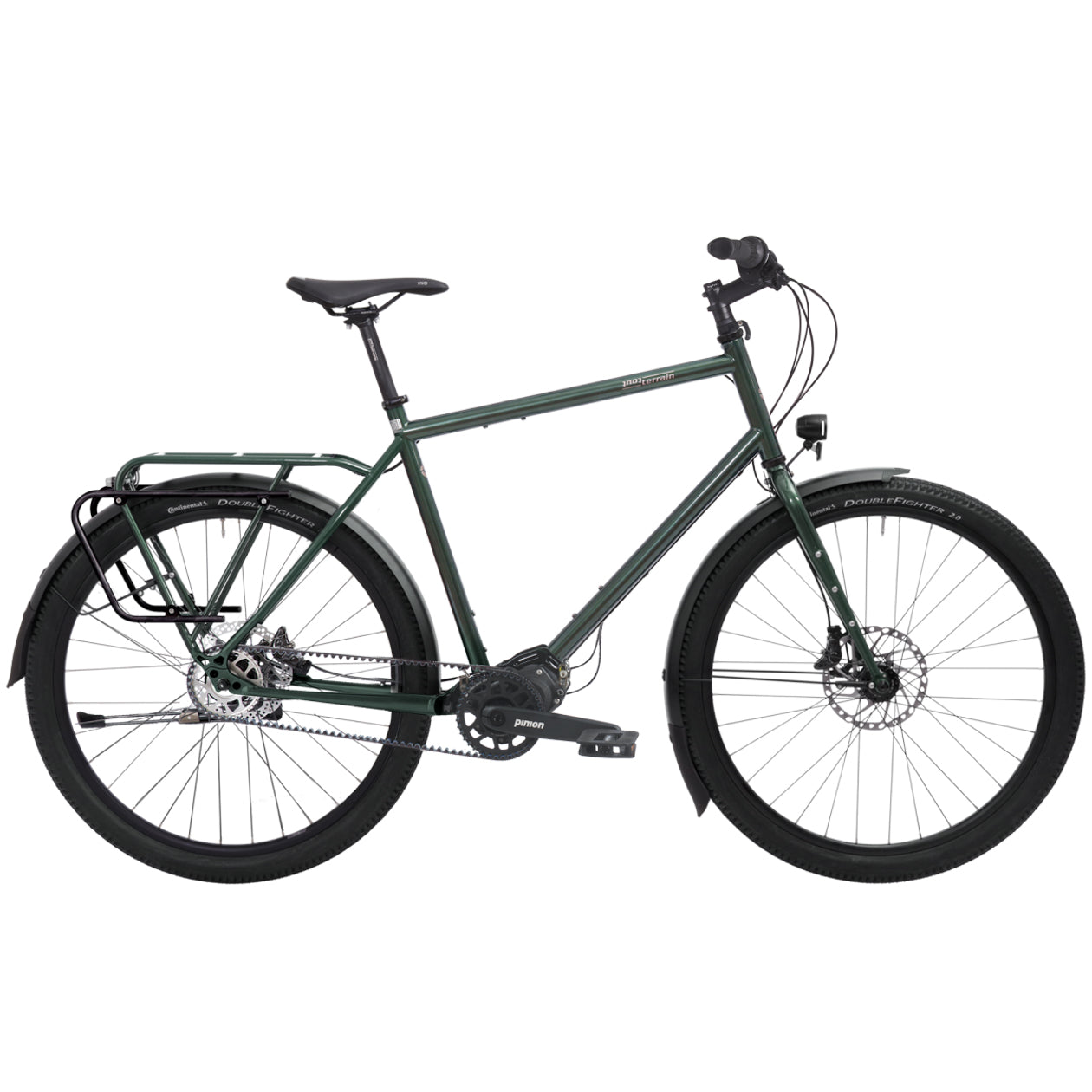

The Silkroad Xplore II 275 Select 6.1 is the ultimate, individually configurable expedition touring bike from Tout Terrain, built for epic, long-distance adventures. This capable steel frame touring bike is designed for maximum resilience, high capacity, and low-maintenance performance on world tours.
Key Features for Global Travel:
Pinion Gearbox Drivetrain: Equipped with a reliable Pinion C1.12 gearbox and the proven Gates Carbon Drive Belt System. This combination delivers a large 600% gear range and maintenance-free shifting in any environment.
High Capacity & Stability: The Silkroad II features a massive 180 kg total capacity (rider/bike/luggage) and runs on smooth-rolling 27.5" wheels with Vittoria Revolution Tech 27.5"x2.0" tires for a balance of efficiency and stability.
Integrated Luggage System: Comes standard with the integrated Tout Terrain Expedition Rack II featuring EX-Rail compatibility, which expands capacity and simplifies packing. The frame also offers 4 bottle holder mounting positions.
Durable Build: Built with a Silkroad II steel frame (Tout Terrain Thermocrom tube set) and a sturdy Tout Terrain Expedition Fork II (steel fork).
Premium Components: Equipped with powerful Magura MT4 hydraulic disc brakes and integrated lighting powered by a Shutter PL-7 hub dynamo (lighting not explicitly listed but implied by dynamo).
Available in sizes M, L, and XL, and finished in a striking British Racing Green Metallic Shiny.
| Brake: | Magura MT4 | Hydraulic disc brake |
|---|---|
| Cassette: | Gates Carbon Drive CDX | 32T |
| Chain / belt: | Gates Carbon Drive CDX Centertrack belt |
| Crankset: | Pinion forged | CDX:SL 39T sprocket | S/M: 170mm, L/XL: 175mm |
| Drivetrain: | Pinion C1.12 gearbox | Gates Carbon Belt Drive |
| Fork: | Tout Terrain Expedition Fork II |
| Front hub: | Shutter PL-7 hub dynamo | Centerlock rotor interface |
| Gear lever: | Pinion twist shifter |
| Grips: | Tout Terrain Ergo lock-on grips |
| Handlebar: | Tout Terrain Ergo | 720mm | 7mm rise | 9° backsweep |
| Headset: | Acros | EC34 / EC34 |
| Kickstand: | Atran Velo kickstand |
| Lights: | Busch + Müller IQ-XS & Line Small | Cinq Plug Pure 7 USB loader |
| Mudguard: | SKS Bluemels 60mm | XXL splash guard | black matte |
| Pedals: | Tout Terrain Urban Pedal |
| Rack: | Tout Terrain E-Expedition Rack II with EX Rails II (black, hard anodized) |
| Rear hub: | Tout Terrain EX-R2 - 1S | Centerlock rotor interface |
| Saddle: | WTB Volt Medium |
| Seat post: | Tout Terrain | 27,2mm |
| Steering stop: | Tout Terrain Ergo-Stop II |
| Stem: | Tout Terrain | 100mm | +/- 6° |
| Tires: | Continental Pure Contact | 27.5"x2.0" / 50-584 |
| Frame: | Silkroad Xplore II steel frame | Tout Terrain Thermocrom tubing |
| Frame size: | L, M, XL |
| Frame Type: | Diamond |
| Maximum total weight: | 180 kg (frame) / 40 kg (rack) |
| Frame color: | British racing green metallic glossy |
| Brake mount type: | Front: IS2000 | Rear: IS2000 |
| Rotor size (front/rear): | 180mm/160mm |
| Bottle cage mounts: | 4 (frame) + 2 (fork) |
| Wheel size: | 27,5" |
| Hub spacing: | Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle |
| Belt tensioning system: | Tout Terrain TBA (pivotable gearbox bracket) |
| Wheelset/Rims: | Ryde Andra 321 |
| M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 510 | 560 | 610 |
| A1 | SEAT TUBE LENGTH (mm) | 450 | 501 | 552 |
| b | TOP TUBE LENGTH (mm) | 575 | 595 | 615 |
| C | CONTROL TUBE LENGTH (mm) | 175 | 205 | 225 |
| D | CHAIN STAY LENGTH (mm) | 455 | 455 | 455 |
| E | WHEELBASE (mm) | 1077 | 1087 | 1095 |
| F | BOTTOM BRACKET LOWERING (mm) | 70 | 70 | 70 |
| G | HEAD TUBE ANGLE (*) | 70.5 | 71 | 71.5 |
| H | SEAT TUBE ANGLE (*) | 73 | 72.5 | 72 |
| I | STACK (mm) | 614 | 644 | 665 |
| J | REACH (mm) | 387 | 392 | 399 |
| K | OVERHANG HEIGHT (mm) | 801 | 840 | 873 |
| L | FORK INSTALLATION HEIGHT (mm) | 407 | 407 | 407 |
| M | FORK OFFSET (mm) | 45 | 45 |
45 |
