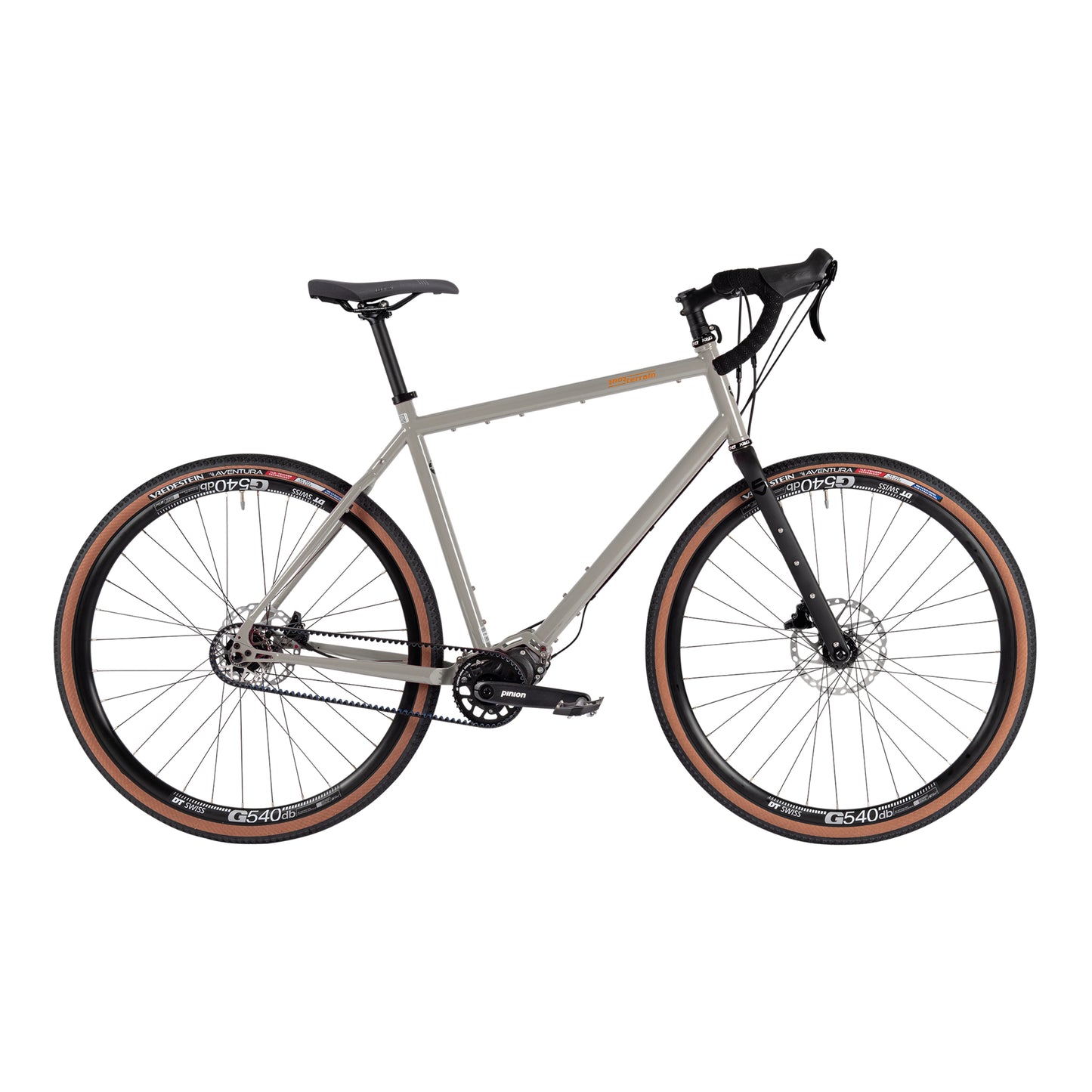

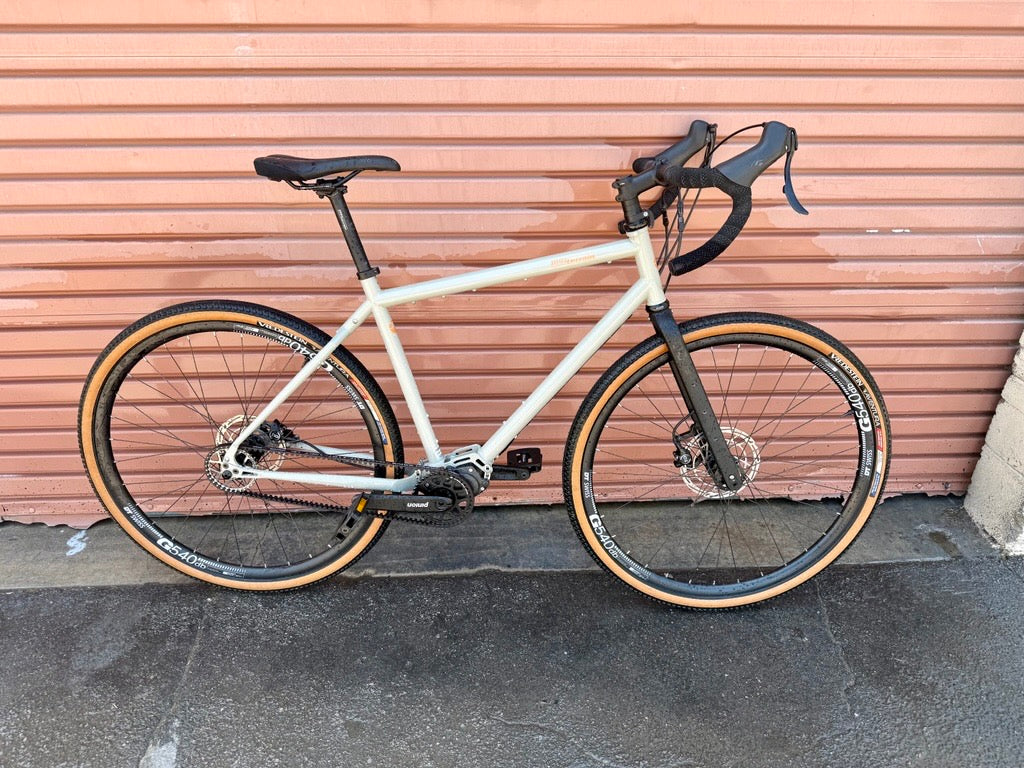

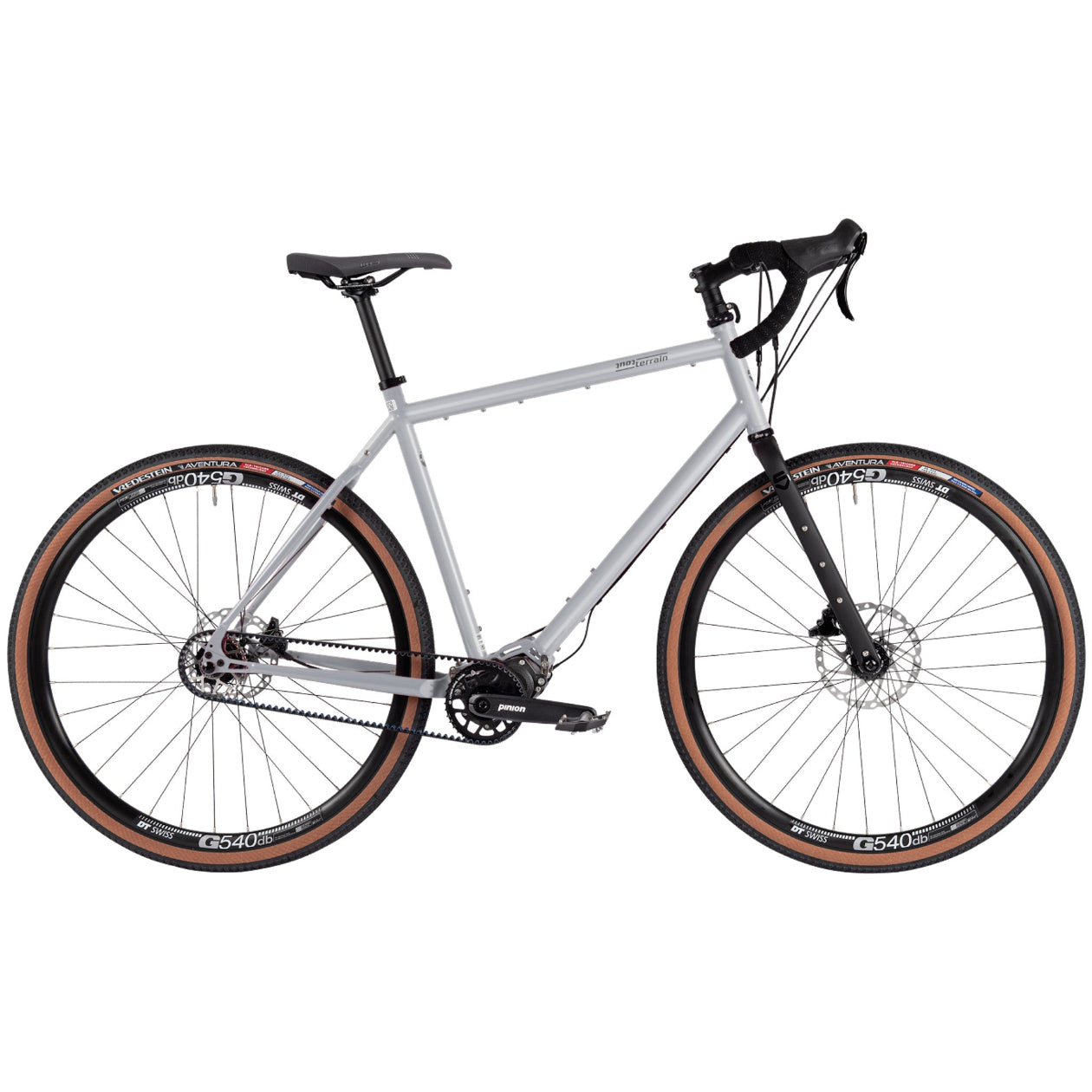

Scrambler Xplore GT II 28 Select 4.1

GRAVEL BIKE FOR FAST TOURS
From a spontaneous tour after work to a gravel adventure lasting several weeks – the Scrambler Xplore GT II 28 loves every adventure. With its sophisticated all-road setup, this bike is perfectly designed to meet the needs of explorers looking for a versatile gravel bike with bikepacking genes. This is ensured not least by the well-thought-out equipment: the extremely robust Pinion gear shift can be relied on even under the most adverse conditions and thanks to its 28" wheels (700C x 40 mm) with good rolling properties, this gravel bike keeps you safely on track even in difficult terrain. With Numerous mounting options for luggage racks, panniers, etc. – for epic gravel adventures without limits.

 SPECIFICATIONS

Specifications are subject to change without prior notice.

FRAMEScrambler Xplore II steel frame | Tout Terrain Stratocrom tubing

FRAME SIZES: S, M, L, XL

FRAME COLOR: Cromo Lucido Matte

FORK: Tout Terrain Touring Fork III | carbon fork

HUB SPACING Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle

BRAKE MOUNT TYPE Front: Flat Mount 160-180mm | Rear: Flat Mount 160-180mm

DRIVETRAIN: Pinion C1.12 gearbox | Gates Carbon Belt Drive

CRANKSET: Pinion forged | CDX:SL 39T sprocket | 175mm

CASETTE: Gates Carbon Drive CDX Centertrack | 32T

GEARING: 39/32 | 600%

BOTTOM BRACKET: Pinion

CHAIN / BELT: Gates Carbon Drive CDX Centertrack belt

BELT/CHAIN TENSIONING SYSTEM: Tout Terrain TBA III (pivotable for Pinion)

GEAR LEVER: Tout Terrain Shift:R Road for Pinion

STEERING STOP: Tout Terrain Ergo-Stop II

HEADSET: Cane Creek 10

STEM: Tout Terrain | 70mm | +/- 6°

HANDLEBAR TYPE: Tout Terrain Gravel drop bar | 440mm | 16° flare

BRAKE: TRP Hylex | hydraulic disc brake

DISC ROTORS: Jagwire 180/160mm | Centerlock

GRIPS: Fizik Microtex Performance bar tape

WHEEL SIZE: 28" (700C)

FRONT HUB: Tout Terrain EX-F1 | Centerlock rotor interface

REAR HUB: Tout Terrain EX-R2 - 1S | Centerlock rotor interface

TIRES: Vredestein Aventura | 700Cx44mm / 44-622

RIMS: DT Swiss G540

MUDGUARD: mounting points available

SEAT POST: Tout Terrain SP1-Zero | 27.2mm

SADDLE: WTB Volt Medium

PEDALS: n/a

CAPACITY:  (FRAME / RACK)130 kg / 15 kg

BOTTLE CAGE MOUNTS: 4

		S	M	L	XL
A	SEAT TUBE LENGTH (mm)	470	510	550	590
A1	SEAT TUBE LENGTH (mm)	408	449	489	530
B	TOP TUBE LENGTH (mm)	545	565	585	605
C	HEAD TUBE LENGTH (mm)	135	155	185	205
D	CHAIN ​​STAY LENGTH (mm)	455	455	455	455
E	WHEELBASE (mm)	1053	1063	1084	1093
F	BOTTOM BRACKET LOWERING (mm)	65	65	65	65
G	HEAD TUBE ANGLE (*)	70.5	71	71	71.5
H	SEAT TUBE ANGLE (*)	73.5	73	73	72.5
I	STACK (mm)	564	585	613	634
J	REACH (mm)	378	386	398	405
K	OVERHANG HEIGHT (mm)	769	798	831	860
L	FORK INSTALLATION HEIGHT (mm)	400	400	400	400
M	FORK OFFSET(mm)	45	45	45	45
