Tout Terrain

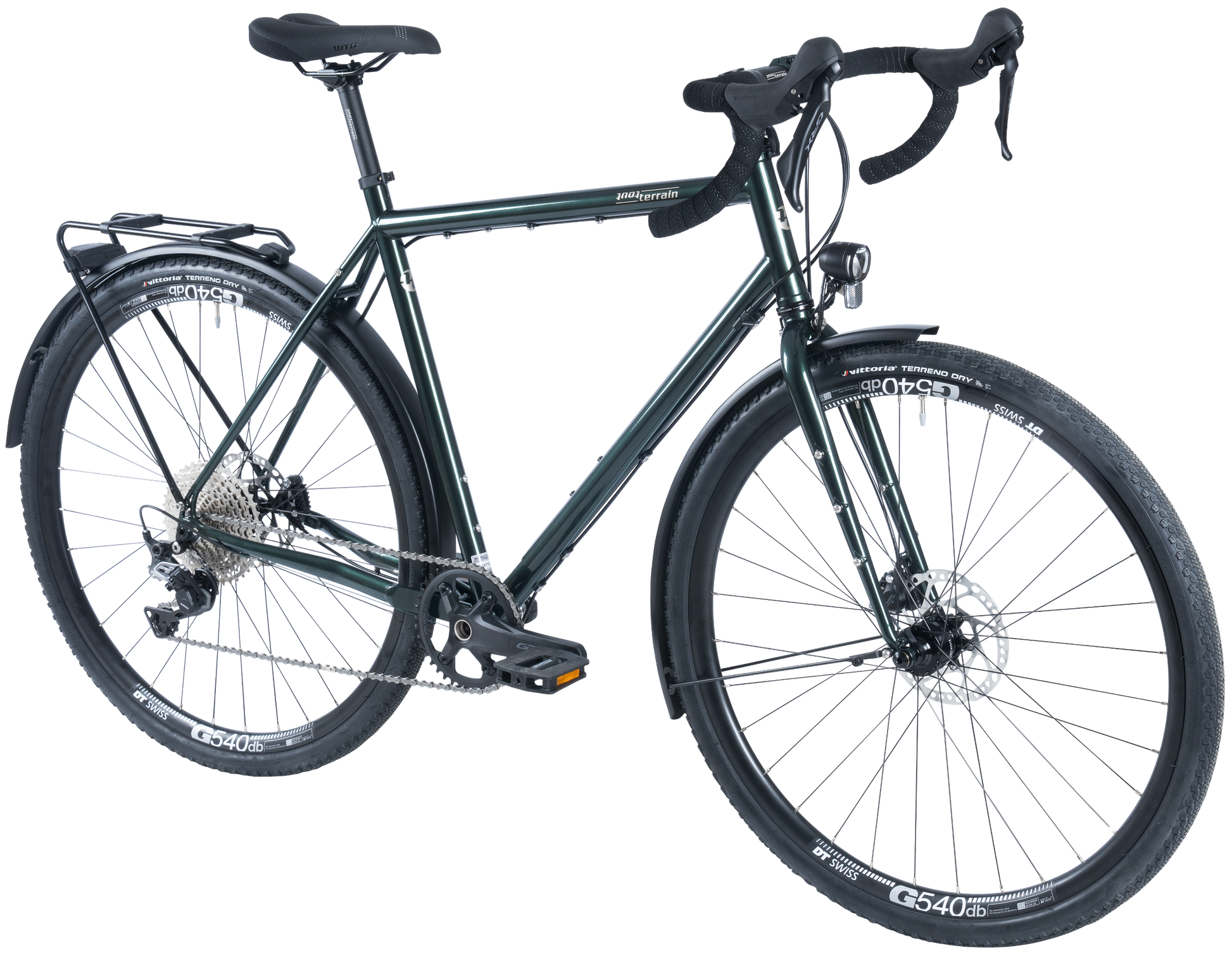

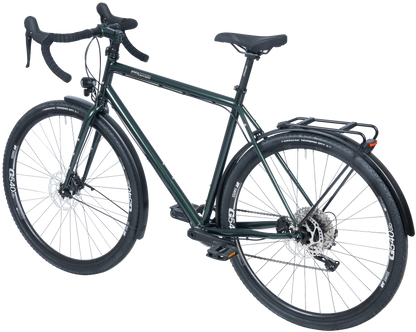

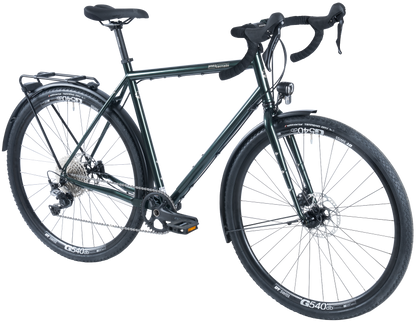

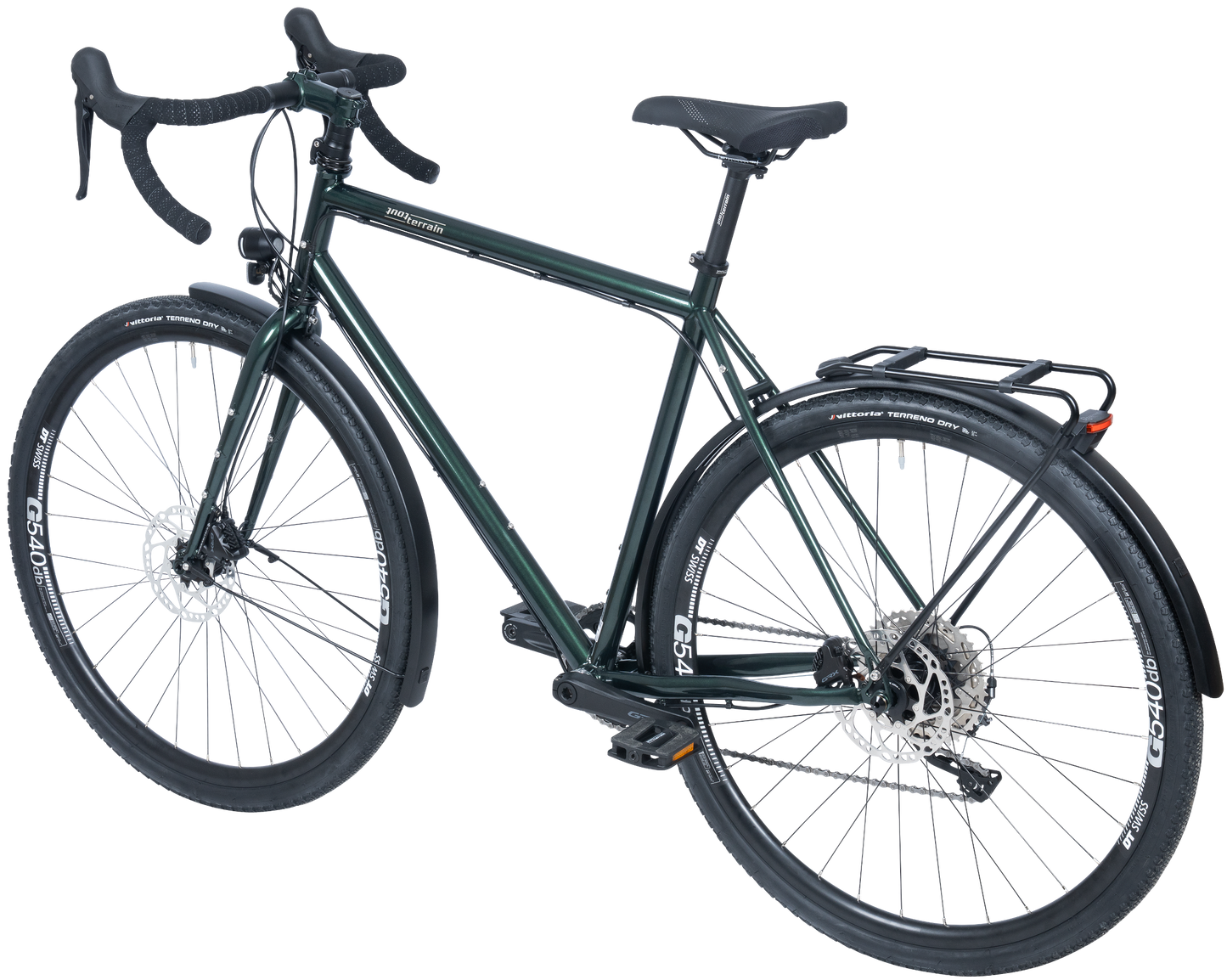

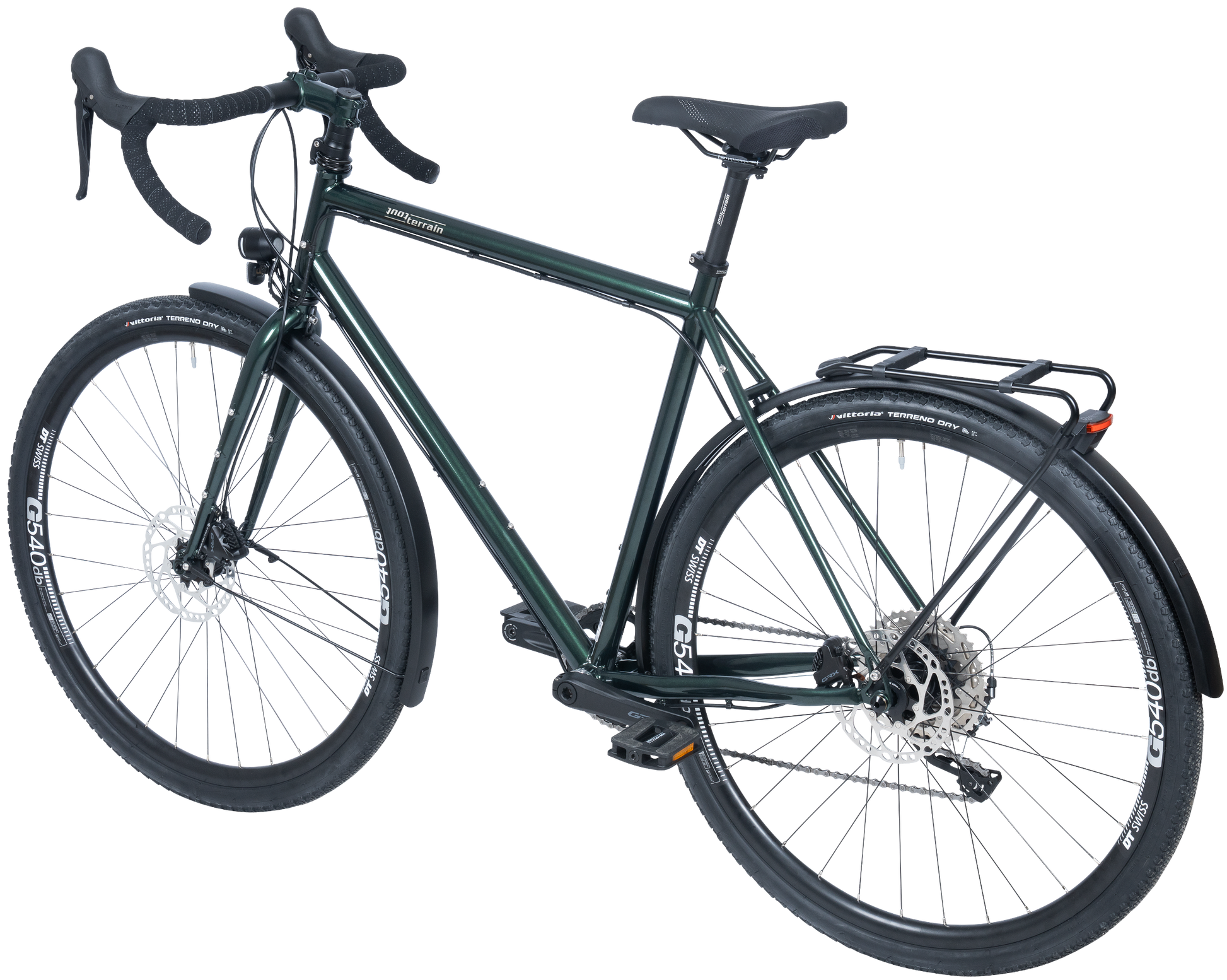

Nolita GT Select 4.1
Nolita GT Select 4.1

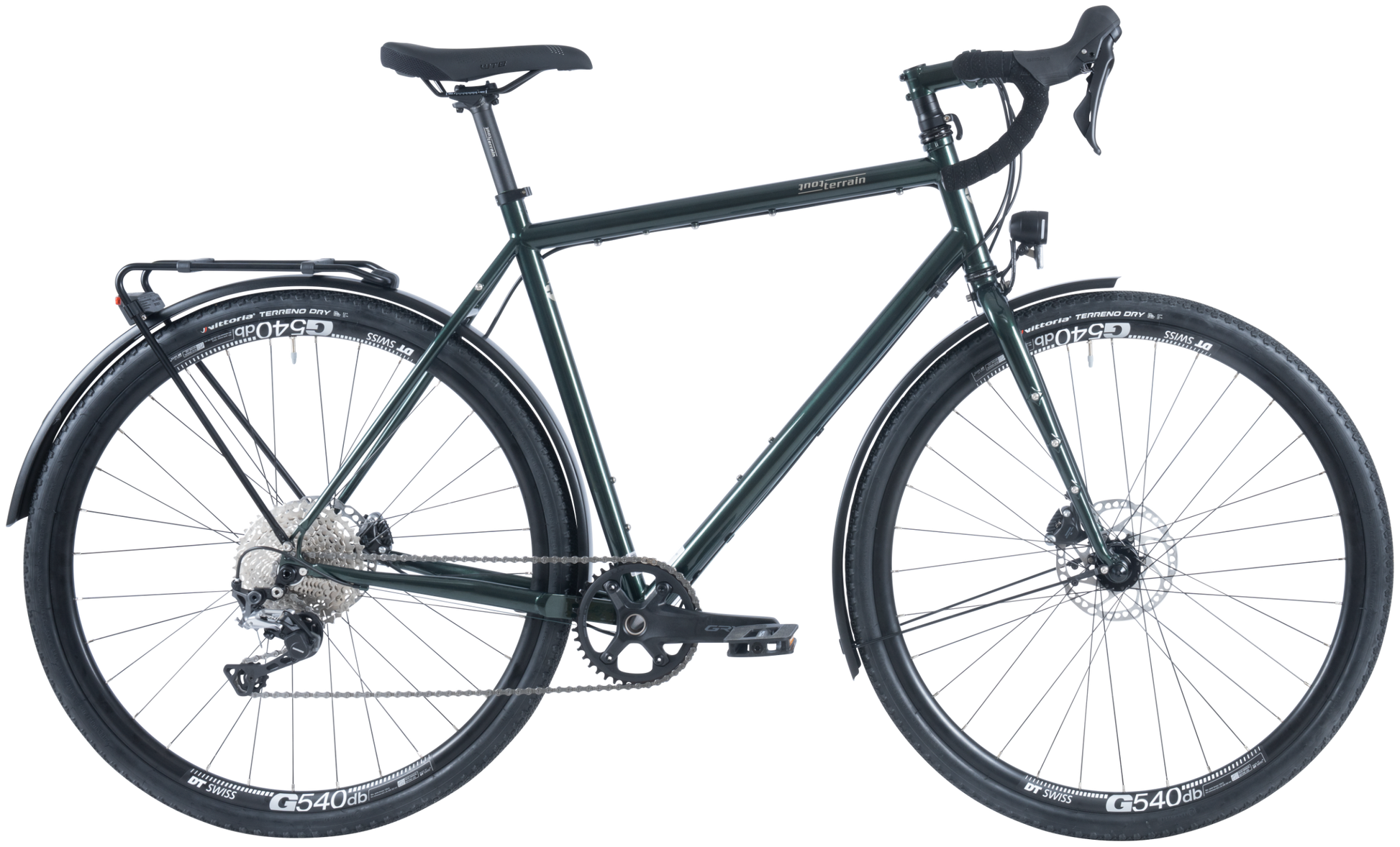

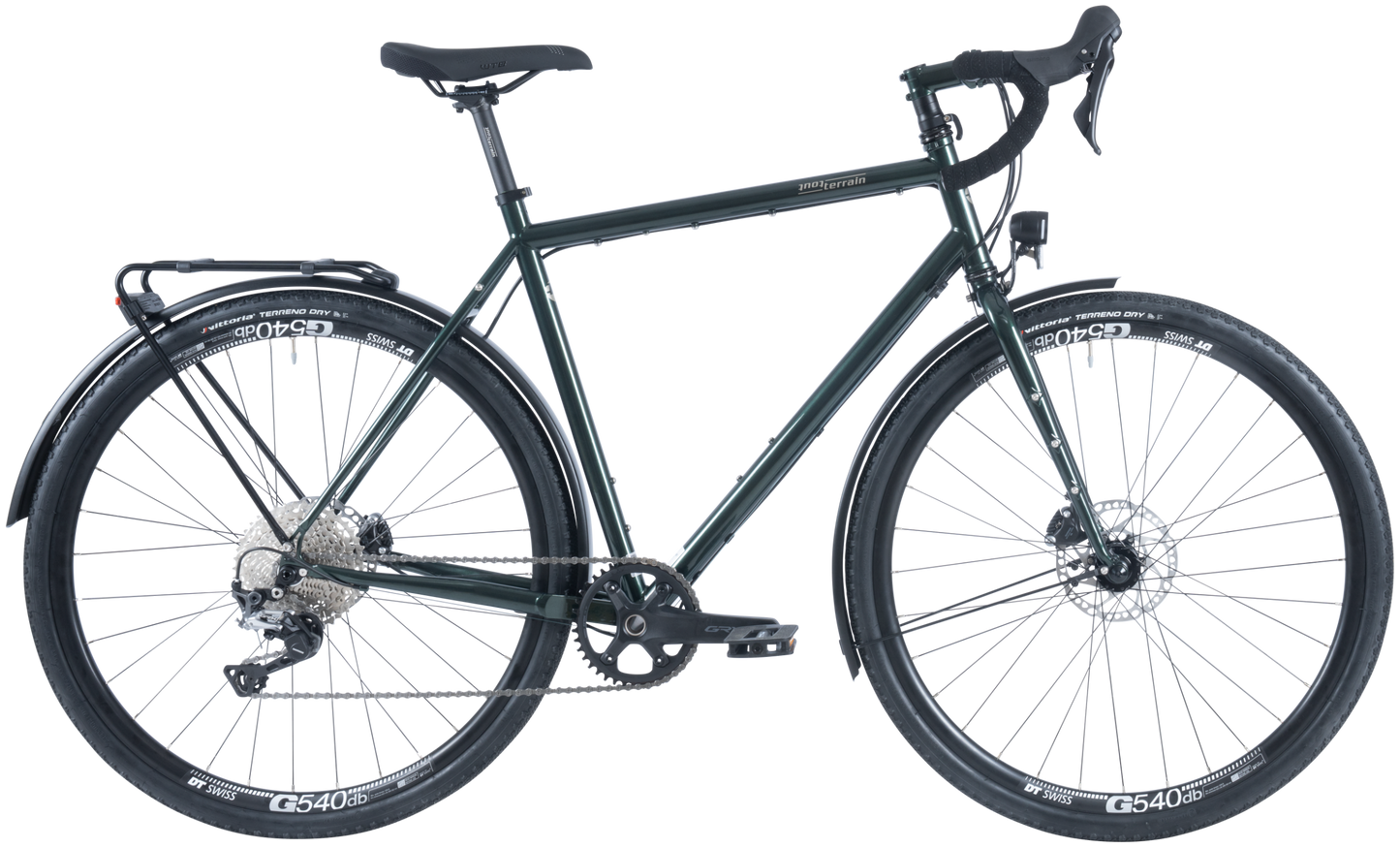

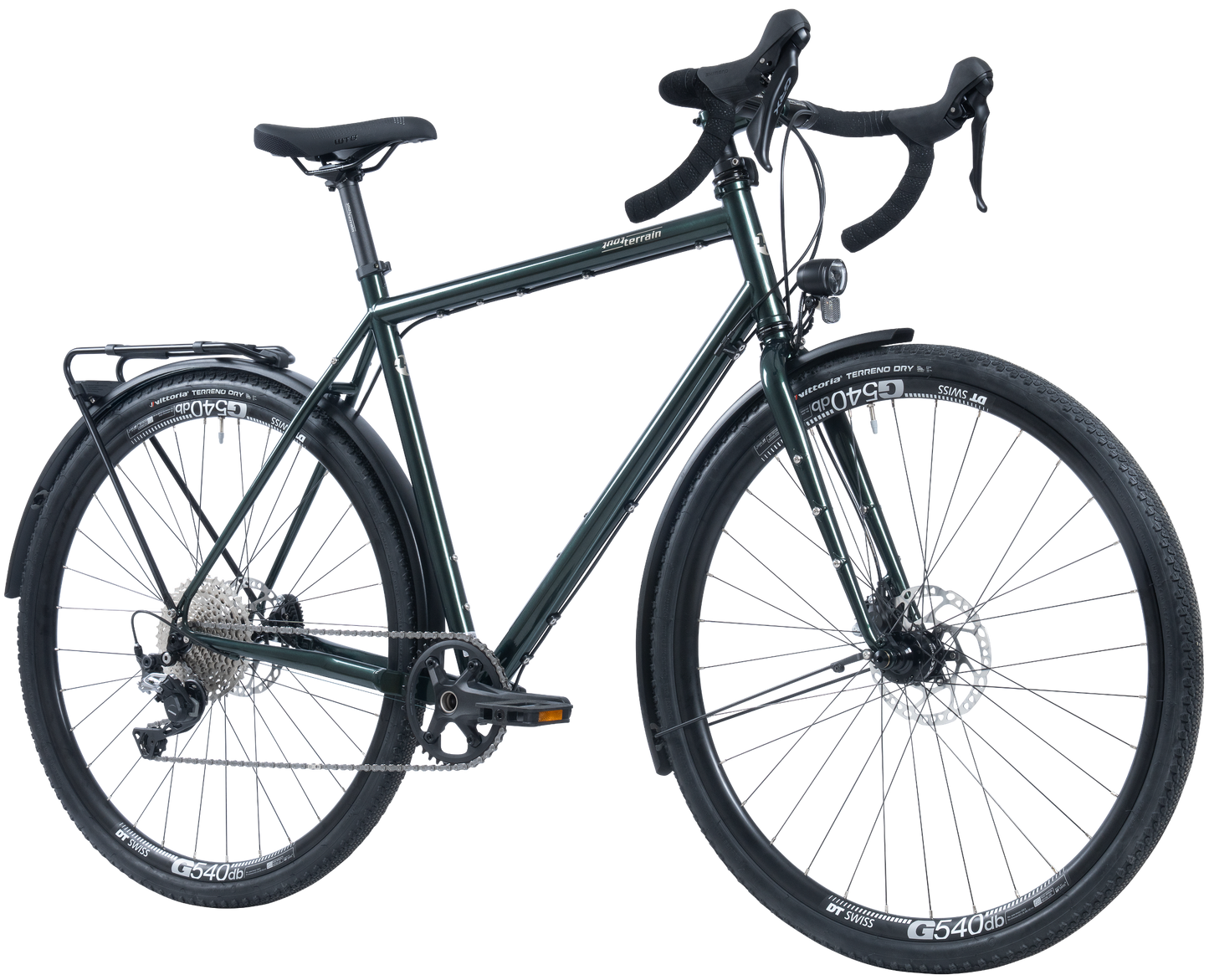

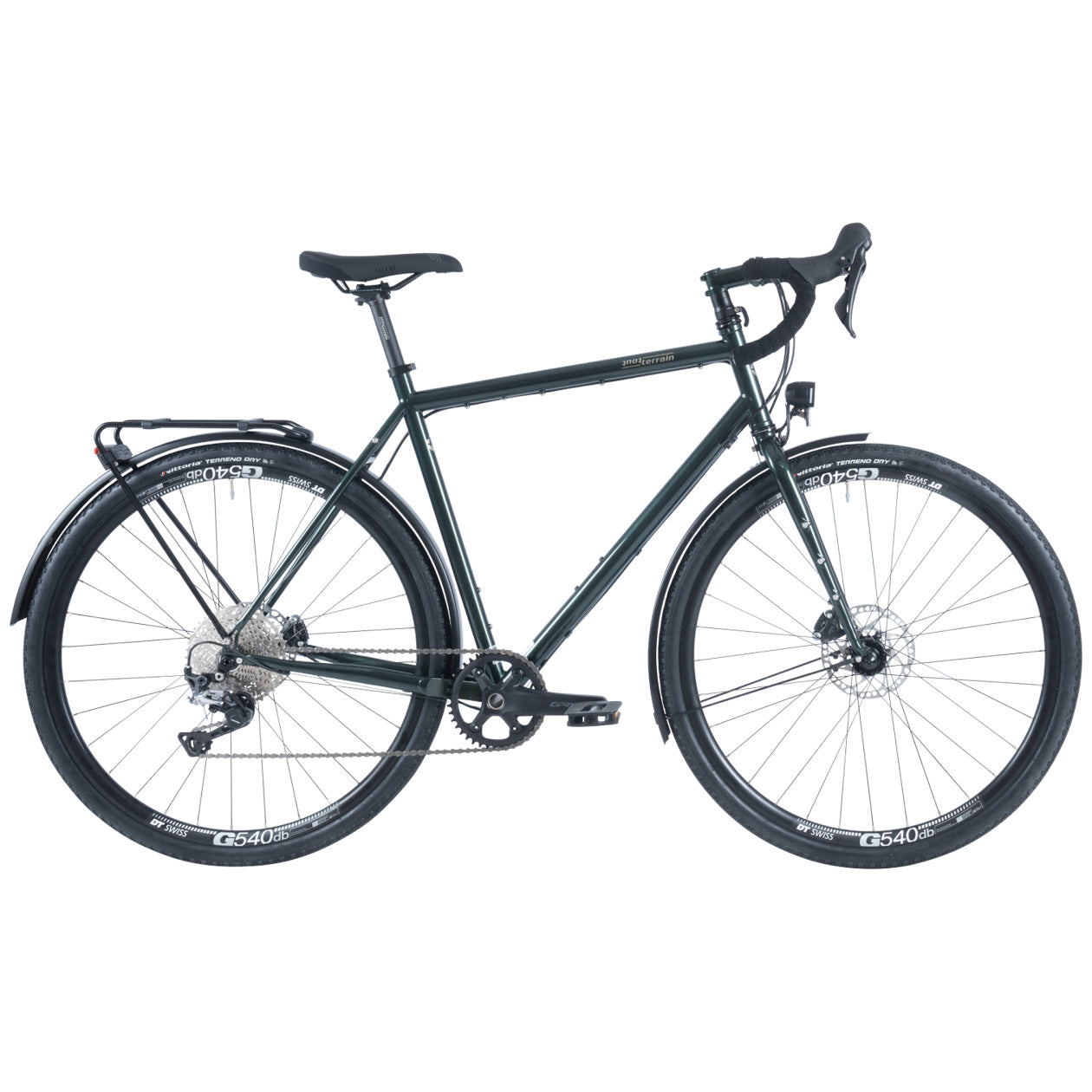

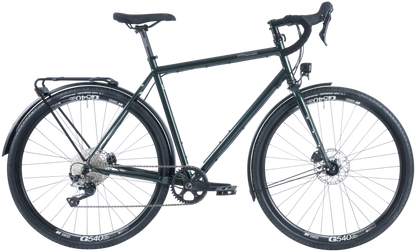

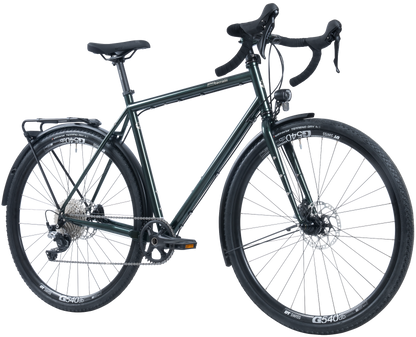

The Nolita GT is a real pleasure for commuting - take the long way home! This sporty bike accompanies you reliably in everyday life and on weekends. It is a real 365-day bike, robust and safe in all weathers on the way to work and sporty for gravel tours. As a city bike with sporty derailleur gears, it feels comfortable on all surfaces, from paved roads to gravel paths. The versatile 28-inch wheels guarantee speed and efficiency, while the drop-style handlebars allow for a sporty yet comfortable riding position. Customize your bike or choose one of our stylish Select models - with the Nolita GT you can explore streets away from the hustle and bustle of traffic and experience the freedom of cycling to the fullest.
Where does Nolita get its name from? In Nolita, the hip NYC district, urban lifestyle combines with cycling culture. Discover the area by bike, enjoy street art, trendy cafes and boutiques. The Nolita GT bike fits perfectly here: sporty for the city and adventurous for gravel tours on the weekend. A real pleasure to explore the district on two wheels. Take the long way home in Nolita!
SPECIFICATIONS
Specifications are subject to change at any time without notice.
FRAME: Nolita steel frame | Tout Terrain Stratocrom tube set
FRAME SIZES: S, M, L, XL
FRAME COLOR: Iron gray glossy
FORK: Tout Terrain Allroad Fork | Steel fork
AXLE DIMENSION: Front: 12/100mm thru axle | Rear: 12/142mm thru axle
BRAKE MOUNT: Front: Flat Mount 140-160mm | Rear: Flat Mount 160-180mm
DRIVE: Shimano GRX 1x11
CRANK: Shimano GRX | FC-RX600-1 | 40T | 172.5mm
CASSETTE: Shimano Deore | CS-M5100 | 11-42T | 11-Speed
BOTTOM BRACKET: Shimano BB-RS500 | Hollowtech II | BSA 68mm
FRONT DERAILLEUR: n/a
REAR DERAILLEUR: Shimano GRX | RD-RX812 | 1x11
CHAIN/BELT: Shimano CN-HG601 | 11-fold
SHIFT LEVER: Shimano GRX | ST-RX600
STEERING STOP: Tout Terrain Ergo-Stop II
HEADSET: Cane Creek 10 / Acros | EC34 / EC34

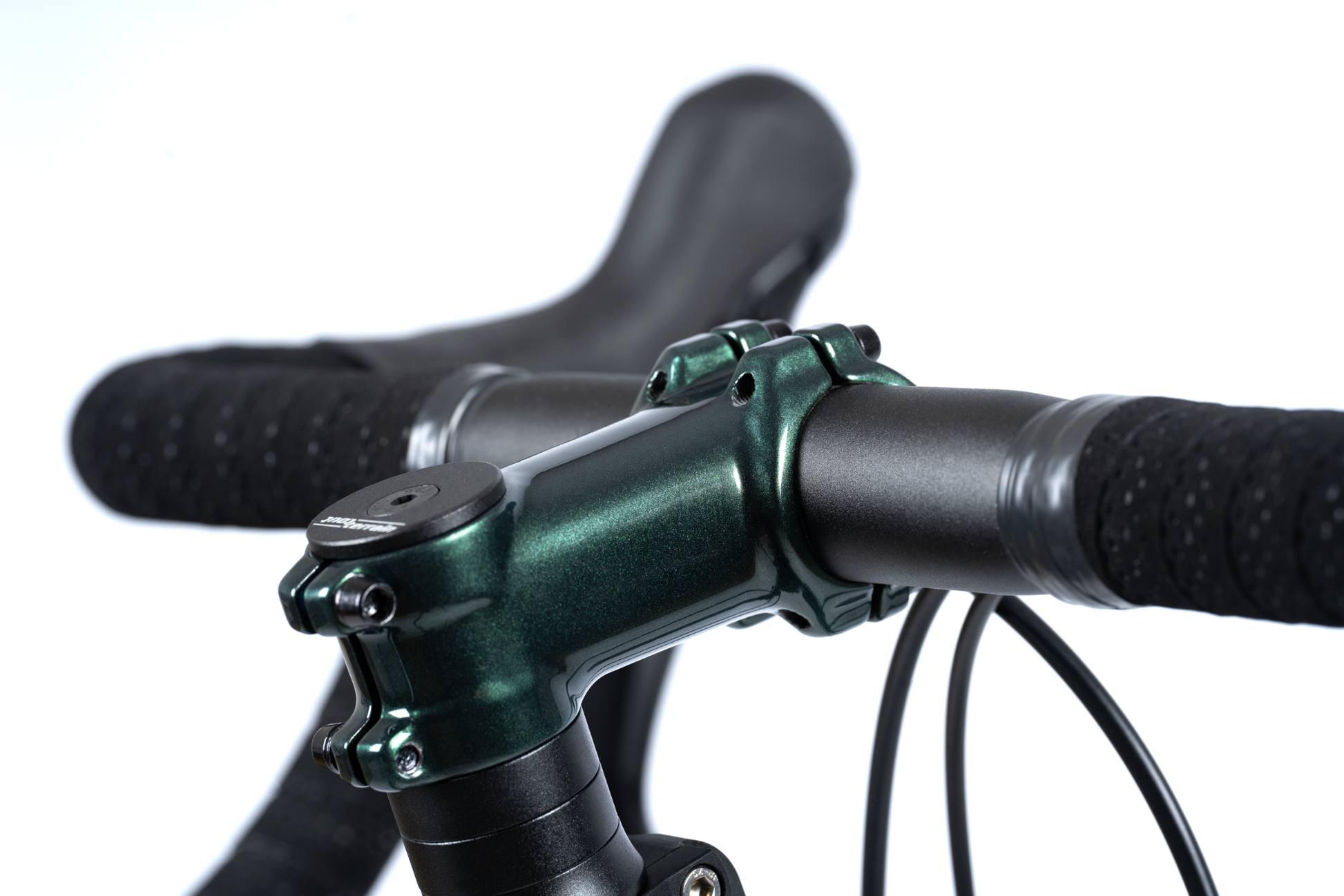

STEM: Tout Terrain | 70mm | +/- 6°

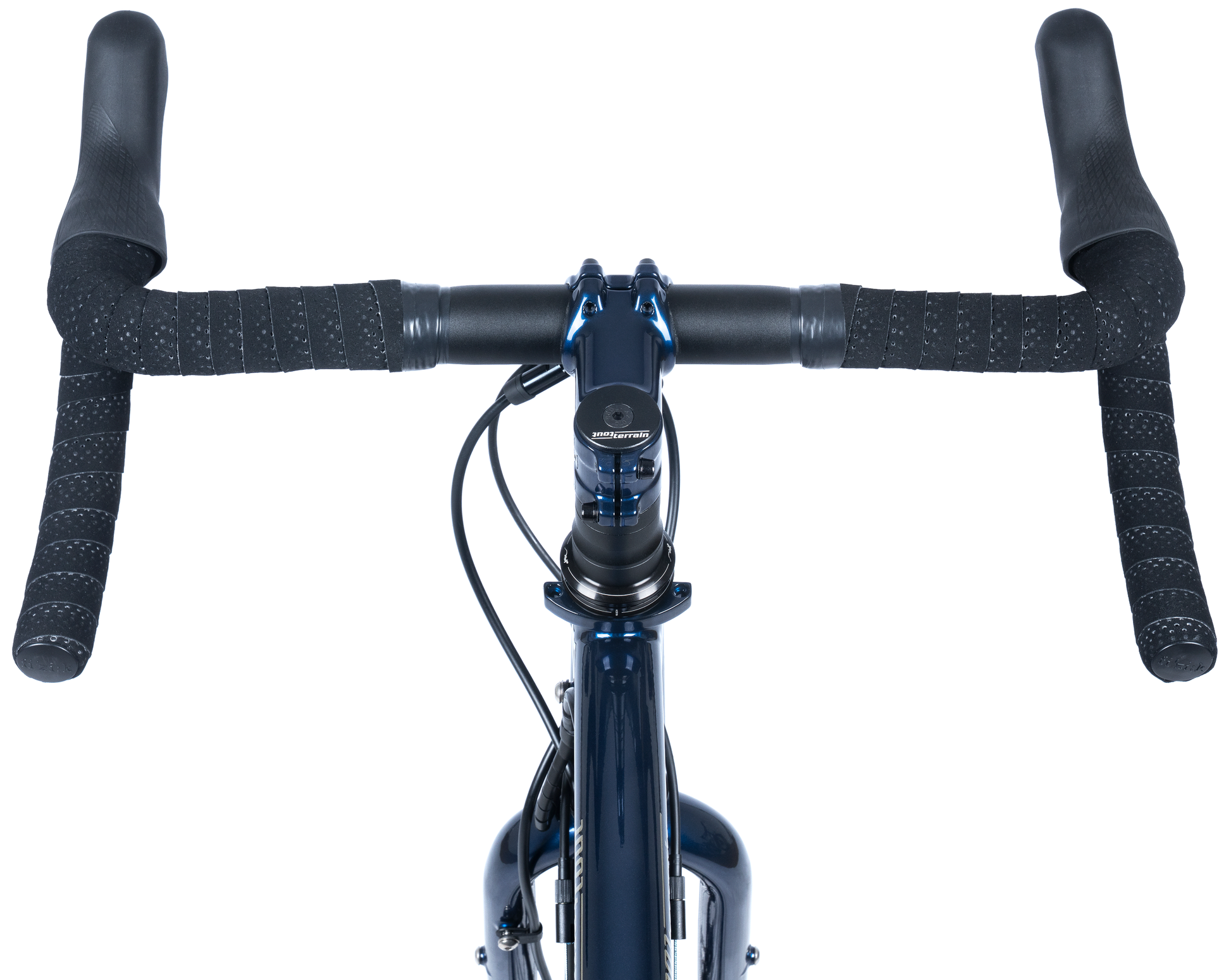

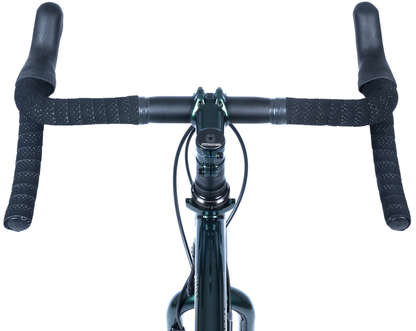

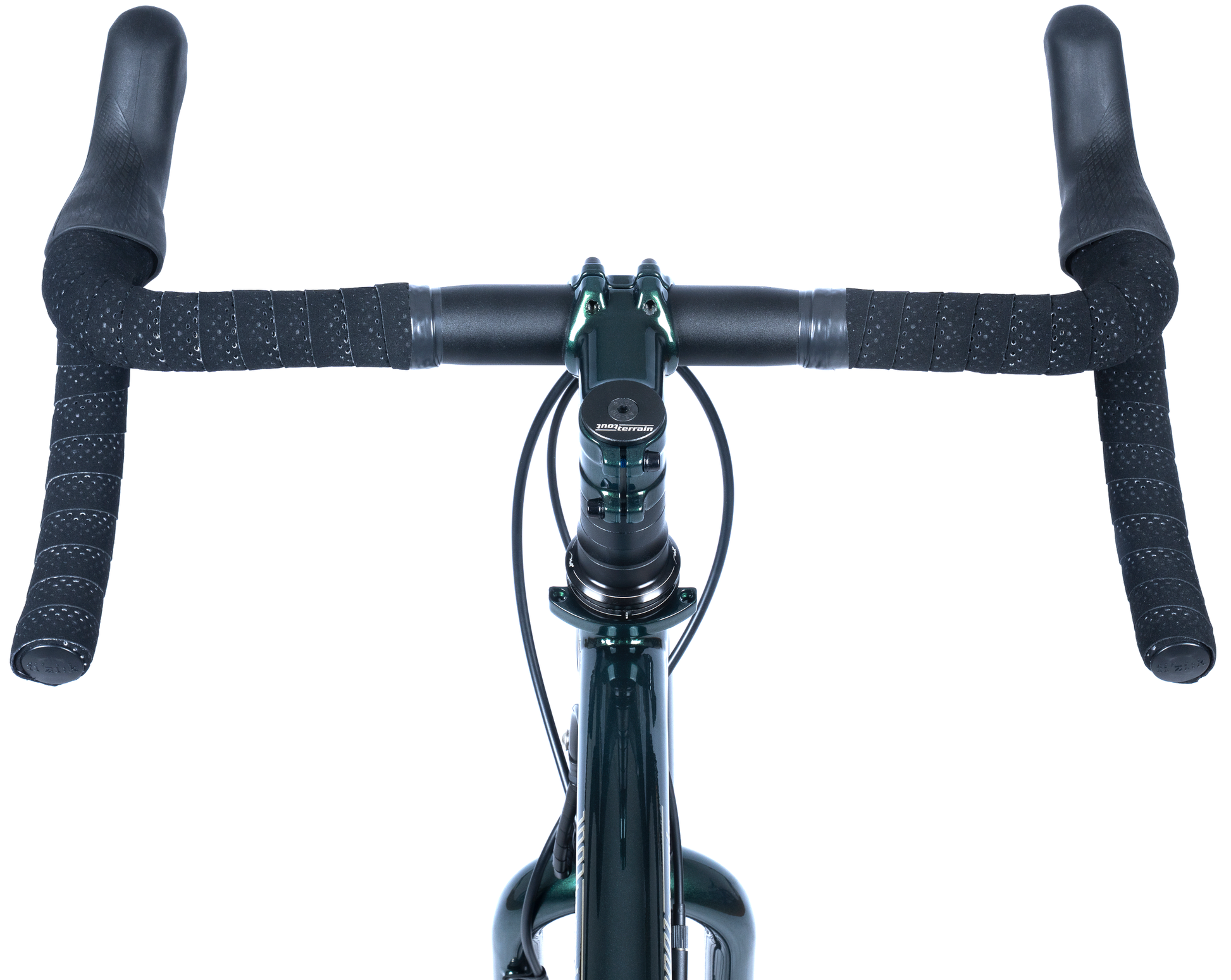

HANDLEBARS: Tout Terrain Gravel Racing Handlebar | 440mm | 16° flare
BRAKE: Shimano GRX | BR-RX400 | Gravel disc brake
BRAKE DISCS: Jagwire 180/160mm | Center lock
HANDLEBAR TAPE: Fizik Microtex Performance handlebar tape
WHEEL SIZE: 28"/700C
FRONT WHEEL HUB: Shutter PL-7 hub dynamo | Centerlock brake disc mount
REAR WHEEL HUB: Tout Terrain TK-R1 - 10/11/12S | Centerlock brake disc mount
TIRES: Vittoria Terreno Zero | 700Cx40mm / 40-622
RIMS: Ryde Andra 321
MUDGUARD: SKS Edge AL 46mm | black Matt
LUGGAGE CARRIER: SKS Infinity GT6
SEAT POST: Tout Terrain SP1-Zero | 27.2mm
SADDLE: WTB Volt Medium
LIGHTING: Busch + Müller IQ-XS & SKS Infinity Rearlight
KICKSTAND: n/a
PEDALS: Tout Terrain Urban Pedal
CAPACITY (FRAME/RACK): 120kg
BOTTLE HOLDER MOUNTING POSITIONS: 4 (frame) + 2 (fork)
S | M | L | |||
A | SEAT TUBE LENGTH (mm) | 490 | 530 | 570 | 610 |
A1 | SEAT TUBE LENGTH (mm) | 431 | 471 | 512 | 552 |
B | TOP TUBE LENGTH (mm) | 535 | 555 | 575 | 595 |
C | HEAD TUBE LENTH (mm) | 125 | 150 | 175 | 200 |
D | CHAINSTAY LENGTH (mm) | 435 | 435 | 440 | 440 |
E | WHEELBASE (mm) | 1010 | 1030 | 1045 | 1060 |
F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
G | HEAD TUBE ANGLE (*) | 71 | 71 | 71.5 | 71.5 |
H | SEAT TUBE ANGLE (*) | 73 | 73 | 72.5 | 72 |
I | STACK (mm) | 562 | 585 | 611 | 635 |
J | REACH (mm) | 363 | 376 | 382 | 389 |
K | STAND OVER CLEARANCE (mm) | 766 | 797 | 829 | 859 |
