Tout Terrain

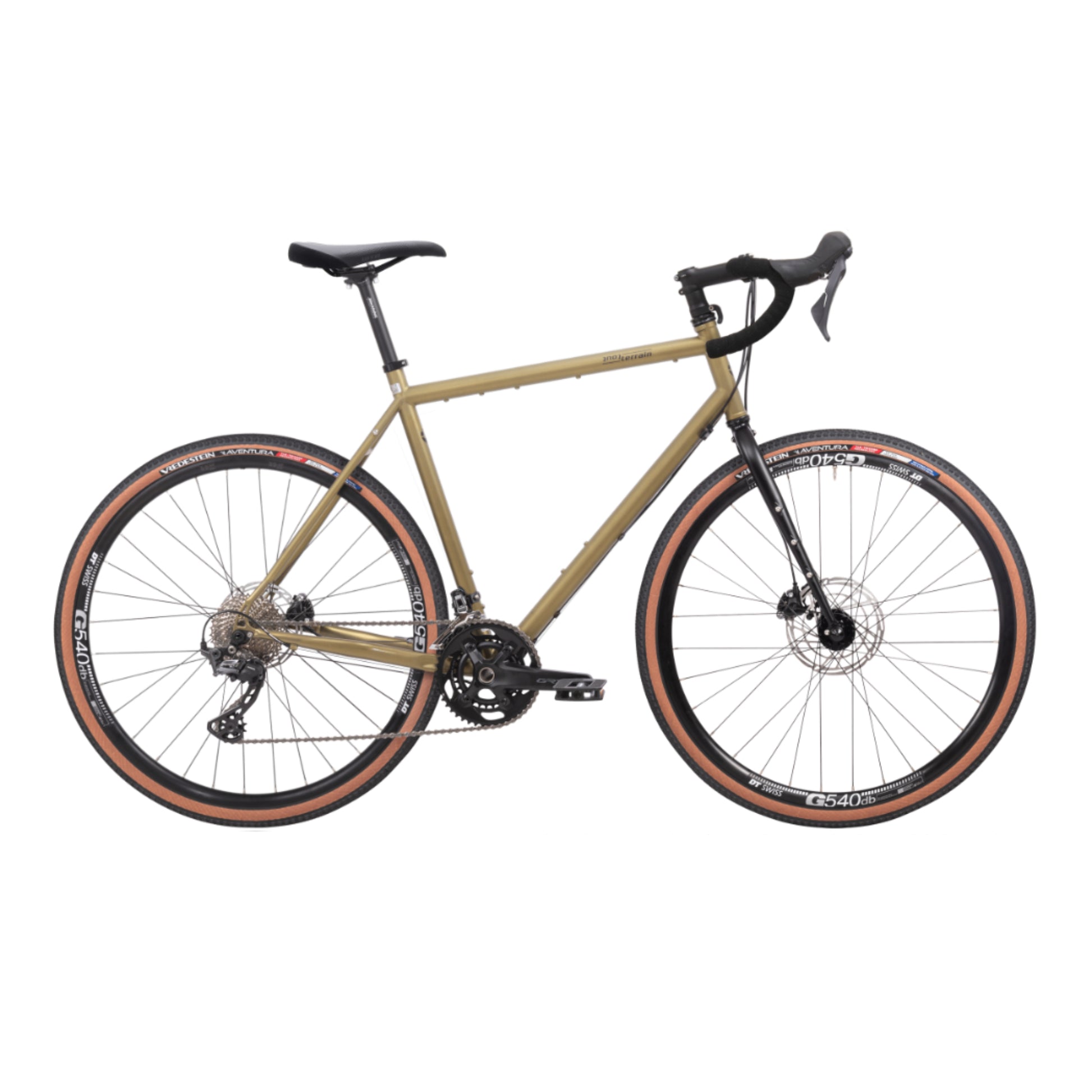

Vasco GT 28 Select 2.2
Vasco GT 28 Select 2.2
An all-round expedition bike, adventurously fast with 700C wheels, Expedition steel fork and Shimano GRX 2x11 drive. Perfect for gravel rides, bikepacking and more.
SPECIFICATIONS
Specifications are subject to change at any time without notice.
FRAME: Vasco steel frame | Tout Terrain Stratocrom tube set
FRAME SIZES: S, M, L, XL
FRAME COLOR: Oliva Metallic Matt
FORK: Expedition steel fork
AXLE DIMENSION: Front: 12/100mm thru axle | Rear: 12/142mm thru axle
BRAKE MOUNT: Front: Flat Mount 160-180mm | Rear: Flat Mount 160-180mm
DRIVETRAIN: Shimano GRX 2x11
CRANKSET: Shimano GRX | FC-RX600-11 | 46/30Z | 172.5mm
CASSETTE: Shimano 105 | CS-HG700 | 11-34Z | 11-Speed
BOTTOM BRACKET: Shimano BB-RS500 | Hollowtech II | BSA 68mm
FRONT DERAILLEUR: Shimano GRX | FD-RX810-F | 2x11
REAR DERAILLEUR: Shimano GRX | RD-RX810 | 2x11
CHAIN/BELT: Shimano CN-HG601 | 11-Speed
SHIFT LEVER: Shimano GRX | ST-RX600
STEERING STOP: Tout Terrain Ergo-Stop II
HEADSET: Cane Creek 10 / Acros | EC34 / EC34
STEM: Tout Terrain | 100mm | +/- 6°
HANDLEBARS: Tout Terrain Allroad racing handlebars | 440mm | 8° flare
BRAKE: Shimano GRX | BR-RX400 | Gravel disc brake
BRAKE DISCS: Shimano SLX | SM-RT64/66 | 180mm/160mm
BARTAPE: Fizik Microtex Performance handlebar tape
WHEEL SIZE: 28"
FRONT WHEEL HUB: Tout Terrain EX-F1 | Centerlock brake disc mount
REAR WHEEL HUB: Tout Terrain EX-R1 - 10/11/12S | Centerlock brake disc mount
TIRES: Vredestein Aventura | 700Cx44mm / 44-622
RIMS: DT Swiss G540
MUDGUARD: retrofittable
SEAT POST: Tout Terrain SP1-Zero | 27.2mm
SADDLE: WTB Volt Medium
PEDALS: Tout Terrain Urban Pedal
CAPACITY (FRAME/RACK): 120kg
BOTTLE HOLDER MOUNTING POSITIONS: 4 (frame) + 2 (fork)
WEIGHT: from 10.8 kg
S | M | L | |||
A | SEAT TUBE LENGTH (mm) | 490 | 530 | 570 | 610 |
A1 | SEAT TUBE LENGTH (mm) | 431 | 471 | 512 | 552 |
B | TOP TUBE LENGTH (mm) | 535 | 555 | 575 | 595 |
C | HEAD TUBE LENTH (mm) | 125 | 150 | 175 | 200 |
D | CHAINSTAY LENGTH (mm) | 435 | 435 | 440 | 440 |
E | WHEELBASE (mm) | 1010 | 1030 | 1045 | 1060 |
F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
G | HEAD TUBE ANGLE (*) | 71 | 71 | 71.5 | 71.5 |
H | SEAT TUBE ANGLE (*) | 73 | 73 | 72.5 | 72 |
I | STACK (mm) | 562 | 585 | 611 | 635 |
J | REACH (mm) | 363 | 376 | 382 | 389 |
K | STAND OVER CLEARANCE (mm) | 766 | 797 | 829 | 859 |
