Tout Terrain
Ceres GT Select 6.1
Ceres GT Select 6.1
Regular price
$3,600.00 USD
Regular price
Sale price
$3,600.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

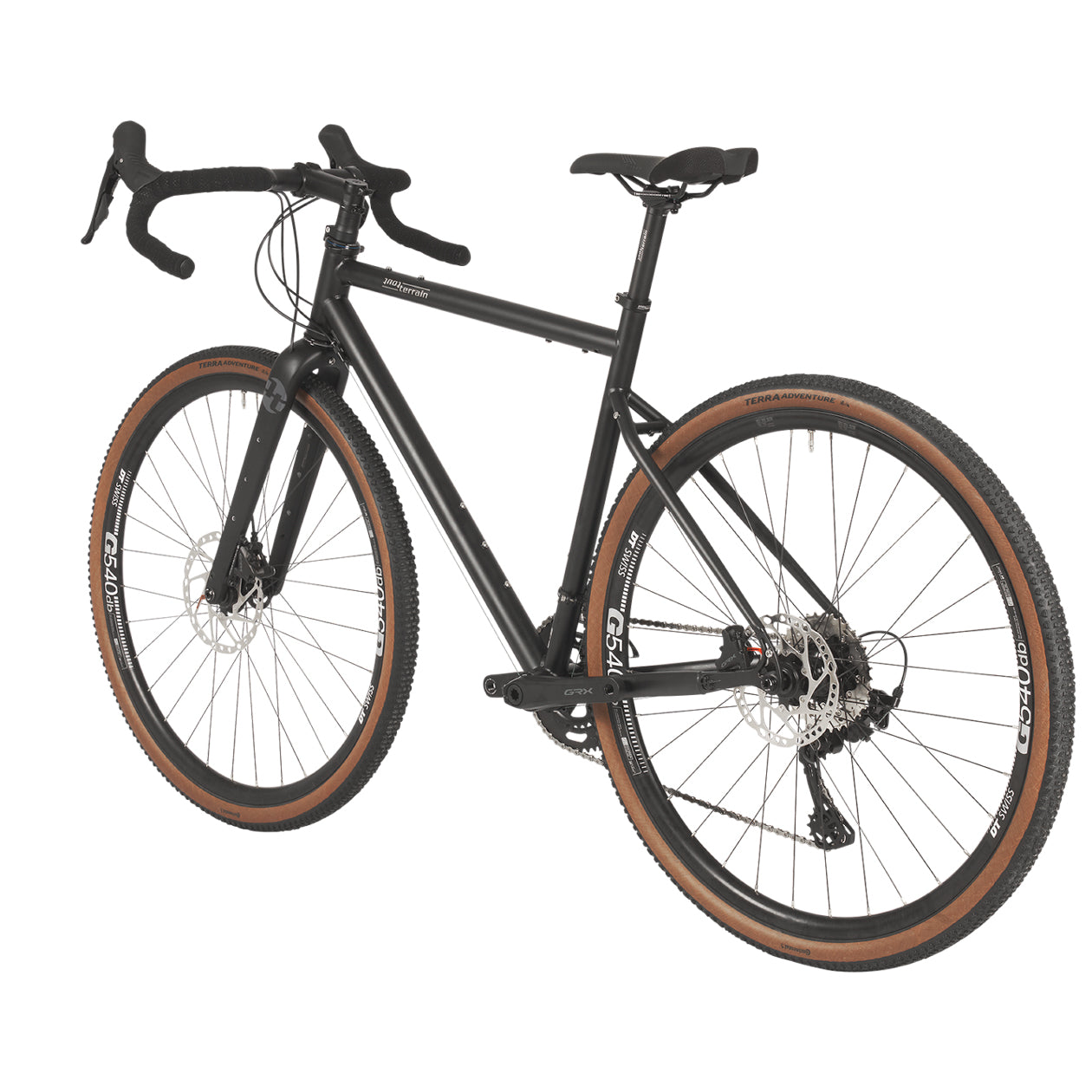

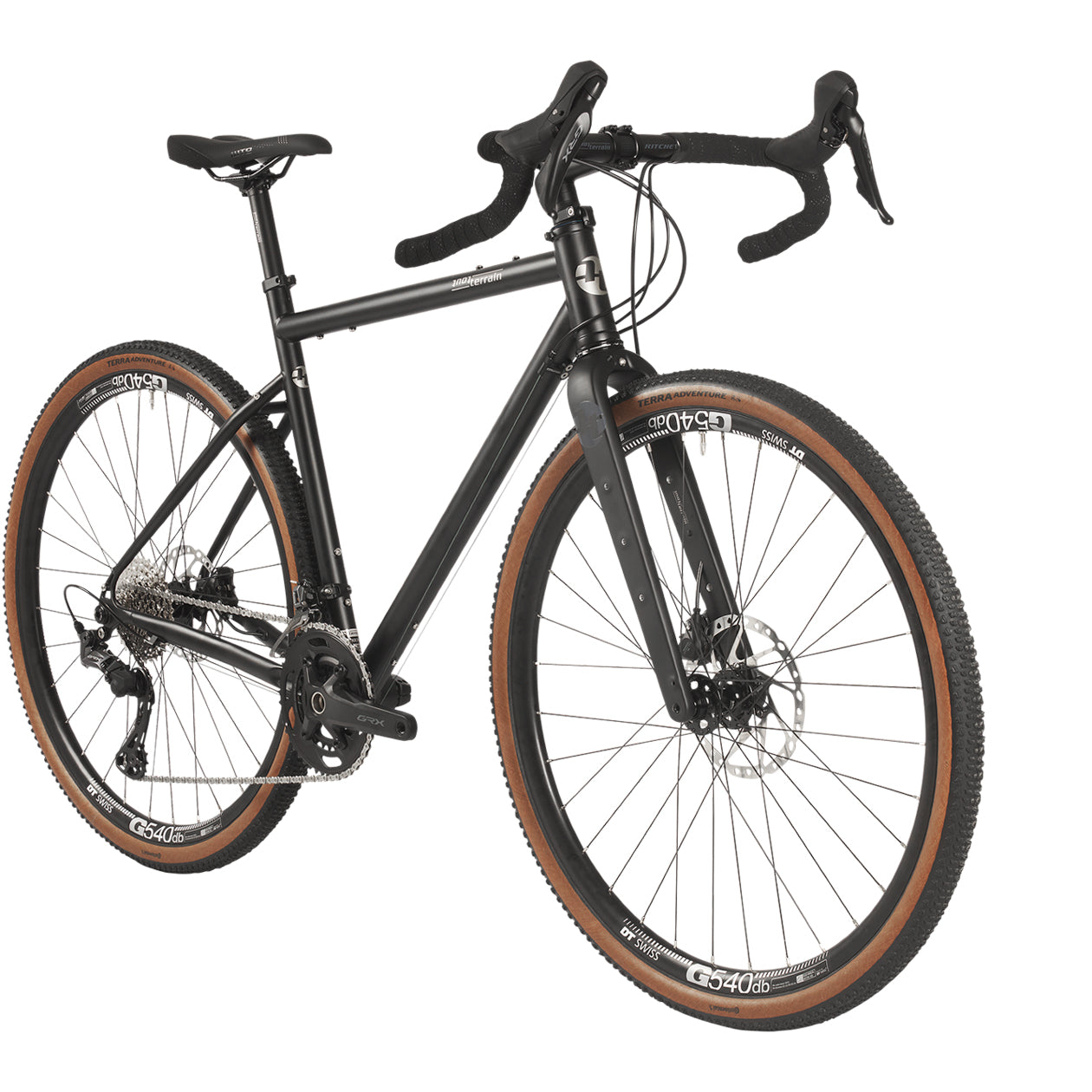

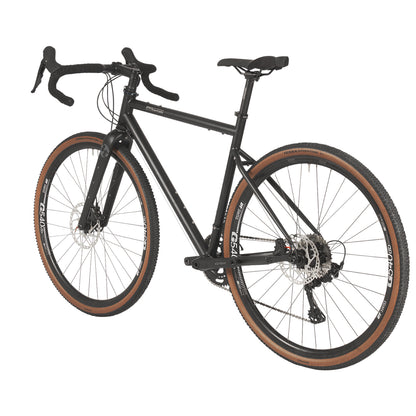

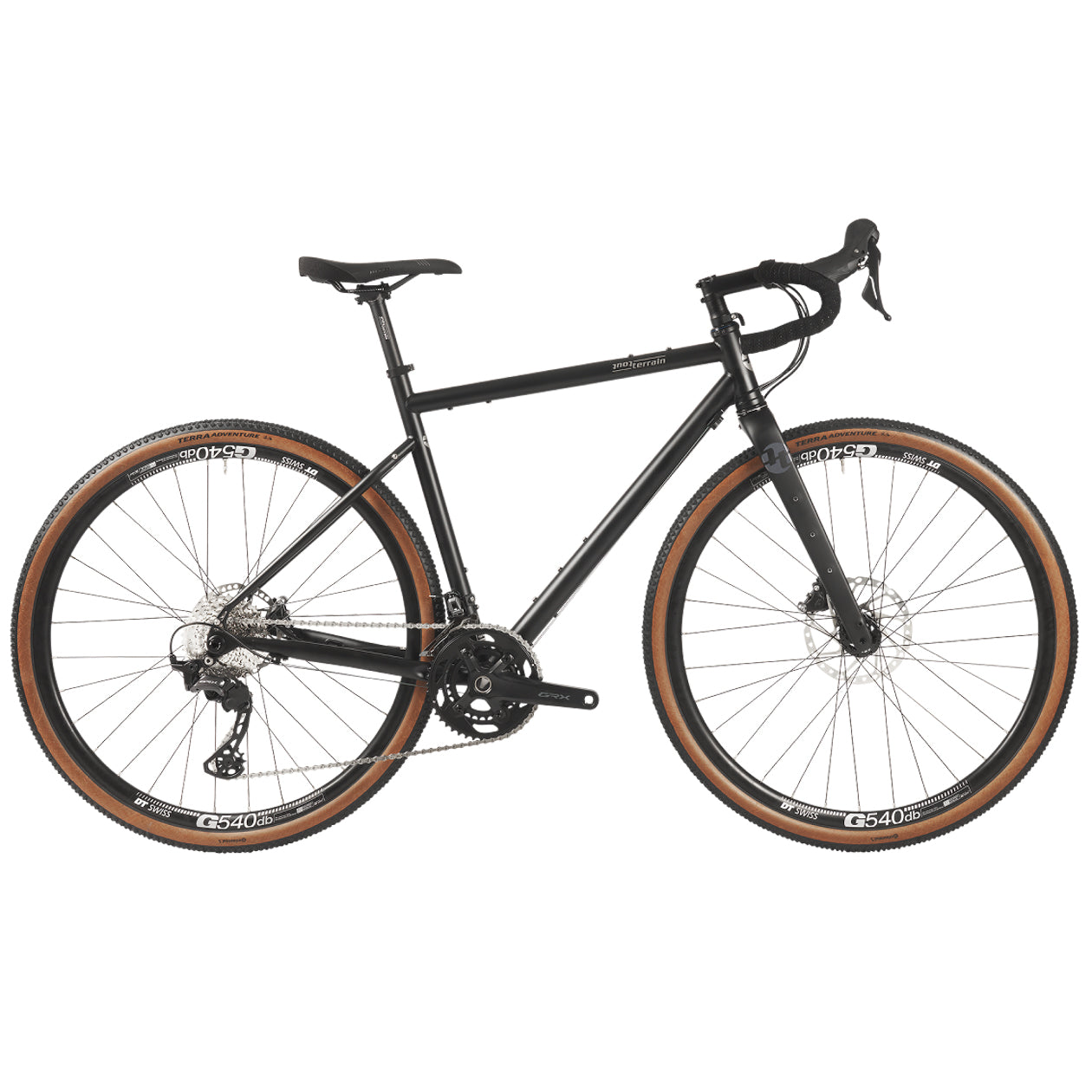

A dynamic gravel bike for fast rides with modern, agile, race-ready geometry, a lightweight carbon gravel fork and the mechanical Shimano GRX drivetrain.
| Rims: | DT Swiss G540 |
|---|---|
| Fork: | Tout Terrain Gravel Fork | Carbon fork |
| Handles: | Fizik Microtex Performance handlebar tape |
| Rear wheel hub: | Tout Terrain EX-R1 - 10/11/12S | Centerlock brake disc mount |
| Steering stop: | Tout Terrain Ergo-Stop II |
| Handlebars: | Ritchey VentureMax | 420mm (S, M) / 460mm (L, XL) |
| Pedals: | not included in the scope of delivery |
| Tires: | Continental Terra Adventure (black/transparent) | 28"x2.0" / 50-622 |
| Saddle: | WTB Volt Medium |
| Seatpost: | Tout Terrain | 27.2mm |
| Mudguard: | Retrofittable |
| Tax rate: | acros / Cane Creek 10 | EC34 / EC34 |
| Stem: | Tout Terrain | 70mm | +/- 6° |
| Front wheel hub: | Tout Terrain EX-F1 | Centerlock brake disc mount |
| Drive: | Shimano GRX 2x12 |
| Brake: | Shimano GRX | BR-RX400 | Gravel disc brake |
| Model: | Ceres |
| Frame: | Ceres steel frame | Tout Terrain Thermochrom tubing |
| Size: | S, M, L, XL |
| Maximum weight allowed: | 120 kg (frame) |
| Axle dimensions: | Front: 12/100mm thru axle | Rear: 12/142mm thru axle (UDH compatible) |
| Frame color: | matte black |
| Brake mount: | Front: Flat Mount 160-180mm | Rear: Flat Mount 160-180mm |
| Brake disc size (front/rear): | 180mm/160mm |
| Bottle holder mounting positions: | 4 (frame) + 2 (fork) |
| Wheel size: | 28" |
| Weight: | from 11.4 kg |
| Gearshift lever: | Shimano GRX | ST-RX610 |
| Front derailleur: | Shimano GRX | FD-RX820-F | 2x12 |
| Shifting mechanism: | Shimano GRX | RD-RX820 | 2x12 |
| Crank: | Shimano GRX | FC-RX610-2 | 46/30Z | 172.5mm |
| Cassette: | Shimano 105 | CS-HG710-12 | 11-36Z | 12x |
| Chain / Belt: | SRAM GX Eagle Transmission Flattop | 12x |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 490 | 530 | 570 | 610 |
| A1 | SEAT TUBE LENGTH (mm) | 430 | 470 | 510 | 550 |
| B | UPPER PIPE LENGTH (mm) | 540 | 560 | 580 | 600 |
| C | CONTROL TUBE LENGTH (mm) | 115 | 135 | 155 | 175 |
| D | CHAINSTAY LENGTH (mm) | 430 | 430 | 430 | 430 |
| E | Wheelbase (mm) | 1020 | 1036 | 1046 | 1060 |
| F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
| G | CONTROL PIPE ANGLE (*) | 71 | 71 | 71.5 | 71.5 |
| H | SEAT TUBE ANGLE (*) | 74 | 73.5 | 73 | 72.5 |
| I | STACK (mm) | 559 | 578 | 599 | 618 |
| J | REACH (mm) | 380 | 389 | 397 | 405 |
| K | OVERLOAD HEIGHT (mm) | 776 | 804 | 833 | 860 |
| L | FORK INSTALLATION HEIGHT (mm) | 407 | 407 | 407 | 407 |
| M | FORK OFFSET (mm) | 45 | 45 | 45 | 45 |
