Tout Terrain
Ceres GT Select 5.1
Ceres GT Select 5.1

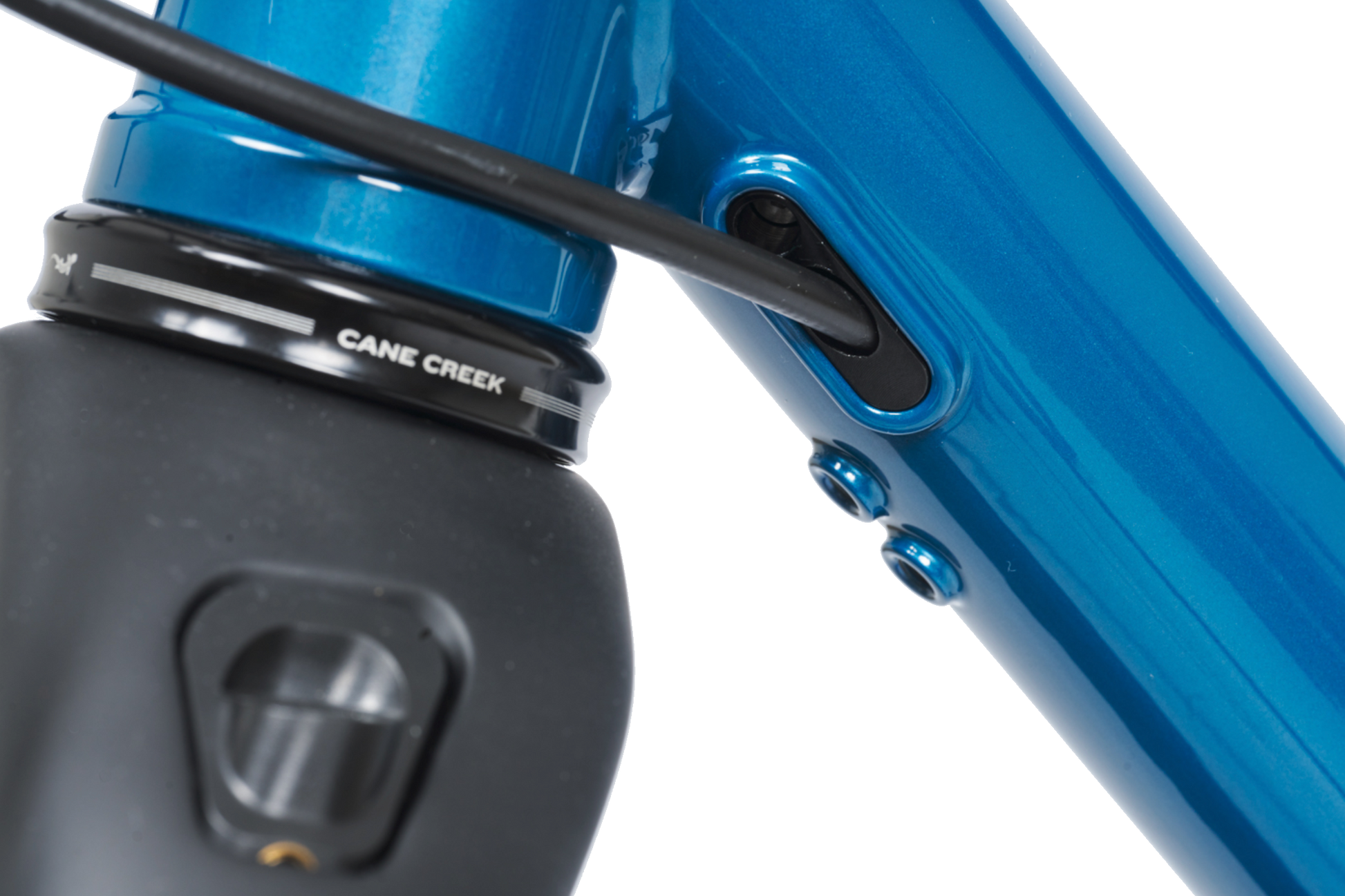

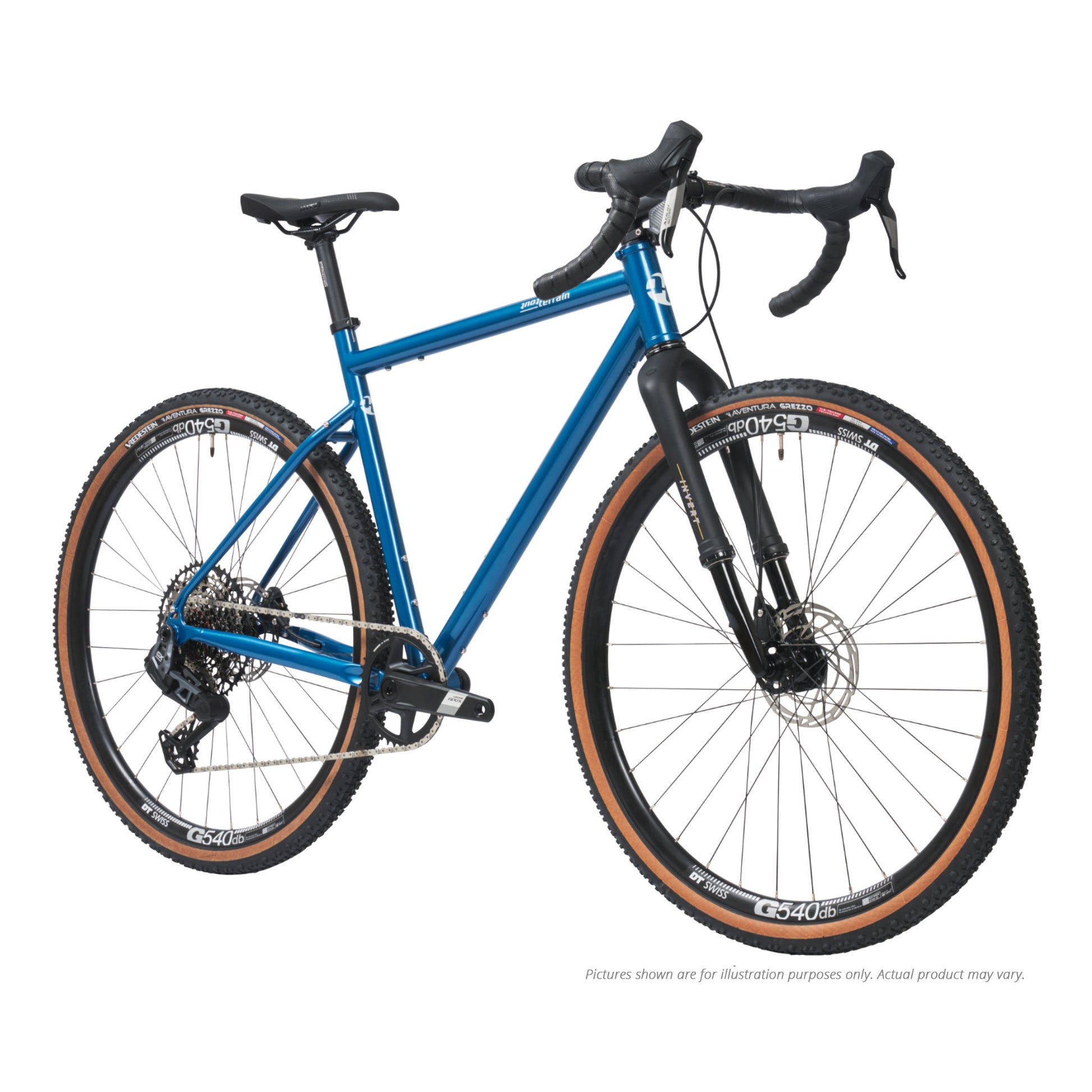

Shown with Optional Cane Creek fork. Production model will be fitted with the Tout Terrain Gravel Fork SL
From gravel races to endless ultra-adventures, cycling continues moving further off the beaten track. And when resilience and speed are required, Ceres is ready to roll—fast. Our sportiest frame to date, Ceres provides improved acceleration, vibration-dampening comfort, and an aerodynamic riding position. Further updates include integrated cable routing and optimization for electronic shifting systems. And when the time comes to venture further afield for an extended bikepacking journey or competition, Ceres is built with plenty of points to mount bags, extra bottles, and all your exploration essentials.
MODELL |
Select 5.1 |
|
|
Frame: |
Ceres Steele frame | Tout Terrain Thermocrom tubing |
Frame sizes: |
S, M, L, XL |
Frame color: |
Acqua Bella metallic glossy |
Fork: |
Tout Terrain Gravel Fork SL | carbon fork |
Axle: |
Front: 12/100mm thru-axle | Hinten: 12/142mm thre-axle (UDH compatibel) |
Break mount: |
Rear: Flat Mount 160-180mm | Hinten: Flat Mount 160-180mm |
Drivertrain: |
SRAM Apex AXS / GX Eagle Transmission 1x12 |
Crankset: |
SRAM Apex 1 Wide | 40T | 172,5mm |
Cassette: |
SRAM XS-1270 Eagle Transmission | 10-52T | 12s |
Gear ratio: |
|
Bottom bracket |
SRAM DUB T47 85.5 |
Front Derailleur |
n/a |
Derailleur |
SRAM GX Eagle Transmission AXS | 1x12 T-Type |
Chain: |
SRAM GX Eagle Transmission Flattop | 12-fach |
|
|
Shift lever: |
SRAM Apex AXS | ED-APX-D1 |
Steering stop: |
Tout Terrain Ergo-Stop II |
Headset: |
Acros | EC34 / EC34 |
Stem: |
Tout Terrain | 70mm | +/- 6° |
Hanldebar: |
Tout Terrain gravel dropbar | 440mm | 16° Flare |
Breaks: |
SRAM Apex AXS | gravel disc brake |
Break discs: |
Jagwire 180/160mm | Centerlock |
Grips: |
Fizik Microtex Performance bat tape |
Wheel size: |
28" |
Front hub: |
Tout Terrain EX-F1 | Centerlock |
Rear hub: |
Tout Terrain EX-R1 - 10/11S | Centerlock |
Tires: |
Vredestein Aventura | 700Cx44mm / 44-622 |
Rims: |
DT Swiss G540 |
Pedals: |
n/a |
Rack: |
|
Seatpost: |
Tout Terrain SP1-Zero | 27,2mm |
Saddle: |
WTB Volt medium |
Lighting: |
|
Fenders: |
N/A |
Kickstand |
|
Capacity (Total/Rack) |
120kg |
Mounting positions |
4 (frame) + 2 (fork) |
Price (US) |
$4,099 |
S | M | L | XL | ||
A | Seat Tube (mm) | 490 | 530 | 570 | 610 |
A1 | Seat Tube (mm) | 430 | 470 | 510 | 550 |
B | Top Tube (mm) | 540 | 560 | 580 | 600 |
C | Head Tube (mm) | 115 | 135 | 155 | 175 |
D | Chain Stay (mm) | 430 | 430 | 430 | 430 |
E | Wheelbase (mm) | 1020 | 1036 | 1046 | 1060 |
F | BB Drop (mm) | 70 | 70 | 70 | 70 |
G | Head Tube Angle (*) | 71 | 71 | 71.5 | 71.5 |
H | Seat Tube Angle (*) | 74 | 73.5 | 73 | 72.5 |
I | Stack (mm) | 559 | 578 | 599 | 618 |
J | Reach (mm) | 380 | 389 | 397 | 405 |
K | Standover (mm) | 416 | 444 | 473 | 500 |
L | Axle To Crown (mm) | 407 | 407 | 407 | 407 |
M | Fork Offset (mm) | 45 | 45 | 45 |
45 |
