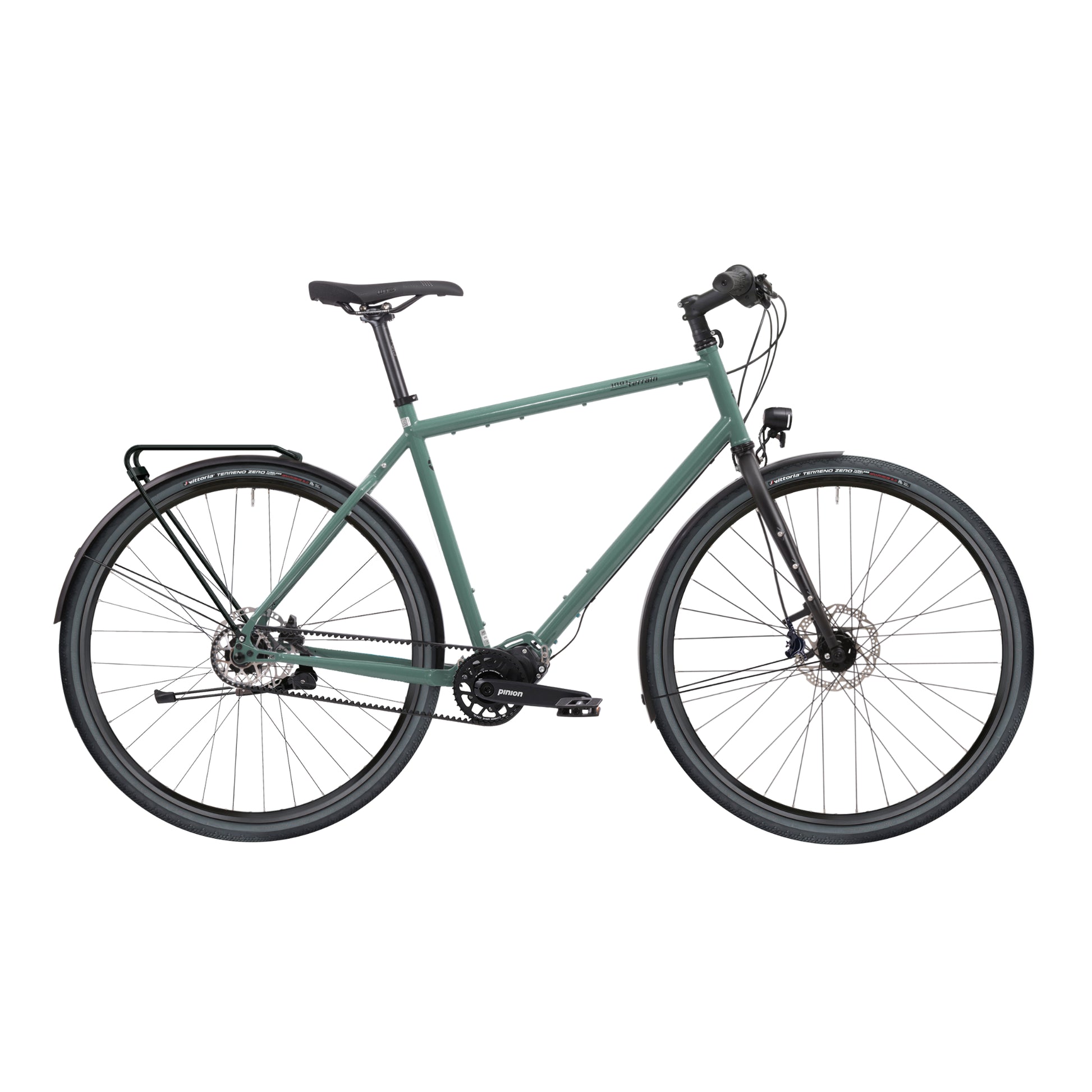

Tribeca Xpress Select 3.1

Comfortable, dynamic, powerful - complete with lighting, mudguard and luggage rack, Pinion gearbox and flat bar for an upright sitting position. To go far beyond everyday life...

SPECIFICATIONS

Specifications are subject to change at any time without notice.

FRAME: Tribeca Xpress steel frame | Tout Terrain Stratocrom tubing

FRAME SIZES: S, M, L, XL

FRAME COLOR: Mint turquoise shiny

FORK: Tout Terrain Allroad Fork | Steel fork

AXLE: Front: 12/100mm thru axle | Rear: 12/142mm thru axle

BRAKE MOUNT: Front: Flat Mount 140-160mm | Rear: Flat Mount 160-180mm

DRIVETRAIN: Pinion C1.12 gearshift | Gates Carbon Drive belt drive

CRANK: Pinion forged | CDX:SL 39T pulley | 175mm

CASSETTE: Gates Carbon Drive CDX Centertrack | 32T

DRIVE GEAR COMBINATION: 39/32 | 600%

INTERNAL GEARBOX: Pinion

CHAIN/BELT: Gates Carbon Drive CDX Centertrack belt

CHAIN/BELT TENSIONING SYSTEM: Tout Terrain TBA III (pivoting gear bridge)

SHIFT LEVER: Pinion twist handle

STEERING STOP: Tout Terrain Ergo-Stop II

HEADSET: Cane Creek 10 / Acros | EC34 / EC34

STEM: Tout Terrain | 100mm | +/- 6°

HANDLEBARS: Tout Terrain Ergo Tour | 640mm

BRAKE: Magura MT C4 | hydraulic disc brake

BRAKE DISCS: Magura 160mm/160mm | Center lock

HANDLEBAR TAPE: Tout Terrain Ergo screw grips

WHEEL SIZE: 28"/700C

FRONT WHEEL HUB: Shutter PL-7 hub dynamo | Centerlock brake disc mount

REAR WHEEL HUB: Tout Terrain EX-R2 - 1S | Centerlock brake disc mount

TIRES: Vittoria Terreno Zero | 700Cx40mm / 40-622

RIMS: Ryde Andra 321

MUDGUARDSKS Edge AL 46mm | black Matt

LUGGAGE CARRIERSKS Infinity GT6

SEAT POST: Tout Terrain SP1-Zero | 27.2mm

SADDLE: WTB Volt Medium

LIGHTING: Busch + Müller IQ-XS & SKS Infinity Rear light

KICKSTAND: Atran Velo side stand

PEDALS: Tout Terrain Urban Pedal

CAPACITY (FRAME/RACK): 130kg/15kg

BOTTLE HOLDER MOUNTING POSITIONS: 4

		S	M	L	XL
A	SEAT TUBE LENGTH (mm)	470	510	550	590
A1	SEAT TUBE LENGTH (mm)	408	449	489	530
B	TOP TUBE LENGTH (mm)	545	565	585	605
C	HEAD TUBE LENGTH (mm)	135	155	185	205
D	CHAIN ​​STAY LENGTH (mm)	455	455	455	455
E	WHEELBASE (mm)	1053	1063	1084	1093
F	BOTTOM BRACKET LOWERING (mm)	65	65	65	65
G	HEAD TUBE ANGLE (*)	70.5	71	71	71.5
H	SEAT TUBE ANGLE (*)	73.5	73	73	72.5
I	STACK (mm)	564	585	613	634
J	REACH (mm)	378	386	398	405
K	OVERHANG HEIGHT (mm)	769	798	831	860
L	FORK INSTALLATION HEIGHT (mm)	400	400	400	400
M	FORK OFFSET (mm)	45	45	45	45
