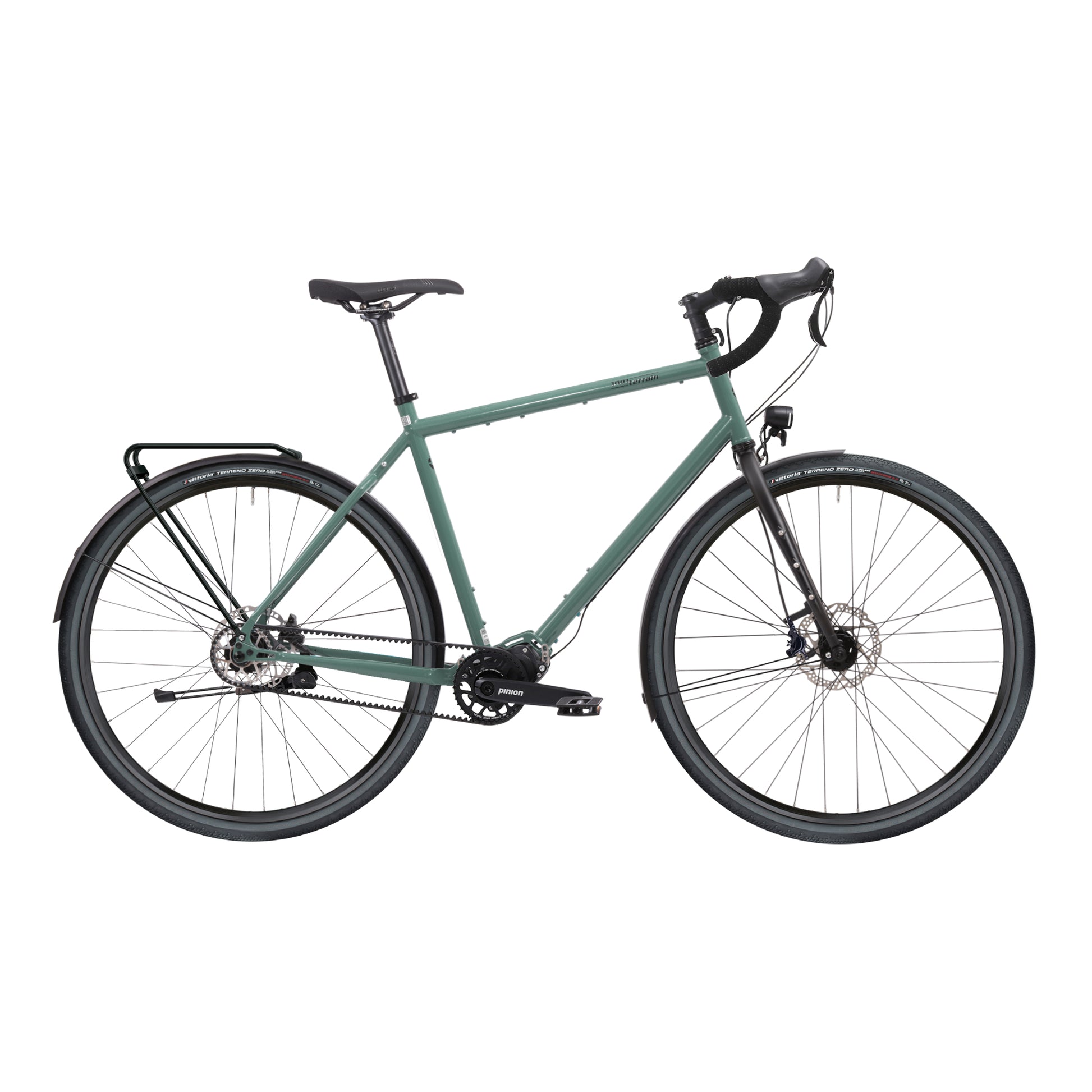

Tribeca Xpress GT Select 3.1

Tout Terrain Tribeca Xpress GT Select 3.1: The Ultimate Pinion Belt-Drive All-Road Commuter

Take a shortcut through the park or just take the whole week off—the Tribeca Xpress GT is ready to take you far beyond your horizons. This bike is a true all-rounder: a sophisticated city bike with a premium Pinion drive and a reliable Gates Carbon Drive belt, perfectly at home on all surfaces from paved roads to rugged gravel paths.

Enjoy years of worry-free cycling thanks to the unbeatable combination of the Pinion C1.12 gearbox and the zero-maintenance Gates Carbon Drive. The robust Tribeca Xpress steel frame uses the Tout Terrain Stratocrom Tube Set, paired with an Allroad Fork, providing legendary durability and a comfortable ride.

The versatile 28-inch wheels are optimized for speed and efficiency, while the drop-style handlebars with the Shift:R Road System enable smooth gear changes and offer a variety of comfortable riding positions for long days out. The bike comes fully equipped with a Shutter PL-7 hub dynamo, premium Busch + Müller lighting, and SKS fenders/racks, making it an exceptional touring and commuter bike.

CORE FEATURES FOR THE ADVENTUROUS COMMUTER:

Drive System: Maintenance-free Pinion C1.12 Gearbox and Gates Carbon Belt Drive.

Frame: Durable and comfortable Tribeca Xpress steel frame with Tout Terrain Stratocrom Tube Set.

Versatility: True All-Road capability, excelling on City streets and Gravel paths.

Capacity: High maximum capacity of 130kg (frame) and 15kg (rack).

Components: TRP Hylex hydraulic disc brakes, Shutter PL-7 hub dynamo, and full SKS mudguard/rack setup.

SPECIFICATIONS

Specifications are subject to change at any time without notice.

FRAME: Tribeca Xpress steel frame | Tout Terrain Stratocrom Tube Set

FRAME SIZES: S, M, L, XL

FRAME COLOR: Mint turquoise shiny

FORK: Tout Terrain Allroad Fork | Steel fork

AXLE DIMENSION: Front: 12/100mm thru axle | Rear: 12/142mm thru axle

BRAKE MOUNT: Front: Flat Mount 140-160mm | Rear: Flat Mount 160-180mm

DRIVE: Pinion C1.12 gearshift | Gates Carbon Drive belt drive

CRANK: Pinion forged | CDX:SL 39T pulley | 175mm

CASSETTE: Gates Carbon Drive CDX Centertrack | 32T

TRANSLATION: 39/32 | 600%

BOTTOM BRACKET: Pinion

CHAIN/BELT: Gates Carbon Drive CDX Centertrack belt

CHAIN/BELT TENSIONING SYSTEM: Tout Terrain TBA III (pivoting gear bridge)

SHIFT LEVER: Tout Terrain Shift: R Road for Pinion

STEERING STOP: Tout Terrain Ergo-Stop II

HEADSET: Cane Creek 10 / Acros | EC34 / EC34

STEM: Tout Terrain | 70mm | +/- 6°

HANDLEBARS: Tout Terrain Allroad racing handlebars | 440mm | 8° flare

BRAKE: TRP Hylex | hydraulic disc brake

BRAKE DISCS: Jagwire 160mm/160mm | Center lock

HANDLEBAR TAPE: Fizik Microtex Performance handlebar tape

WHEEL SIZE: 28"/700C

FRONT WHEEL HUB: Shutter PL-7 hub dynamo | Centerlock brake disc mount

REAR WHEEL HUB: Tout Terrain EX-R2 - 1S | Centerlock brake disc mount

TIRES: Vittoria Terreno Zero | 700Cx40mm / 40-622

RIMS: Ryde Andra 321

MUDGUARD: SKS Edge AL 46mm | black Matt

LUGGAGE CARRIER: SKS Infinity GT6

SEAT POST: Tout Terrain SP1-Zero | 27.2mm

SADDLE: WTB Volt Medium

LIGHTING: Busch + Müller IQ-XS & SKS Infinity Rear light

KICKSTAND: Atran Velo side stand

PEDALS: Tout Terrain Urban Pedal

CAPACITY (FRAME/RACK): 130kg/15kg

BOTTLE HOLDER MOUNTING POSITIONS: 4

		S	M	L	XL
A	SEAT TUBE LENGTH (mm)	470	510	550	590
A1	SEAT TUBE LENGTH (mm)	408	449	489	530
B	TOP TUBE LENGTH (mm)	545	565	585	605
C	HEAD TUBE LENGTH (mm)	135	155	185	205
D	CHAIN STAY LENGTH (mm)	455	455	455	455
E	WHEELBASE (mm)	1053	1063	1084	1093
F	BOTTOM BRACKET LOWERING (mm)	65	65	65	65
G	HEAD TUBE ANGLE (*)	70.5	71	71	71.5
H	SEAT TUBE ANGLE (*)	73.5	73	73	72.5
I	STACK (mm)	564	585	613	634
J	REACH (mm)	378	386	398	405
K	OVERHANG HEIGHT (mm)	769	798	831	860
L	FORK INSTALLATION HEIGHT (mm)	400	400	400	400
M	FORK OFFSET(mm)	45	45	45	45
