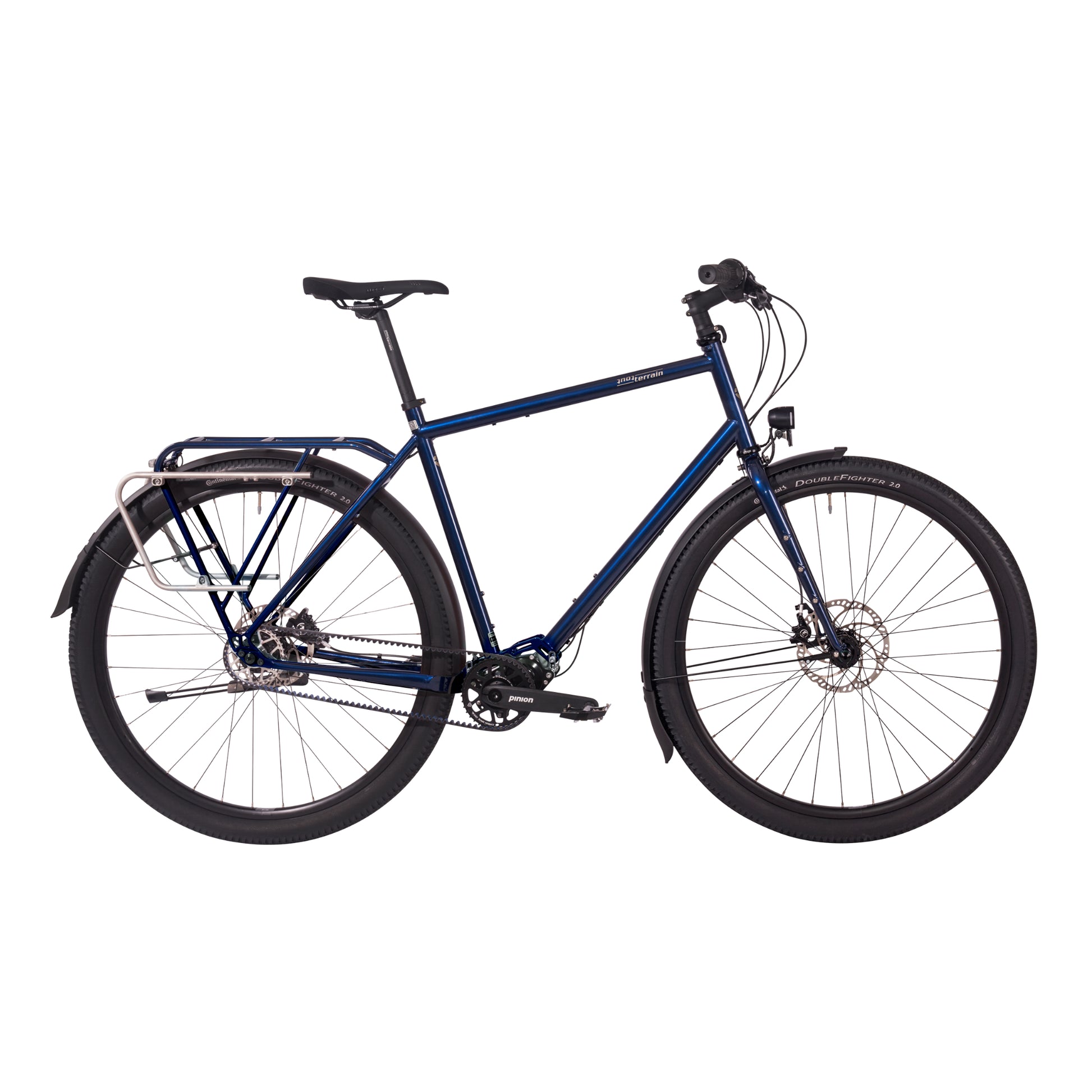

The Tanami Xplore II 29 Select 3.1 is a high-performance steel frame expedition and touring bike engineered for maximum comfort and reliability on long-distance journeys. Part of the Tout Terrain Expedition family, the Tanami is built for any challenge, from a fast-paced road trip to a leisurely gravel tour.
Key Features for World Travel:
Ultimate Reliability: Features the robust Pinion C1.12 gearbox paired with the low-maintenance Gates Carbon Drive belt drive. This sealed system offers a massive 600% gear range and superior reliability in all conditions.
Comfort & Stability: Built around a durable Tanami Xplore steel frame and equipped with large 29" (700C) wheels for smooth, comfortable rolling over every mile.
Ready to Load: Comes with the Tout Terrain Expedition Rack II and integrated trekking luggage rack, offering a high total capacity of 180kg (rider/bike/luggage) and a rack capacity of 40kg.
Integrated Components: Fully equipped for global travel with an integrated hub dynamo (Shutter PL-7), Busch + Müller IQ-XS & Line Small lighting, and full SKS Bluemels 60mm mudguards.
Stopping Power: Features powerful Magura MT4 hydraulic disc brakes with 180mm/160mm rotors for confident control even when fully loaded.
The Tanami Xplore II 29 Select 3.1 is the perfect choice for the dedicated world traveler seeking a reliable, low-maintenance touring companion.
SPECIFICATIONS
Specifications are subject to change at any time without notice.
FRAME: Tanami Xplore steel frame | Tout Terrain Thermocrom tubing
FRAME SIZES: M, L, XL
FRAME COLOR: Deep Ocean Blue Metallic Shiny
FORK: Tout Terrain Expedition Fork | Steel fork
AXLE DIMENSION: Front: 12/100mm thru axle | Rear: 12/142mm thru axle
BRAKE MOUNT: Front: IS2000 | Rear: IS2000
DRIVE: Pinion C1.12 gearshift | Gates Carbon Drive belt drive
CRANK: Pinion forged | CDX:SL 39T pulley | 175mm
CASSETTE: Gates Carbon Drive CDX Centertrack | 32T
COGS: 39/32 | 600%
CHAIN/BELT: Gates Carbon Drive CDX Centertrack belt
CHAIN/BELT TENSIONING SYSTEM: Tout Terrain TBA III (pivoting gear bridge)
SHIFT LEVER: Pinion twist handle
STEERING STOP: Tout Terrain Ergo-Stop II
HEADSET: Cane Creek 10 / Acros | EC34 / EC34
STEM: Tout Terrain | 100mm | +/- 6°
HANDLEBARS: Tout Terrain Ergo | 720mm
BRAKE: Magura MT4 | hydraulic disc brake
BRAKE DISCS: Magura 180mm/160mm | Center lock
HANDLEBAR: Tout Terrain Ergo screw grips
WHEEL SIZE: 28"/700C
FRONT WHEEL HUB: Shutter PL-7 hub dynamo | Centerlock brake disc mount
REAR WHEEL HUB: Tout Terrain EX-R2 - 1S | Centerlock brake disc mount
TIRES: Vittoria Randonneur Tech | 29"x2.0" / 50-622
RIMS: Ryde Andra 321
MUDGUARD: SKS Bluemels 60mm | XXL splash guard | black Matt
LUGGAGE CARRIER: Tout Terrain Expedition Rack II with EX Rails
SEAT POST: Tout Terrain SP1-Zero | 27.2mm
SADDLE: WTB Volt Medium
LIGHTING: Busch + Müller IQ-XS & Line Small
KICKSTAND: Atran Velo side stand
PEDALS: Tout Terrain Urban Pedal
CAPACITY (FRAME/RACK): 180kg/40kg
BOTTLE HOLDER MOUNTING POSITIONS: 4 (frame) + 2 (fork)
| M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 510 | 560 | 610 |
| A1 | SEAT TUBE LENGTH (mm) | 450 | 501 | 552 |
| B | TOP TUBE LENGTH (mm) | 575 | 595 | 615 |
| C | HEAD TUBE (mm) | 175 | 205 | 225 |
| D | CHAINSTAY LENGTH (mm) | 455 | 455 | 455 |
| E | WHEELBASE (mm) | 1077 | 1087 | 1095 |
| F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 |
| G | HEAD TUBE ANGLE(*) | 70.5 | 71 | 71.5 |
| H | SEAT TUBE ANGLE (*) | 73 | 72.5 | 72 |
| I | STACK (mm) | 614 | 644 | 665 |
| J | REACH (mm) | 387 | 392 | 399 |
| K | STANDOVER HEIGHT (mm) | 821 | 859 | 892 |
| L | AXLE TO CROWN (mm) | 407 | 407 | 407 |
| M | FORK OFFSET(mm) | 45 | 45 | 45 |
