Tout Terrain

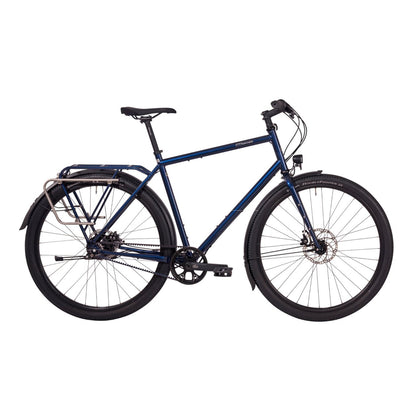

Tanami II 29 Select 3.1

Tanami II 29 Select 3.1

Regular price $5,883.90 USD
Regular price Sale price $5,883.90 USD
Sale Sold out
Shipping calculated at checkout.

Designed to thrive far off the beaten track, the Tanami II brings together all-day riding comfort with the capability to explore more paved roads, gravel tracks, rough terrain and technical trails. Available with a Gates Carbon Belt Drive-compatible Rohloff Speedhub or a standard derailleur transmission, combined with the smooth-rolling 29” wheelset and robust all-road tires, the Tanami II let’s nothing stand in its way. For multi-day travel, our integrated Expedition Rack II and updated Expedition Fork II provide plenty of points to mount touring bags and water bottles, with the hand-built Thermocrom steel frame already optimized for touring—and ready to be customized to your specifications and unique style.


Tanami II 29 Select 3.1
Frame: Tanami II steel frame | Tout Terrain Thermocrom tubing
Frame Sizes: M, L, XL
Frame Color: Deep Ocean Blue Metallic Glossy
Fork: Tout Terrain Expedition Fork | steel fork
Hub Spacing: Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle
Brake Mount Type: Front: IS2000 | Rear: IS2000
Drivetrain: Rohloff Speedhub 500/14 Internal Geared Hub | Gates Carbon Belt Drive
Crankset: Gates Carbon Drive S550 | CDX 50T belt spider | 175mm
Casette: Gates Carbon Drive CDX Centertrack | 19T
Gearing: 50/19 | 526%
Bottom bracket: FSA MegaExo | BSA 68mm
Chain / belt: Gates Carbon Drive CDX Centertrack belt
Belt/Chain Tensioning System: Tout Terrain VBA (Eccentric Bottom Bracket)
Gear lever: Rohloff twist shifter
Steering stop: Tout Terrain Ergo-Stop II
Headset: Acros AH-34 | EC34 / EC34
Stem: Tout Terrain | 100mm | +/- 6°
Handlebar Type: Tout Terrain Ergo | 720mm
Brake: Magura MT4 | hydraulic disc brake
Disc rotors: Magura 180mm/160mm | Centerlock
Grips: Tout Terrain Ergo lock-on grip
Wheel Size: 28" (700C)
Front hub: Shutter PL-7 dynamo hub | Centerlock rotor interface
Rear hub: Rohloff Speedhub 500/14 | 14-speed Internal Geared Hub for 12mm/142mm thru-axle | 4-Bolt brake mount
Tires: Vittoria Randonneur Tech | 29"x2.0" / 50-622
Rims: Ryde Andra 321
Mudguard: SKS Bluemels 60mm | XXL splash guard | matte black
Rack: Tout Terrain Expedition Rack II with EX Rails
Seat post: Tout Terrain SP1-Zero | 27.2mm
Saddle: WTB Volt Medium
Lights: Busch + Müller IQ-XS & Line Small
Kick stand: Atran Velo kickstand
Pedals: Tout Terrain Urban Pedal
Capacity (Frame / Rack): 180 kg / 40 kg
Bottle Cage Mounts: 4 (frame) + 2 (fork)

Details are subject to change without further notice

A SEAT TUBE LEGNTH (mm) 510 560 610
A1 SEAT TUBE LEGNTH (mm) 450 501 552
B TOP TUBE LEGNTH (mm) 575 595 615
C HEAD TUBE (mm) 175 205 225
D CHAINSTAY LENGTH (mm) 455 455 455
E WHEELBASE (mm) 1077 1087 1095
G HEAD TUBE ANGLE(*) 70.5 71 71.5
H SEAT TUBE ANGLE (*) 73 72.5 72
I STACK (mm) 614 644 665
J REACH (mm) 387 392 399
K STANDOVER HEIGHT (mm) 821 859 892
L AXLE TO CROWN (mm) 407 407 407
M FORK OFFSET(mm) 45 45 45
