Tout Terrain

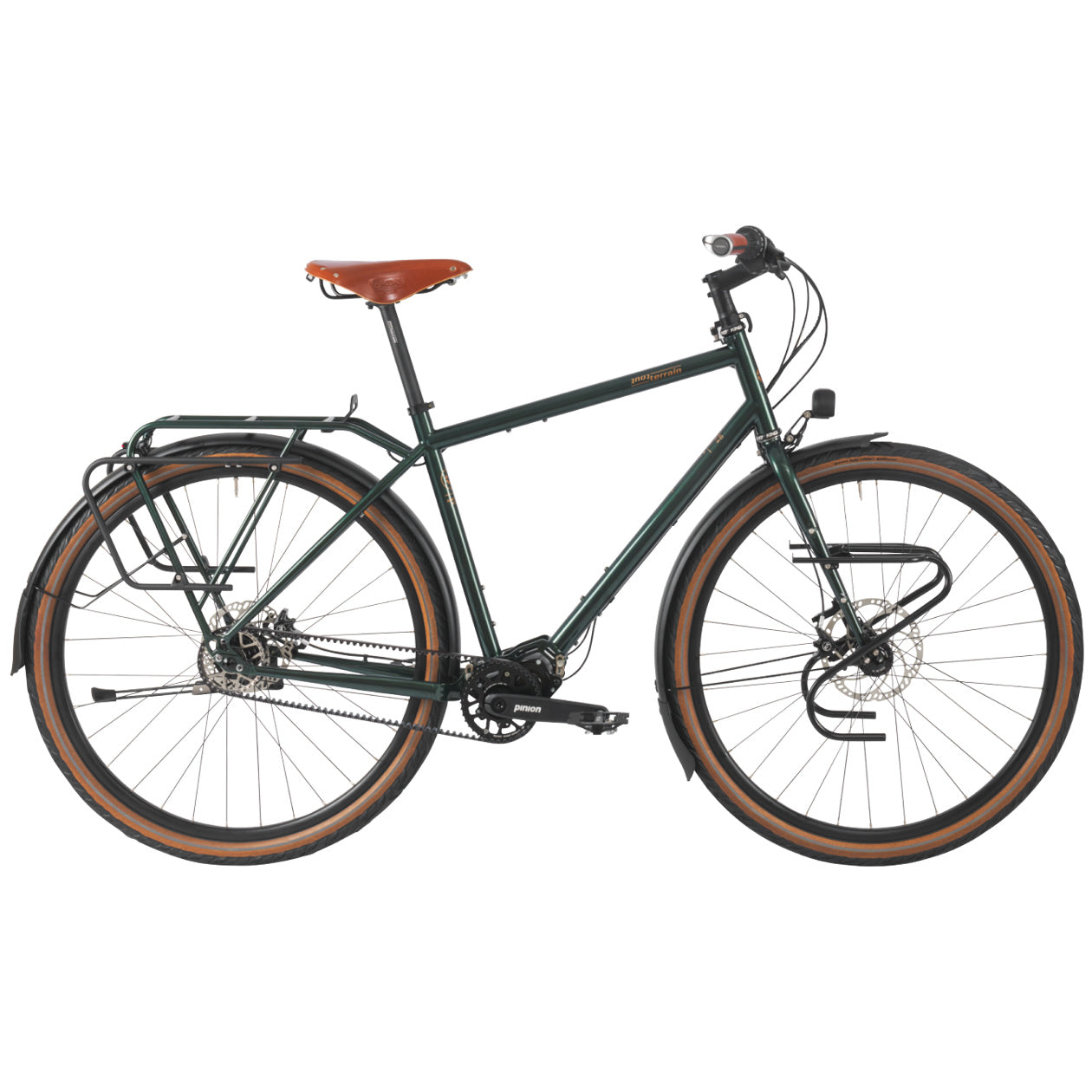

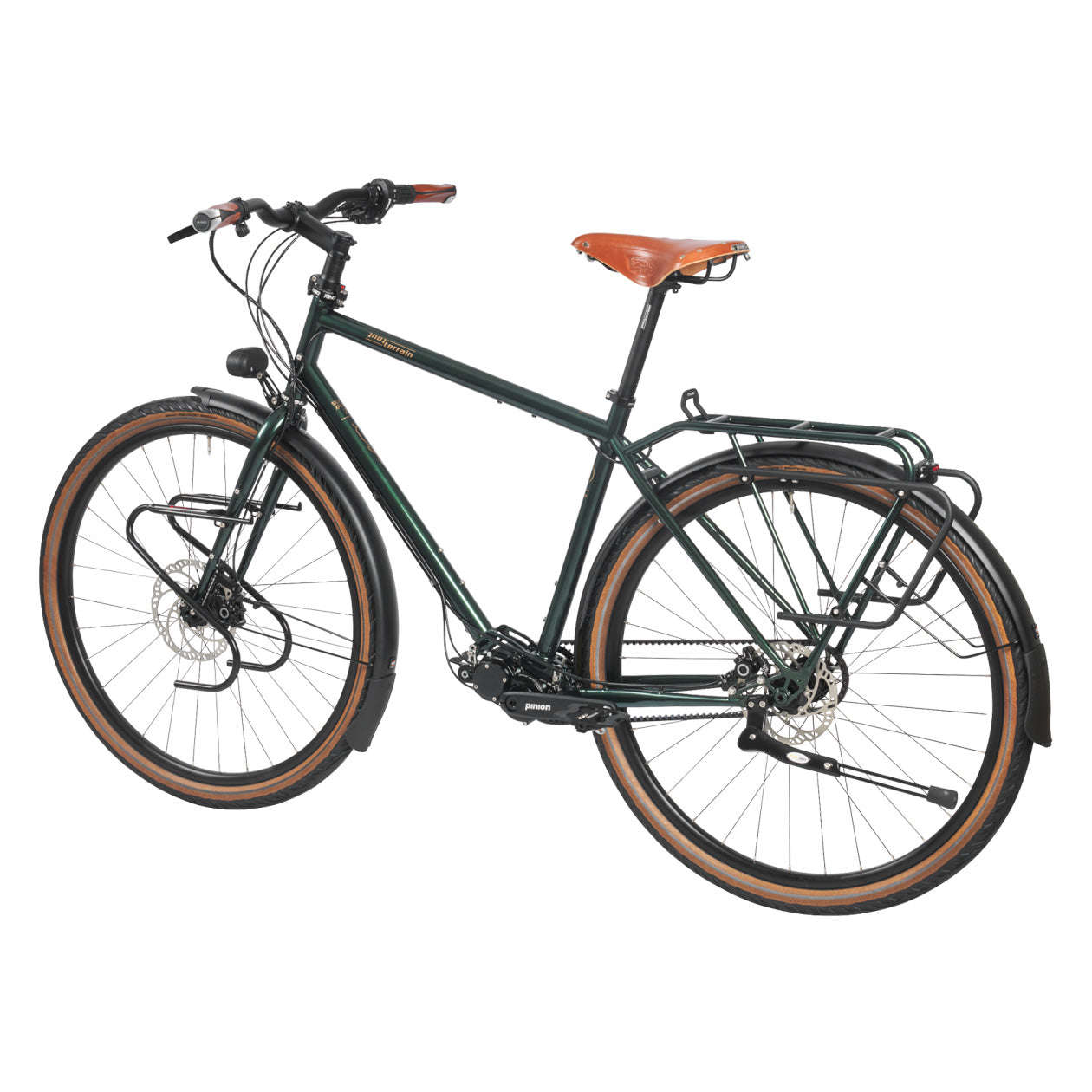

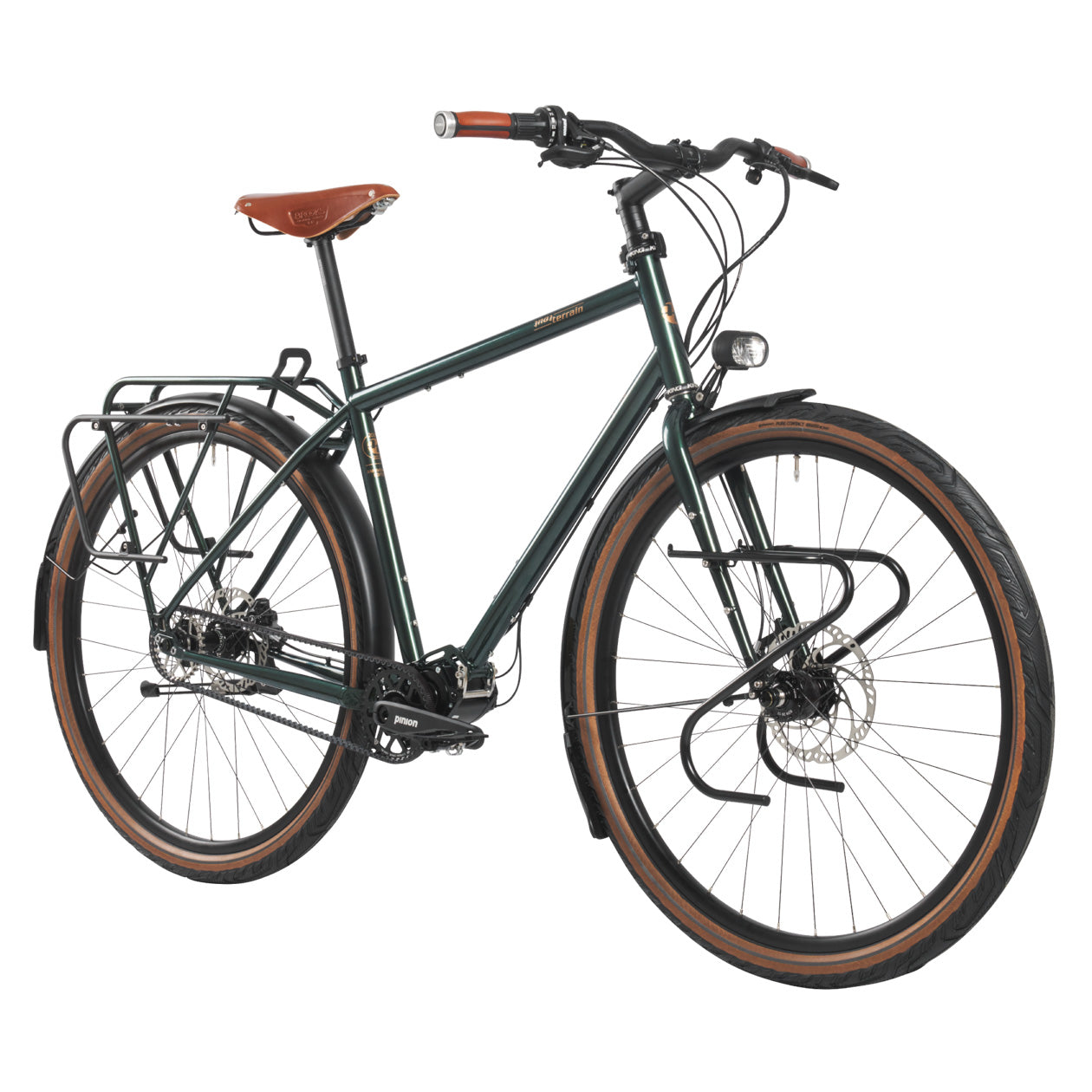

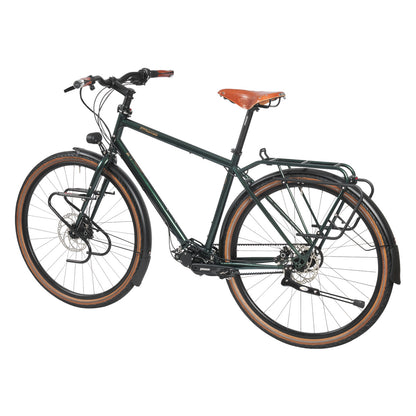

Silkroad Xplore II 29 Anniversary edition

Silkroad Xplore II 29 Anniversary edition

Regular price $8,399.00 USD
Regular price Sale price $8,399.00 USD
Sale Sold out
Shipping calculated at checkout.

For ambitious globetrotters. Its been a true world traveler for more than twenty years.

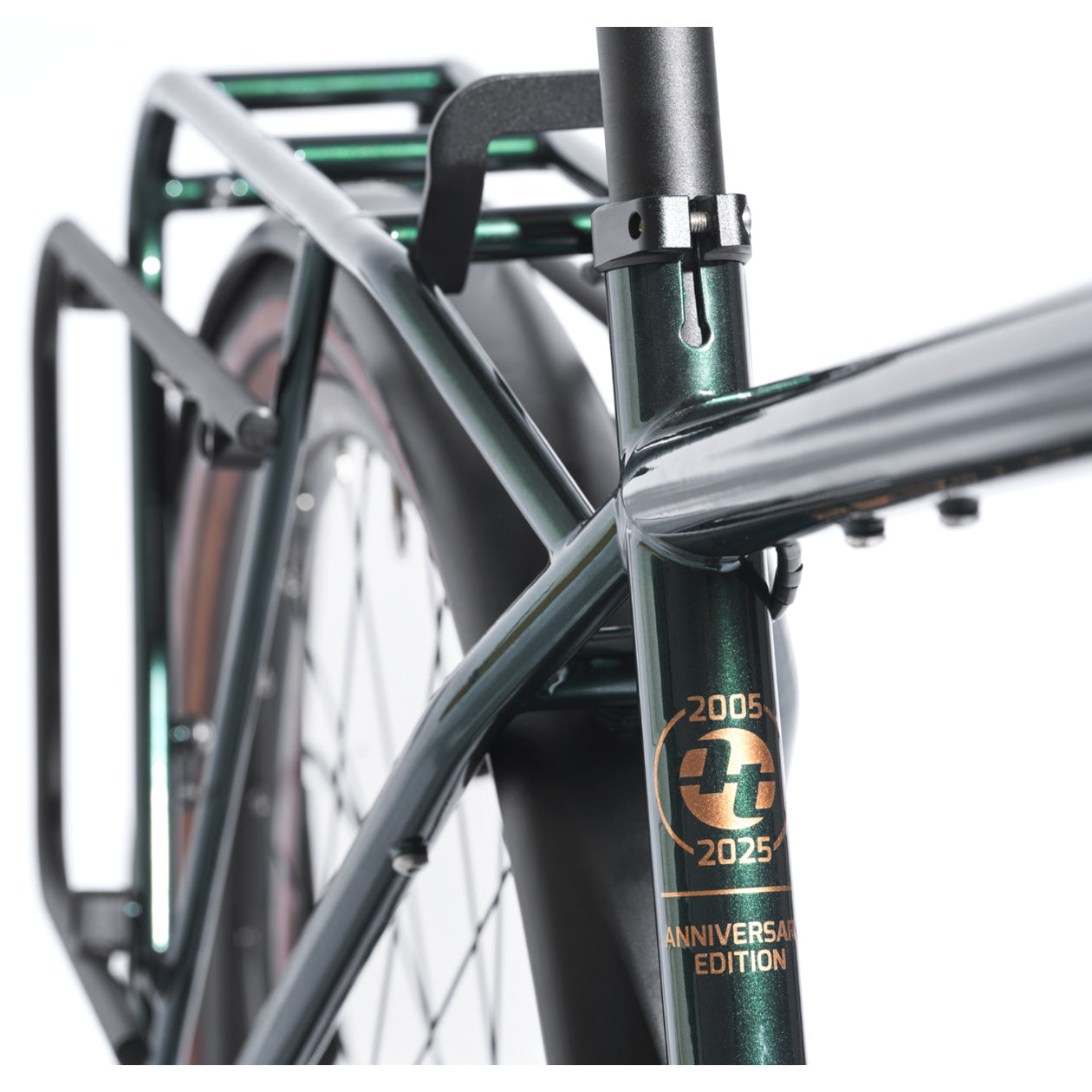

This exclusive Silkroad edition features a unique color scheme with perfectly matched components, offering the ultimate in technology from our preferred component manufacturers. Designed for a life on two wheels and the kind of adventures that have a beginning but no end, the Silkroad has been circling the globe in one form or another for over two decades. Its ultra-robust steel frame incorporates our signature innovations for demanding adventures—including integrated luggage racks, proprietary steering locks, and the best drivetrain with the Pinion 18-speed transmission. Pack your bags and get ready to explore the world!



Specifications

Specifications are subject to change without notice.

Terrain

Allroad

Frame shape

diamond

Handlebar type

Flat bar

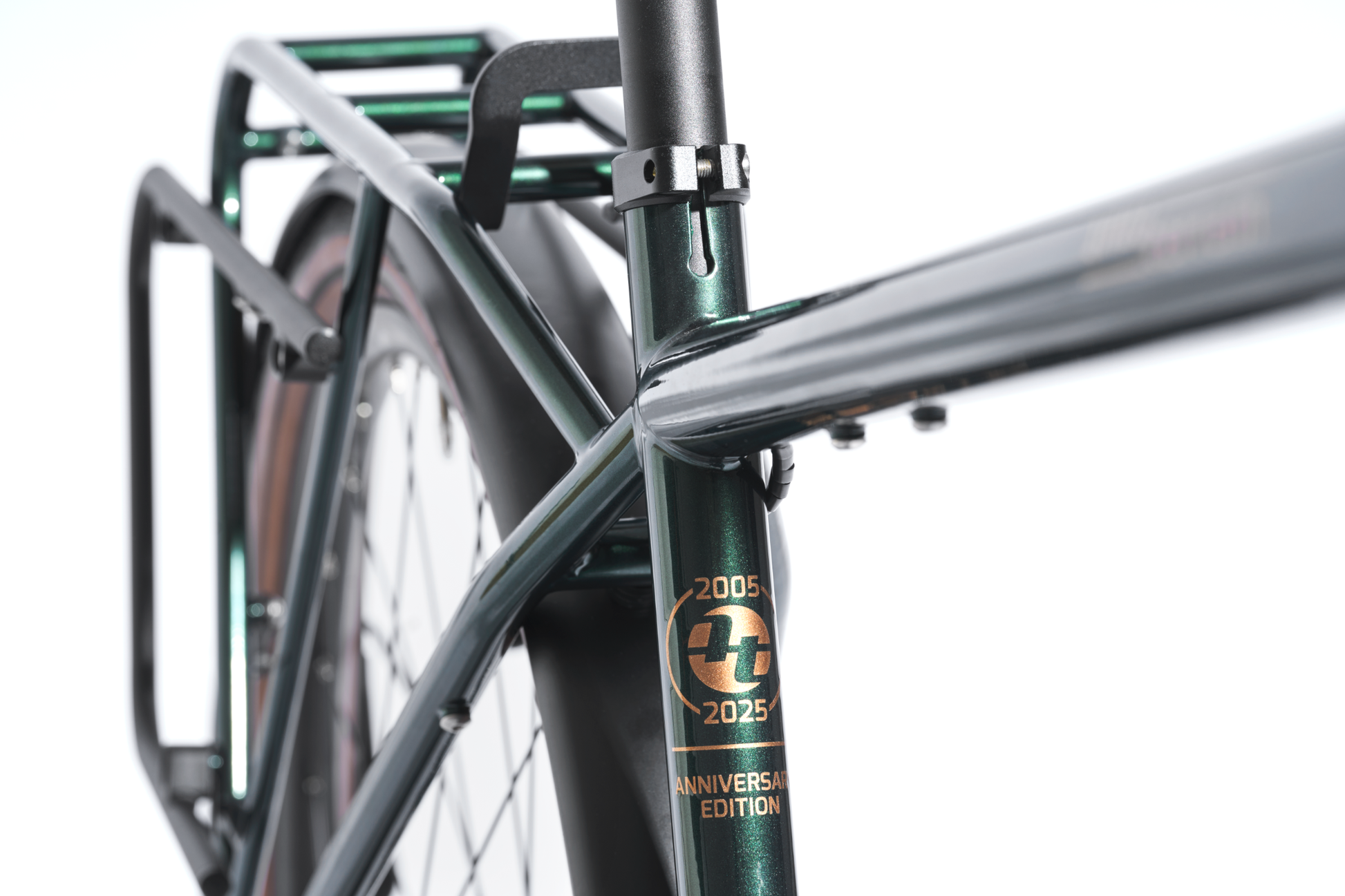

Luggage rack

Tout Terrain Expedition Rack II with EX Rails and QL3 Kit

Fork

Tout Terrain Expedition Fork II | Steel fork

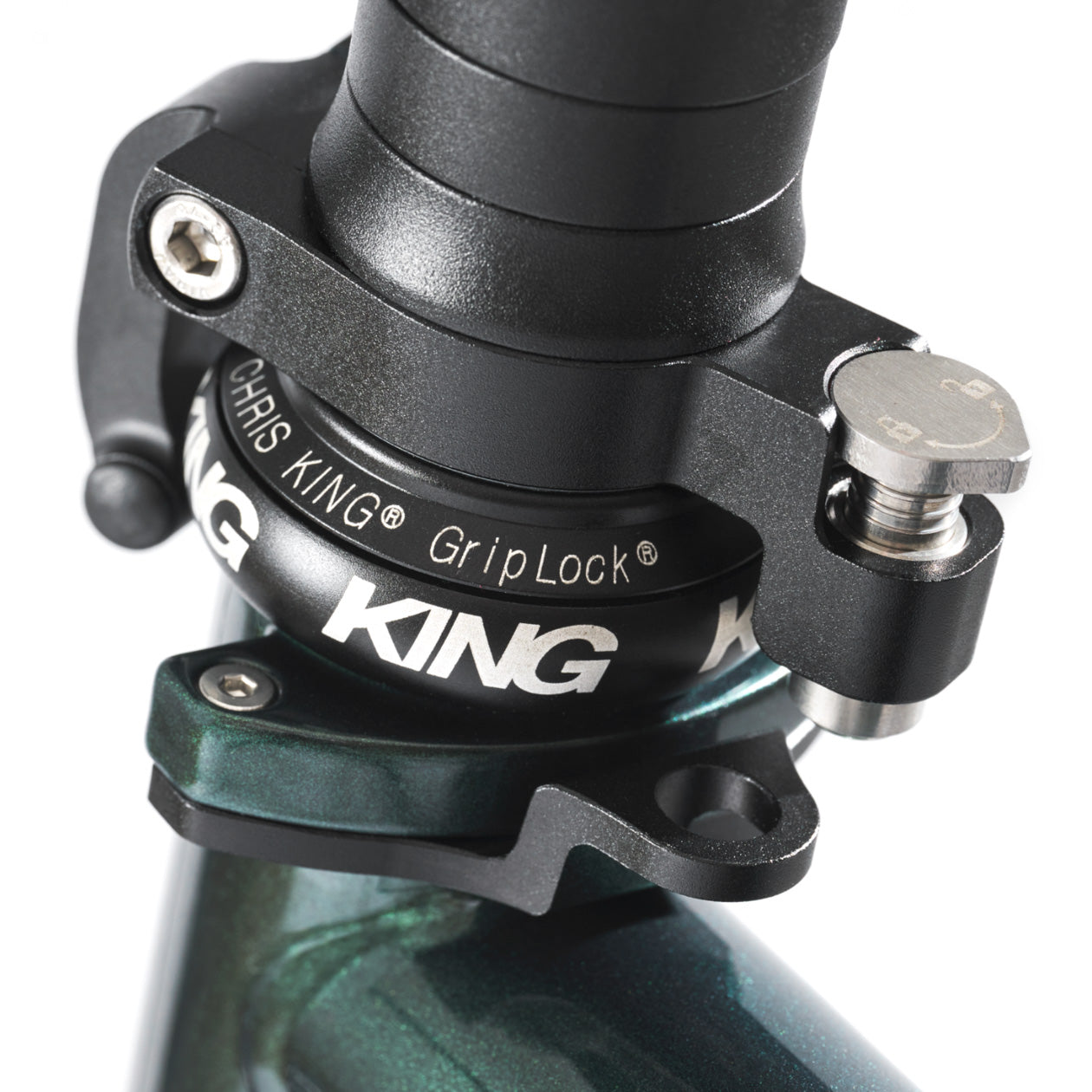

Steering stop

Tout Terrain Ergo-Stop-II Plus

Frame

Silkroad Xplore II steel frame | Tout Terrain Thermocrom tube set

Kickstand

Atran Velo side stand

Brake

Magura MT4 | hydraulic disc brake

Brake disc size (front/rear)

180mm/160mm

Rims

Ryde Andra 321

Bottom bracket

Pinion

Chain / Belt

Gates Carbon Drive CDX Centertrack belt

Pedals

Tout Terrain Touring II Pedal

Stem

Tout Terrain | 100mm | +/- 6°

Wheel size

29"

Axle dimension

Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle

Brake mount

Front: Flat Mount 160-180mm | Rear: IS2000

Model

Silk Road

Bottle holder mounting positions

4 (frame) + 2 (fork)

Fork type

Rigid fork (steel)

Luggage rack type

Frame-integrated

Grips

Brooks Ergonomic Leather Grips (Honey)

Rear wheel hub

Tout Terrain EX-R4 - 1S | Centerlock brake disc mount

Maximum weight allowed

180 kg (frame) / 40 kg (luggage rack)

Cassette

Gates Carbon Drive CDX | 32T

Crank

Pinion forged | CDX:SL 39T pulley | 175mm

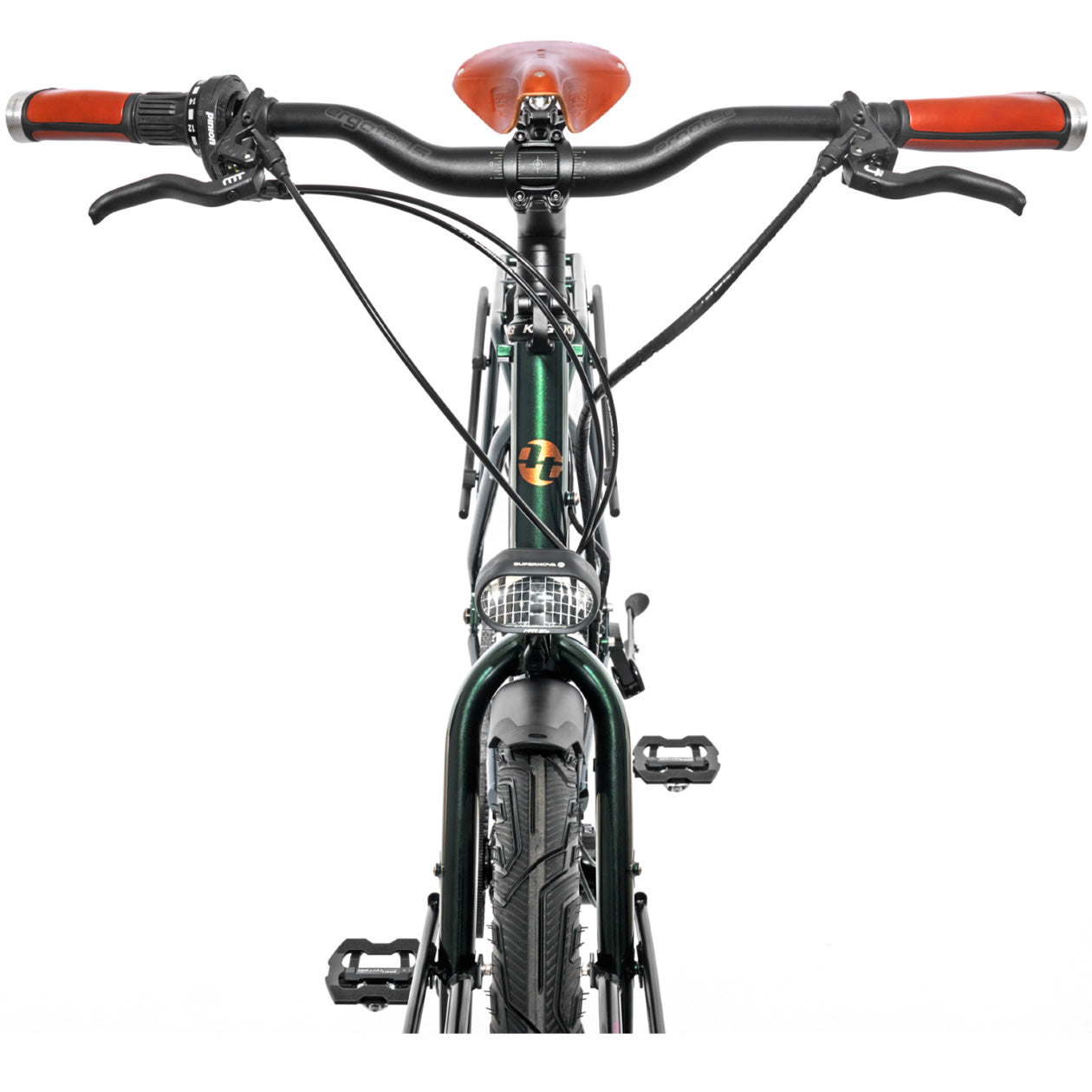

Handlebar

Tout Terrain Ergo Rise 30 | 700mm | 30mm Rise | 16° backsweep

Frame color

British Racing Green Metallic glossy

Tire clearance

28"/29" x 2.0" (50mm) incl. mudguard

Saddle

Brooks B17 (Honey)

Seat post

Tout Terrain | 27.2mm

Gearshift lever

Pinion twist grip

Mudguard

SKS Bluemels 60mm | XXL splash guard | matte black

Stand mount

KSA18 (18mm)

Frame lock compatible

Yes

Belt tensioning system

Tout Terrain TBA (swivel transmission bridge)

Configurable

no

Tires

Continental Pure Contact tanwall | 28"/29"x2.0" / 50-622

Drivetrain

Pinion P1.18 gearshift | Gates Carbon Drive belt drive

Lighting

Supernova M99 DY Pro & E3 Tail Light 2

Headset

Chris King NoThreadSet

Gearing

39/32 | 636%

Front wheel hub
SON 28 12 disc with SL self-contacting | Centerlock brake disc mount

Size Matters

To ensure you feel truly comfortable on your Tout Terrain bike, choosing the right frame size is crucial, in addition to the perfect equipment. The best way to test this is with a longer test ride. After purchasing, have your bike customized to your body size and riding position by your specialist dealer.

S M L XL
A SEAT TUBE LENGTH (mm) 460 510 560 610
A1 SEAT TUBE LENGTH (mm) 400 450 501 552
B TOP TUBE LENGTH (mm) 550 575 595 615
C HEAD TUBE LENGTH (mm) 160 175 205 225
D CHAINSTAY LENGTH (mm) 455 455 455 455
E WHEELBASE (mm) 1068 1077 1087 1095
F Bottom bracket drop (mm) 70 70 70 70
G HEAD TUBE ANGLE (*) 70 70.5 71 71.5
H SEAT TUBE ANGLE (*) 74 73 72.5 72
I STACK (mm) 597 614 644 665
J REACH (mm) 379 387 392 399
K STANDOVER HEIGHT (mm) 771 801 840 873
L FORK INSTALLATION HEIGHT (mm) 407 407 407 407
M FORK OFFSET (mm) 45 45 45 45
