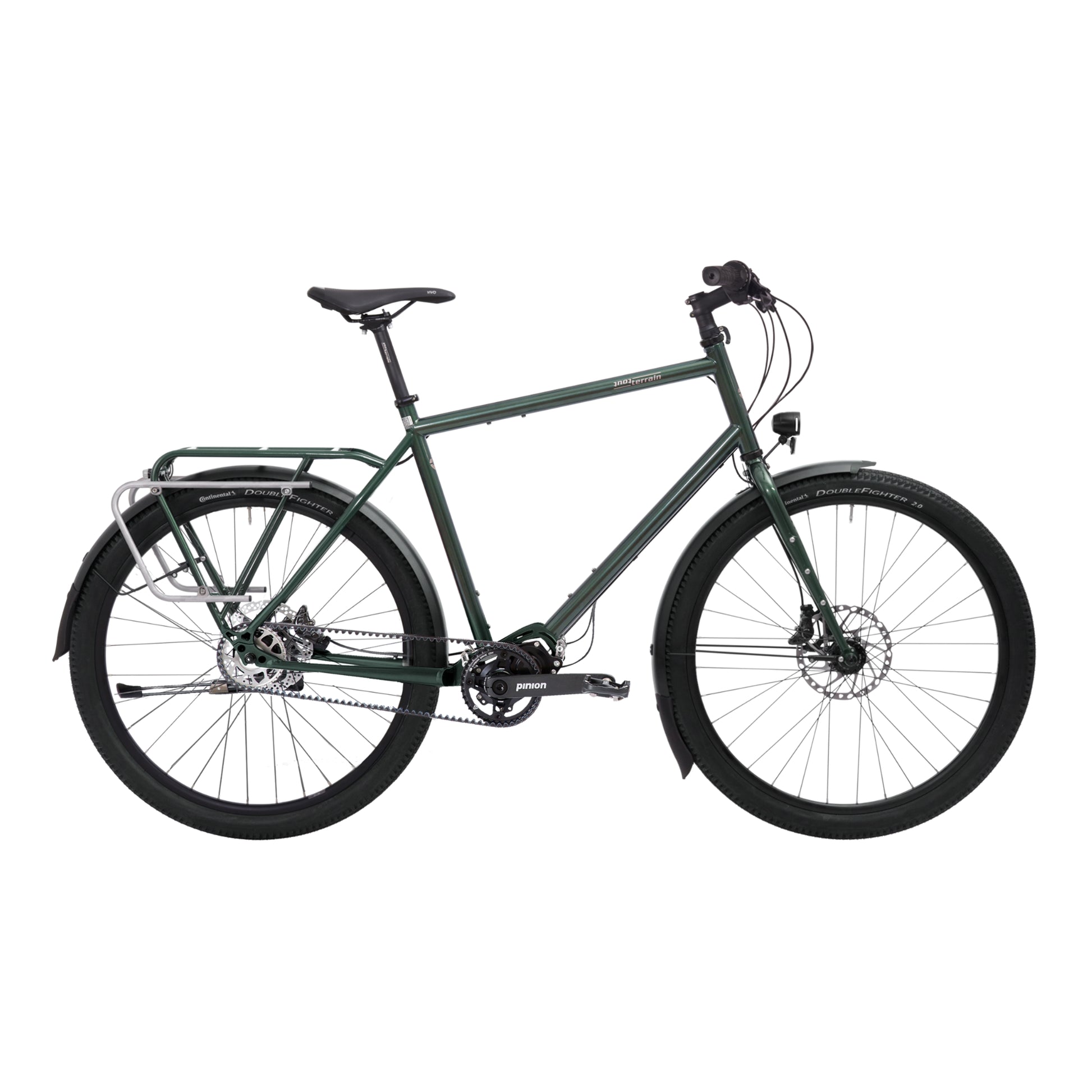

Silkroad Xplore II 275 Select 3.1
Silkroad Xplore II 275 Select 3.1
Couldn't load pickup availability
INDIVIDUAL TOURING BIKE FOR EPIC TOURS
Born with a healthy dose of adventure – the Silkroad II Xplore 275 is ready for more. The version of our expedition touring bike equipped with a Pinion gearbox impresses with a larger gear range, 180 kg capacity, and the proven reliability of a Gates Carbon Drive Belt System. The smooth-running 27.5" wheels increase efficiency, while integrated Expedition II luggage racks with EX-Rail compatibility expand capacity and simplify packing. There are also numerous options for customization: Customize your Silkroad II Xplore 275 with your desired component and accessory options together – epic adventures are guaranteed.
FRAME-Silkroad II steel frame | Tout Terrain Thermocrom tube set
FRAME SIZES-M, L, XL
FRAME COLOR-British Racing Green Metallic Shiny
FORK-Tout Terrain Expedition Fork II | Steel fork
AXIS DIMENSION-Front: 12/100mm thru axle | Rear: 12/142mm thru axle
BRAKE MOUNT-Front: IS2000 | Rear: IS2000
DRIVE-Pinion C1.12 gearshift | Gates Carbon Drive belt drive
CRANK-Pinion forged | CDX:SL 39Z pulley | 175mm
CASSETTE-Gates Carbon Drive CDX Centertrack | 32Z
TRANSLATION-39/32 |- 600%
CHAIN/BELT-Gates Carbon Drive CDX Centertrack belt
CHAIN/BELT TENSIONING SYSTEM-Tout Terrain TBA III (pivoting gear bridge)
SHIFT LEVER-Pinion twist handle
STEERING STOP-Tout Terrain Ergo-Stop II
HEADSET-Cane Creek 10 / Acros | EC34 / EC34
STEM-Tout Terrain | 100mm | +/- 6°
HANDLEBARS-Tout Terrain Ergo | 720mm
BRAKE-Magura MT4 | hydraulic disc brake
BRAKE DISCS-Magura 180mm/160mm
GRIPS-Tout Terrain Ergo screw grips
WHEEL SIZE-28"
FRONT WHEEL HUB-Shutter PL-7 hub dynamo | Centerlock brake disc mount
REAR WHEEL HUB-Tout Terrain EX-R2 - 1S | Centerlock brake disc mount
TIRES-Vittoria Revolution Tech | 27.5"x2.0" / 50-584
RIMS-Ryde Andra 321
MUDGUARD-SKS Bluemels 60mm | XXL splash guard | black Matt
LUGGAGE CARRIER-Tout Terrain Expedition Rack II with EX Rails
SEAT POST-Tout Terrain SP1-Zero | 27.2mm
SADDLE-WTB Volt Medium
LIGHTING-Busch + Müller IQ-XS & Line Small
STAND-Atran Velo side stand
PEDALS-Tout Terrain Urban Pedal
CAPACITY (FRAME/RACK)-180kg/40kg
BOTTLE HOLDER MOUNTING POSITIONS-4 (frame) + 2 (fork)
M | L | XL | ||
A | SEAT TUBE LENGTH (mm) | 510 | 560 | 610 |
A1 | SEAT TUBE LENGTH (mm) | 450 | 501 | 552 |
b | TOP TUBE LENGTH (mm) | 575 | 595 | 615 |
C | CONTROL TUBE LENGTH (mm) | 175 | 205 | 225 |
D | CHAIN STAY LENGTH (mm) | 455 | 455 | 455 |
E | WHEELBASE (mm) | 1077 | 1087 | 1095 |
F | BOTTOM BRACKET LOWERING (mm) | 70 | 70 | 70 |
G | HEAD TUBE ANGLE (*) | 70.5 | 71 | 71.5 |
H | SEAT TUBE ANGLE (*) | 73 | 72.5 | 72 |
I | STACK (mm) | 614 | 644 | 665 |
J | REACH (mm) | 387 | 392 | 399 |
K | OVERHANG HEIGHT (mm) | 801 | 840 | 873 |
L | FORK INSTALLATION HEIGHT (mm) | 407 | 407 | 407 |
M | FORK OFFSET (mm) | 45 | 45 |
45 |
