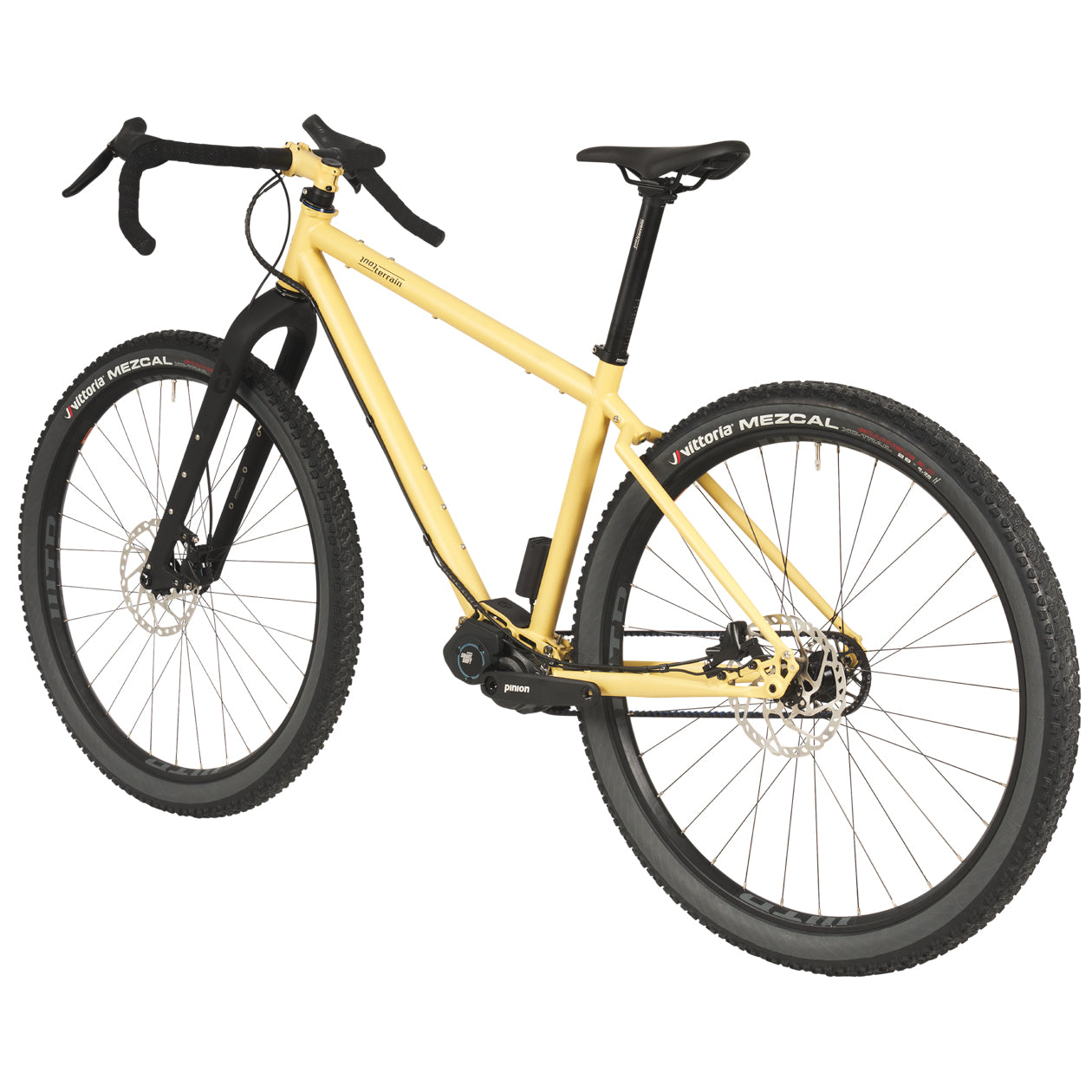

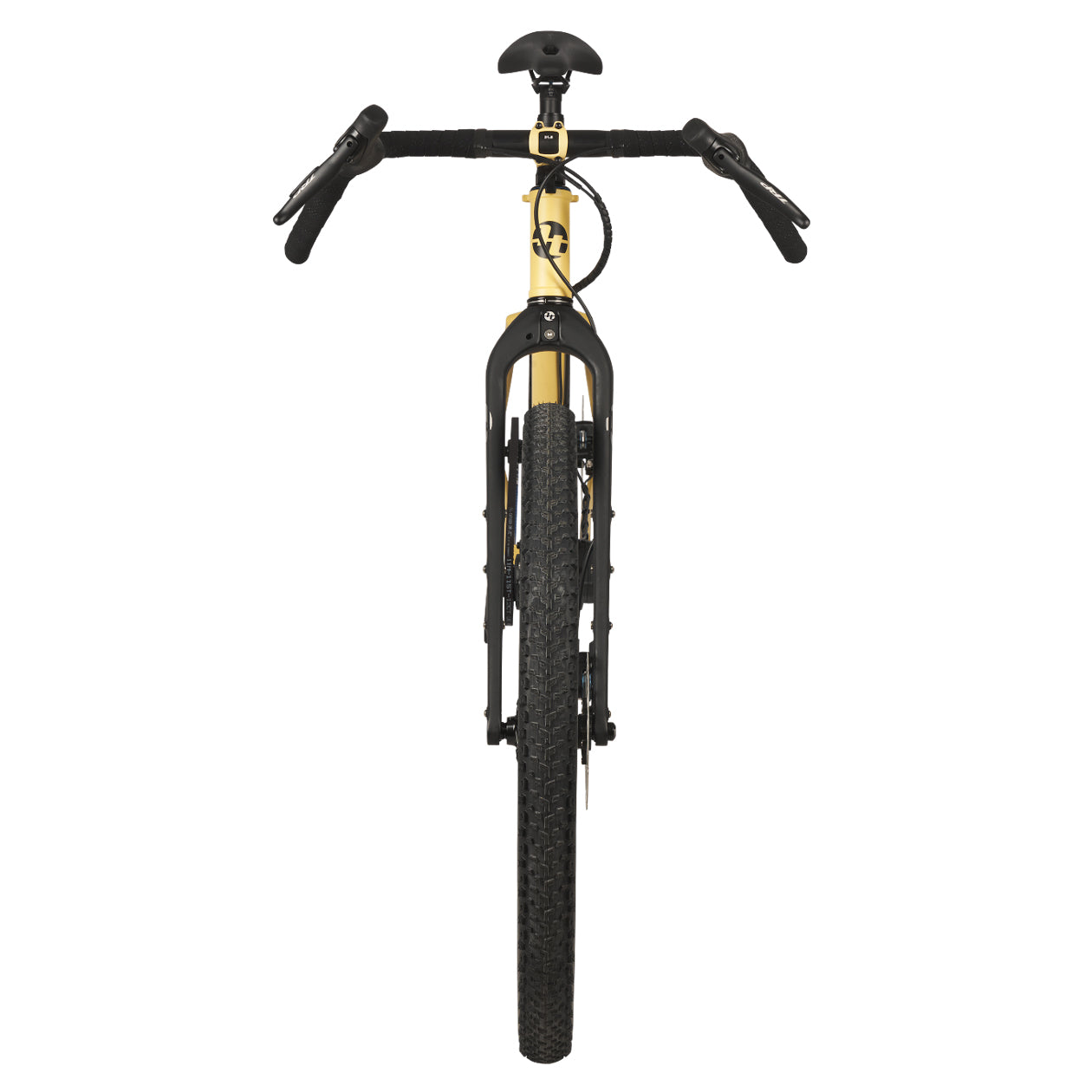

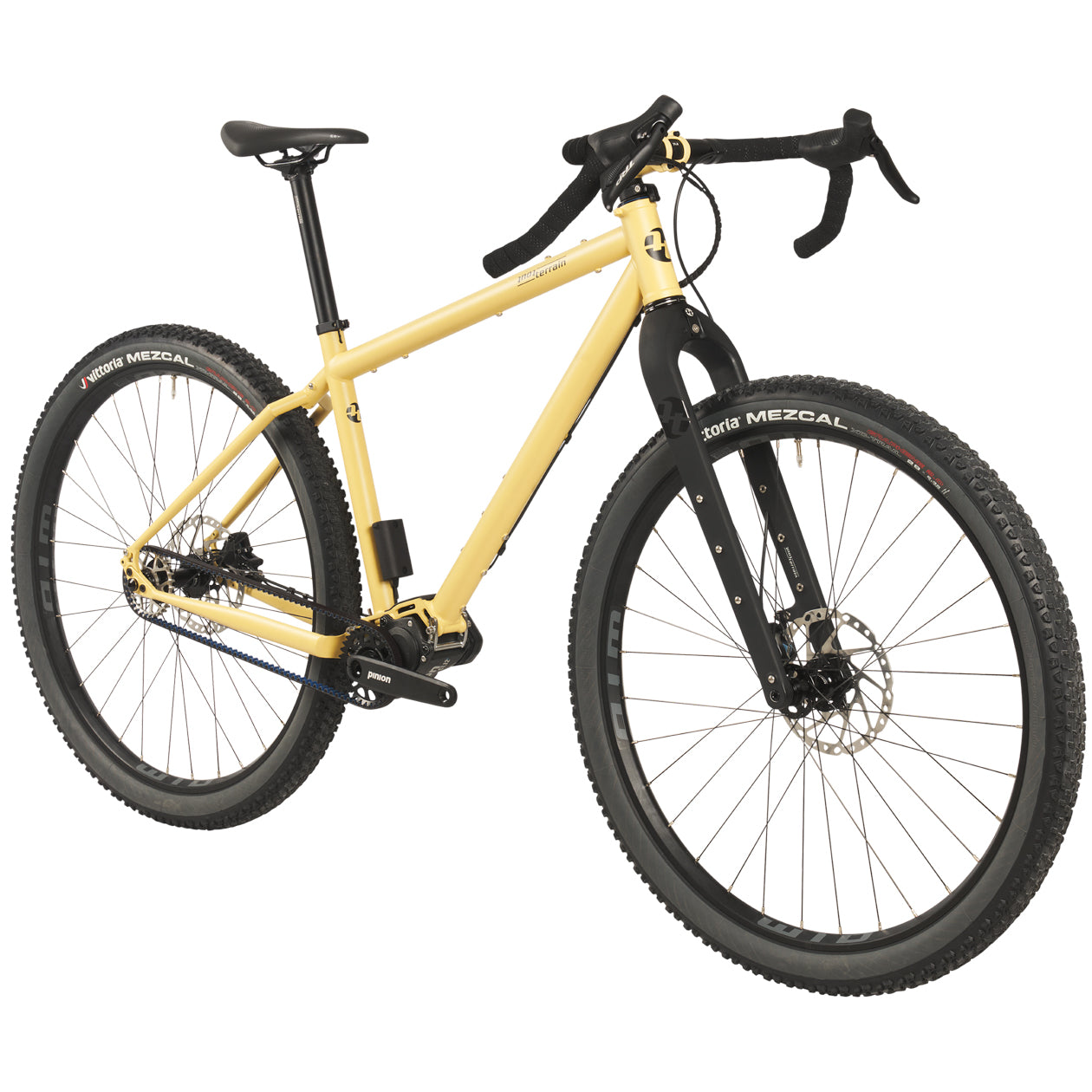

The new edition of our trail-ready 29er Outback in the GT version with drop handlebars. Optimized for endurance bikepacking and equipped with a carbon fork, smooth-shifting Pinion gearbox, multiple bottle and bag mounts, and a great deal of attention to detail.
| Lighting: | n/a |
|---|---|
| Rims: | WTB KOM tough i25 |
| Fork: | Tout Terrain Adventure Fork II | Carbon fork |
| Handles: | Tout Terrain Ergo screw grips |
| Rear wheel hub: | Tout Terrain EX-R2 - 1S | Centerlock brake disc mount |
| Bottom bracket: | Pinion |
| Steering stop: | Tout Terrain Ergo-Stop II |

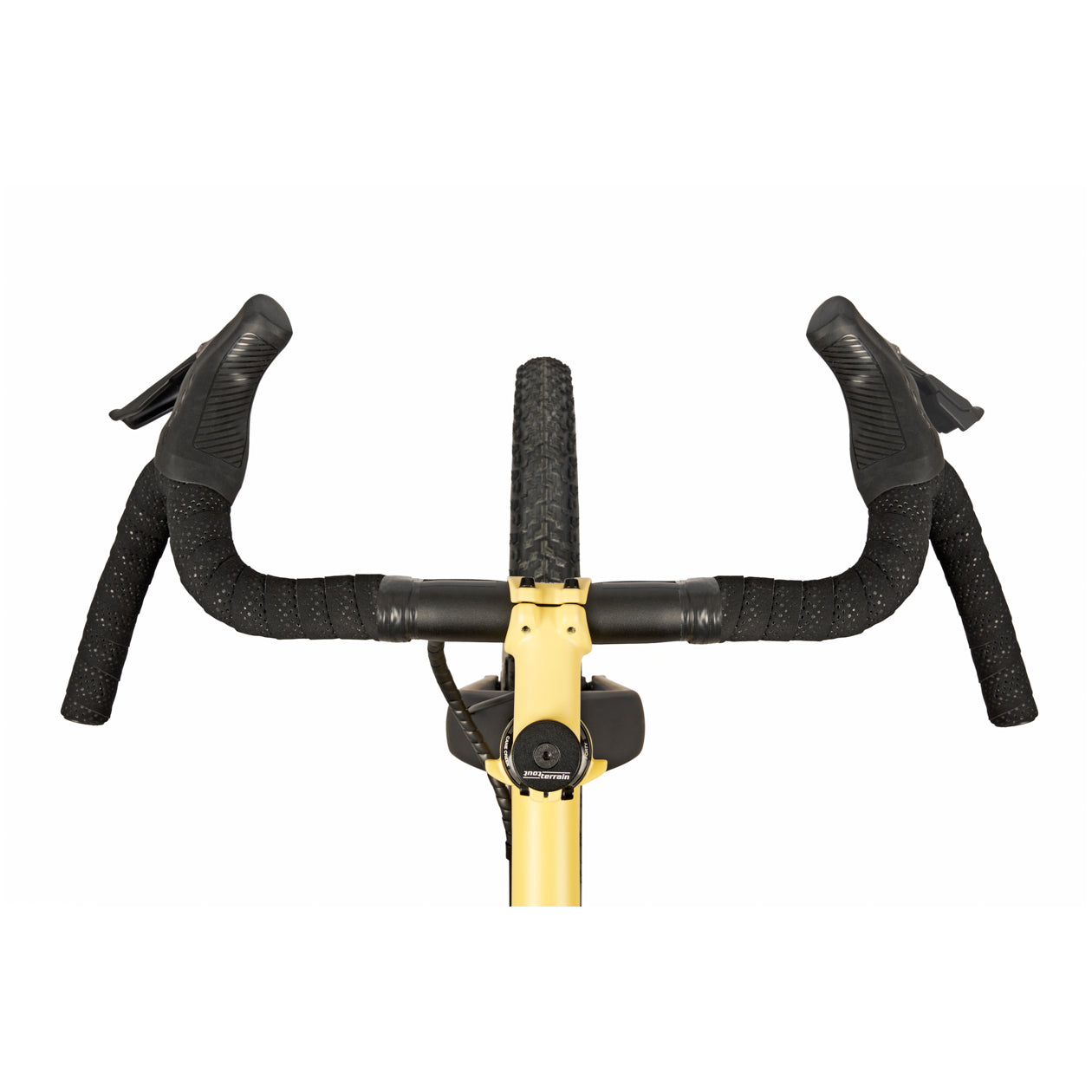

| Handlebars: | Tout Terrain Longhorn | 780mm | 21° flare |
| Tires: | Vittoria Mezcal | 29"x2.35" / 60-622 |
| Saddle: | WTB Volt Medium |
| Seatpost: | Tout Terrain | 30.9mm |
| Mudguard: | n/a |
| Tax rate: | Cane Creek 40 | ZS44 / EC44 |
| Stand: | Retrofittable |
| Stem: | Tout Terrain | 70mm | +/- 6° |
| Front wheel hub: | Tout Terrain EX-F1 Boost | Centerlock brake disc mount |

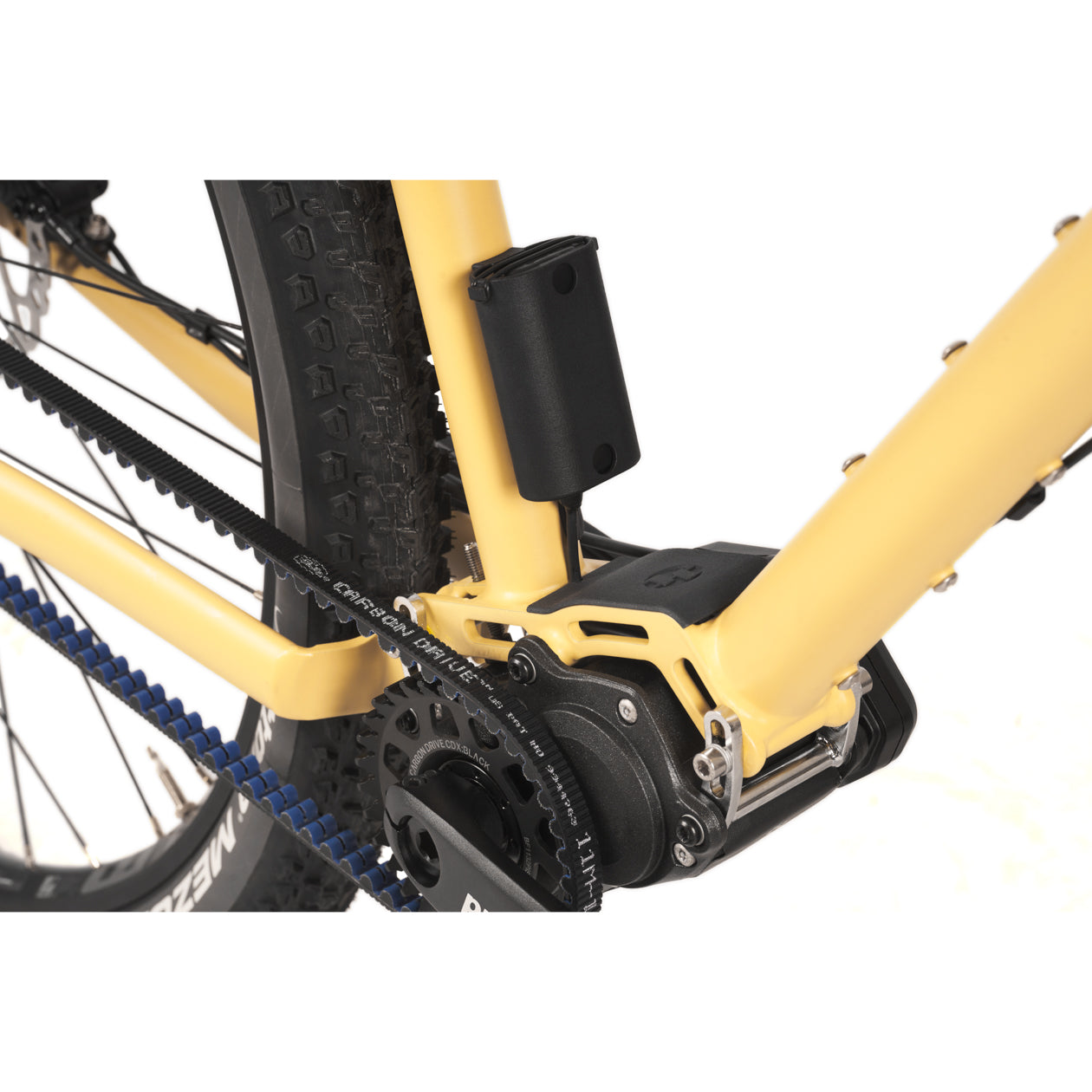

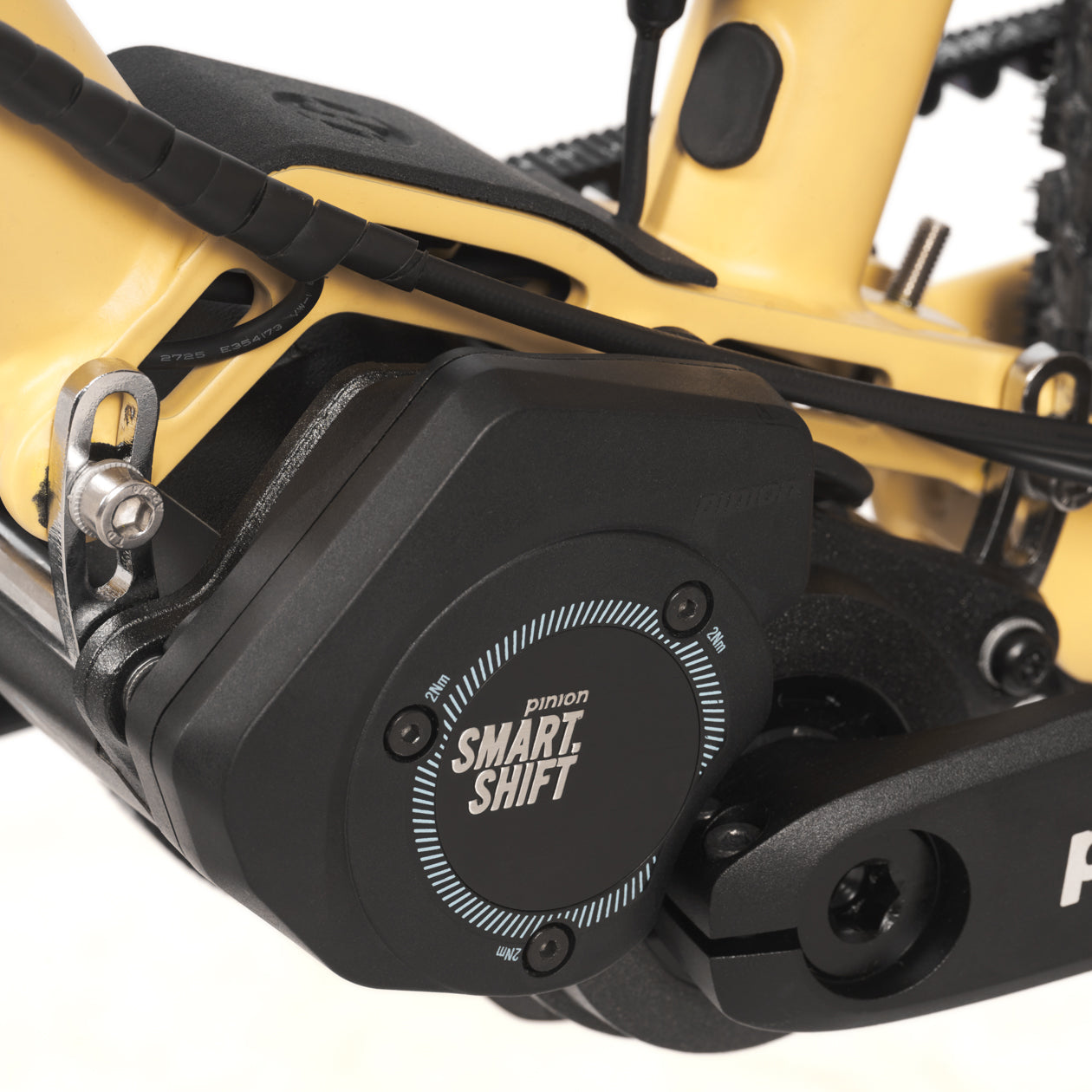

| Drive: | Pinion C1.12i Smart.Shift gearbox | Gates Carbon Drive belt drive |
| Size: | S, M, L, XL |

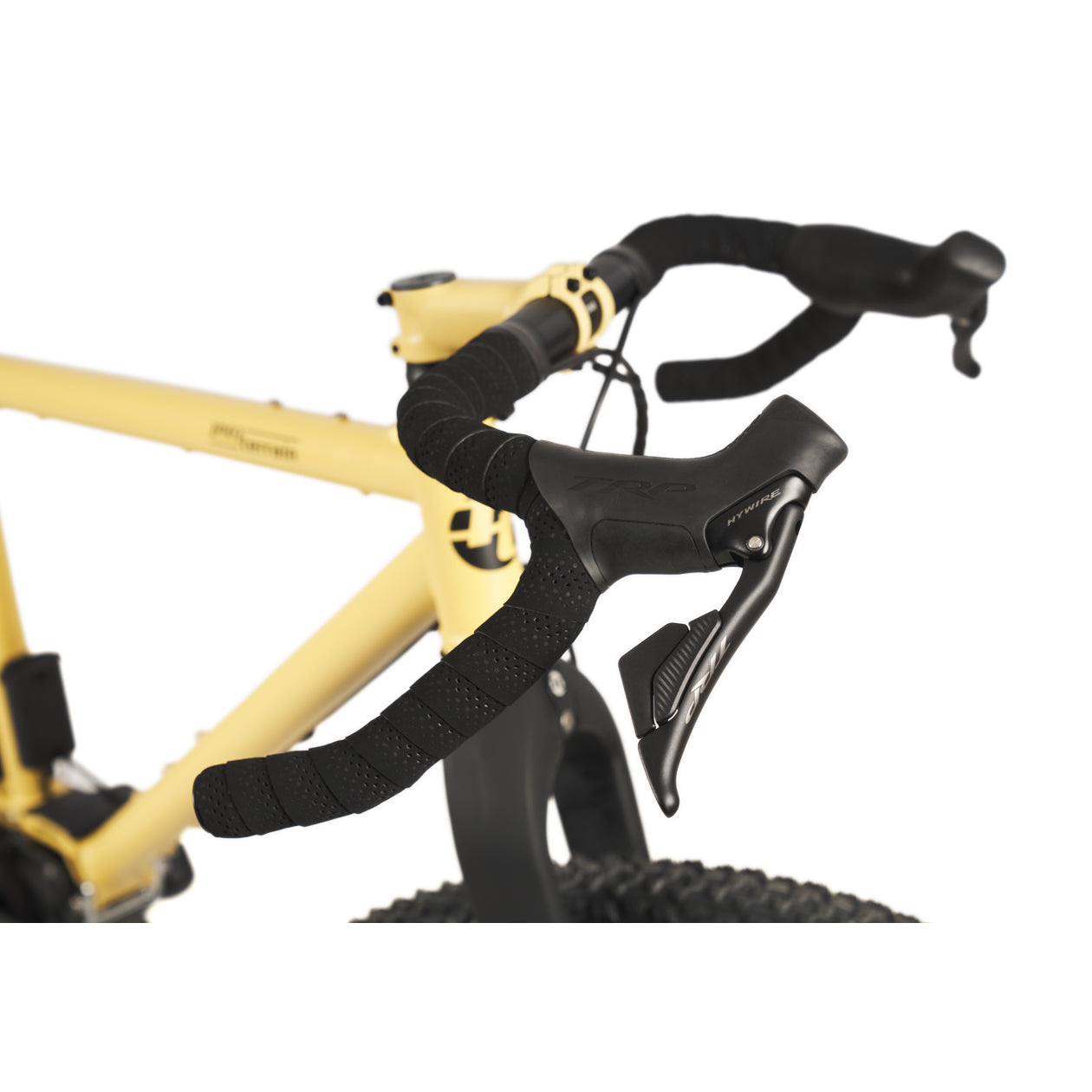

| Brake: | TRP Hywire | hydraulic disc brake |
| Model: | Outback |
| Frame: | Outback Xplore steel frame | Tout Terrain Stratocrom tubing |
| Maximum weight allowed: | 130 kg (frame) / 15 kg front, 26 kg rear (luggage rack) |
| Axle dimensions: | Front: 15/110mm thru axle | Rear: 12/142mm thru axle |
| Frame color: | Tuareg matt |
| Brake mount: | Front: Post Mount 180-203mm | Rear: IS2000 |
| Brake disc size (front/rear): | 180mm/160mm |
| Bottle holder mounting positions: | 4 (frame) + 2 (fork) |
| Wheel size: | 29" |
| Weight: | from 14.1 kg |
| Luggage rack: | Retrofittable |
| Translation: | 32/30 | 600% |
| Gearshift lever: | Pinion TE-1 |
| Crank: | Pinion Boost forged | CDX 32T pulley | 170mm |
| Cassette: | Gates Carbon Drive CDX | 30T |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 420 | 470 | 500 | 530 |
| A1 | SEAT TUBE LENGTH (mm) | 360 | 410 | 440 | 470 |
| B | TOP TUBE LENGTH (mm) | 575 | 595 | 615 | 640 |
| C | HEAD TUBE LENGTH (mm) | 120 | 125 | 130 | 135 |
| D | CHAINSTAY LENGTH (mm) | 462 | 462 | 462 | 462 |
| E | WHEELBASE (mm) | 1132 | 1153 | 1173 | 1199 |
| F | BOTTOM BRACKET DROP (mm) | 65 | 65 | 65 | 65 |
| G | HEAD TUBE ANGLE (*) | 68 | 68 | 68 | 68 |
| H | SEAT TUBE ANGLE (*) | 74 | 74 | 74 | 74 |
| I | STACK (mm) | 625 | 629 | 634 | 639 |
| J | REACH (mm) | 394 | 412 | 431 | 455 |
| K | STAND OVER CLEARANCE (mm) | 790 | 816 | 832 | 848 |
| L | FORK MOUNTING HEIGHT (mm) | 495 | 495 | 495 | 495 |
| M | FORK OFFSET (mm) | 51 | 51 | 51 | 51 |
