Tout Terrain

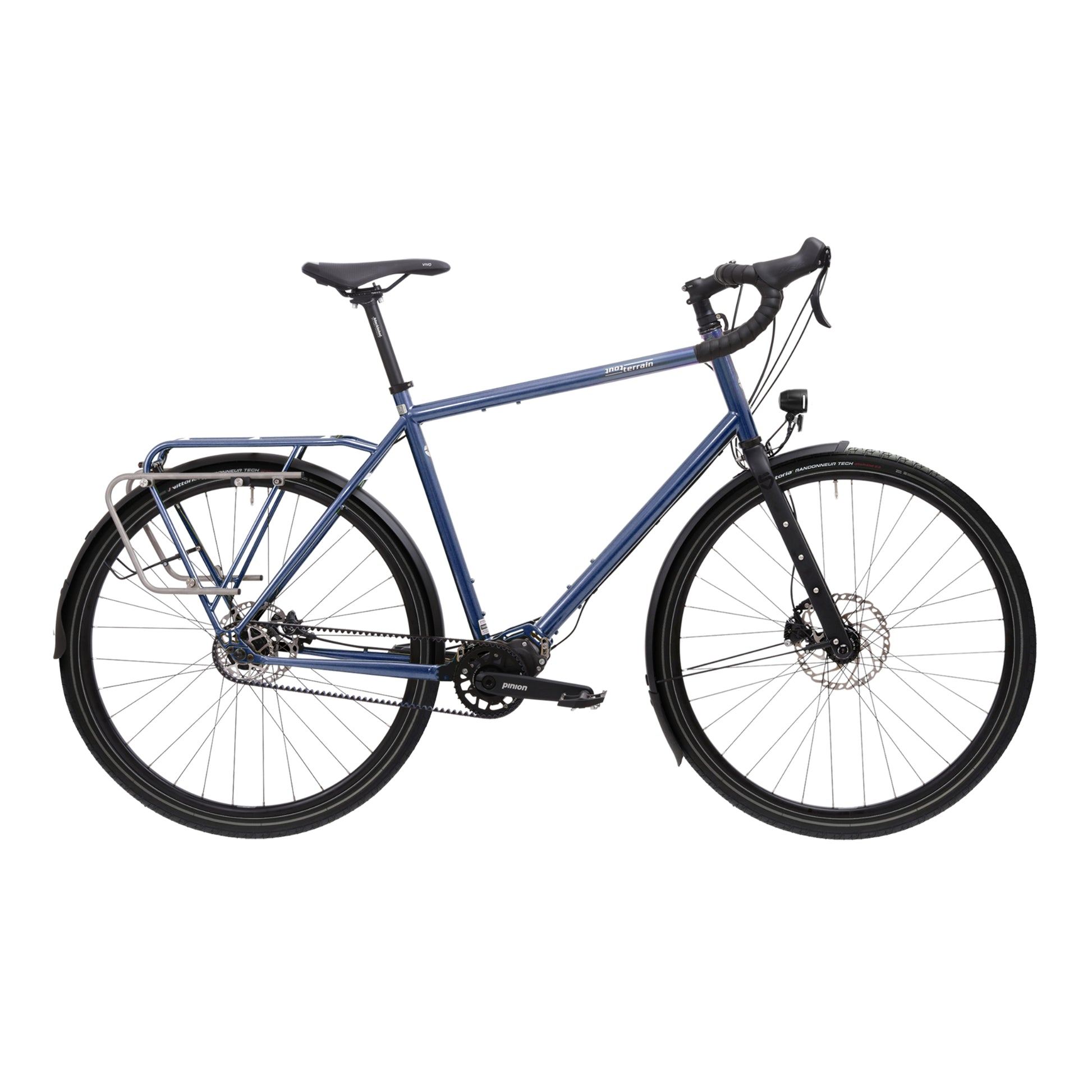

Blueridge Xplore GT Select 3.1
Blueridge Xplore GT Select 3.1
Regular price
$6,378.00 USD
Regular price
Sale price
$6,378.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BLUERIDGE XPLORE GT
Road trips can be long. But that doesn't mean they have to be slow. As a dropbar version of our fastest touring bike, the Blueridge Xplore GT means speed. Efficient 28" wheels tackle tough climbs with ease, while powerful disc brakes ensure deceleration on fast descents. The equipment also includes a Pinion gearbox for smooth, maintenance-free gear changes and an extended range of gear ratios. Choose our lightweight Thermocrom steel frame in your favorite color, load it up Integrated Expedition II luggage rack – and off you go!
FRAME-Blueridge Xplore steel frame | Tout Terrain Thermocrom tube set
FRAME SIZES-M, L, XL
FRAME COLOR-Atlantico Metallic Shiny
FORK-Tout Terrain Touring Fork III | Carbon fork
AXIS DIMENSION-Front: 12/100mm thru axle | Rear: 12/142mm thru axle
BRAKE MOUNT-Front: Flat Mount 160-180mm | Rear: IS2000
DRIVE-Pinion C1.12 gearshift | Gates Carbon Drive belt drive
CRANK-Pinion forged | CDX:SL 39Z pulley | 175mm
REAR COG-Gates Carbon Drive CDX Centertrack | 32Z
GEARING-39/32 | 600%
GEARBOX-Pinion
CHAIN/BELT-Gates Carbon Drive CDX Centertrack belt
CHAIN/BELT TENSIONING SYSTEM-Tout Terrain TBA III (pivoting gear bridge)
SHIFT LEVER-Tout Terrain Shift:R Road for Pinion
STEERING STOP-Tout Terrain Ergo-Stop II
HEADSET-Cane Creek 10 / Acros | EC34 / EC34
STEM-Tout Terrain | 70mm | +/- 6°
HANDLEBARS-Tout Terrain Gravel Racing Handlebar | 440mm | 16° flare
BRAKE-TRP Hylex | hydraulic disc brake
BRAKE DISC-Jagwire 180/160mm | Center lock
HANDLEBAR Tape-Fizik Microtex Performance handlebar tape
WHEEL SIZE-28"
FRONT WHEEL HUB-Shutter PL-7 hub dynamo | Centerlock brake disc mount
REAR WHEEL HUB-Tout Terrain EX-R2 - 1S | Centerlock brake disc mount
TIRES-Vittoria Randonneur Tech | 700Cx42mm / 42-622
RIMS-Ryde Andra 321
MUDGUARD-SKS Bluemels 60mm | XXL splash guard | black Matt
LUGGAGE CARRIER-Tout Terrain Expedition Rack II with EX Rails
SEAT POST-Tout Terrain SP1-Zero | 27.2mm
SADDLE-WTB Volt Medium
LIGHTING-Busch + Müller IQ-XS & Line Small
KICKSTAND-Atran Velo side stand
PEDALSTout Terrain Urban Pedal
CAPACITY -(FRAME/RACK)180kg/40kg
BOTTLE HOLDER MOUNTING POSITIONS-4 (frame) + 2 (fork)
![](https://cdn.shopify.com/s/files/1/0831/8618/8582/files/GEO_Charge_V5_small_Pinion_W_Rack.jpg?v=1715102813)
M | L | XL | ||
A | SEAT TUBE LENGTH (mm) | 510 | 560 | 610 |
A1 | SEAT TUBE LENGTH (mm) | 450 | 501 | 552 |
b | TOP TUBE LENGTH (mm) | 575 | 595 | 615 |
C | CONTROL TUBE LENGTH (mm) | 175 | 205 | 225 |
D | CHAIN STAY LENGTH (mm) | 455 | 455 | 455 |
E | WHEELBASE (mm) | 1077 | 1087 | 1095 |
F | BOTTOM BRACKET LOWERING (mm) | 70 | 70 | 70 |
G | HEAD TUBE ANGLE (*) | 70.5 | 71 | 71.5 |
H | SEAT TUBE ANGLE (*) | 73 | 72.5 | 72 |
I | STACK (mm) | 614 | 644 | 665 |
J | REACH (mm) | 387 | 392 | 399 |
K | OVERHANG HEIGHT (mm) | 808 | 846 | 879 |
L | FORK INSTALLATION HEIGHT (mm) | 407 | 407 | 407 |
M | FORK OFFSET (mm) | 45 | 45 | 45 |
